CCTV camera sets 6x bullet camera with 20m IR 1080P and AHD DVR

CCTV camera sets includes DVR hybrid recorder AHD 1080P/960H/720P and 6x camera 1080P with 20m IR night vision. CCTV surveillance system is easy to use and  includes 6 AHD 1080P cameras and hybrid DVR recorder AHD (possible to connect 2 more cameras) 1080P/960H/720P, which will record in Full 1080p in real time. To use the system you need to buy HDD (hard disk 1 - 4TB) adapted for a 24 hour operation, which can be bought as an optional accessory.

8-channel DVR IQCCTV hybrid recorder (HD1080P, HD720P, 960H) - offers the most modern digital recording via a standard cables. The recorder can record camera image either from 1080P/720P/960H cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. The recorder also has 4 audio inputs and 1 output if you wish to add a sound.

DVR unit can record all 8 cameras simultaneously at 15fps in Full HD 1080P or at 25fps in 720P or 960H resolution. DVR provides Full HD 1080P output to a monitor using VGA or HDMI. Once the set is connected to a network (internet) you can easily view and control it from anywhere in the world using a smartphone (Android), tablets, PC and Mac (iOS) computers.

Application "XIQ Mobile CMS" for tablets and smartphones you can download for free in the app store and using the "Snap Shots" function you can set up e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.

Another new feature is the option to automatically send video/photo files via the app Dropbox online service for sharing and backing up of files, either at the motion detection, or at the set intervals. The service provides additional protection for recorded files.

You do not need to have a fixed IP address or to log in to the DDNS service. For those who do not want to use direct IP connection is also available HD CCTV feature that is added to the new series of DVR. It gives you the ability to remotely connect via a dynamic IP address. The application also allows multi-camera viewing and the ability to play recorded images from DVR.

Security camera AHD HD1080p IR LED + anti vandal, is security camera with a diameter of 3,6 mm lens and IR night vision distance of 20 meters. The camera is equipped with wide angle lens that scans at an angle of 78 °. The camera has a mini joystick, which allows you to change camera resolution (1080P, 960H) as well as the advanced camera settings using the LCD monitor.

The camera also has night vision IR up to distance of 20 meters (it is activated automatically upon detection of lower light) that allows continuous monitoring even in complete darkness. After dark or in low light conditions, the camera automatically switches from the color scanning to black-white mode. Automatic IR filter produces quality color images during the day and clear images at night in combination with IR LED illumination.

It is ideal for indoor and outdoor use (IP66) and has a compact design. Can be installed on the wall using a console with a spheric joint with which the camera can be set to different angles.

AHD systems 1080p

The latest technology of camera system that comes as the successor of analog systems, but in high-resolution 1280x720px and 1920x1080px. That´s why it has a unique technology that enables video transmission through coaxial cable (up to 500m).

 Simple infrastructure
 Analog connection and conduction
 Signal transmission through cable up to 500m
 More technologies of signal transmission
 Digital recording on hard disks
 Possibility of remote control (LAN)

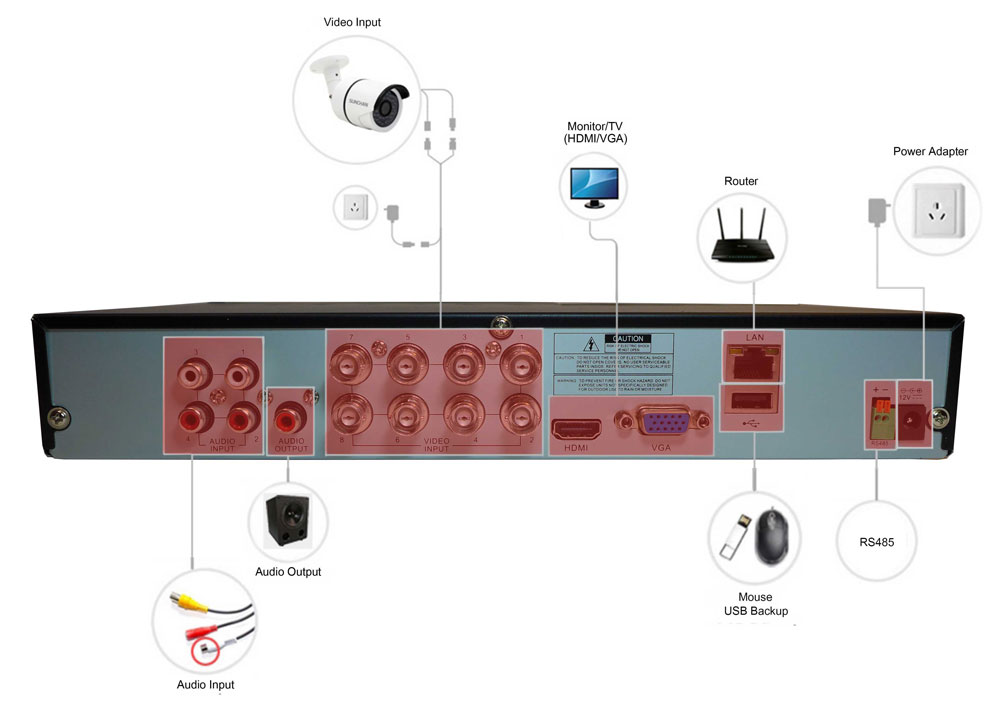

Technical specifications DVR:

• ModelIQR1080D8
• Video CompressionH.264
• Video systemPAL / NTSC
• Video input/output8 Ch. inputs, 1 VGA, 1 HDMI
• Spot outputNo
• Audio input/output4 Ch. inputs, 1 Ch. output (RCA)
• Display resolutionPAL: 960x576 / 1280x720 / 1920x1080 @ 25fps
• Display functionSingle, Quad, SEQ
• Recording ResolutionPAL: 960x576 (960H), 1280x720 (720p), 1920x1080 (1080p)
• Recording speedPAL: 960H Mode / Mode 720p / 1080p Mode: 25fps
• Recording ModeContinuous / Manual / Motion Detection
• Playback channel 1/8 Ch.
• Frame ratePAL: 960H Mode / Mode 720P / 1080P Mode: 25fps
• DVD-RWNo
• Sensor and Alarm I/ONo
• IR Extender PortNo
• NetworkLAN, DHCP, Dynamic IP and DDNS
• HDD Interface1 SATA HDD up to 6 TB
• Multiplex operationLive view, recording, playback, backup and network
• USB2 x USB (for mouse and backup/upgrade)
• PTZ controlYes
• Mobile SurveillanceXIQ CMS - Android and iOS
• CMS SoftwareYes
• Web browserInternet Explorer, Safari, Chrome, Firefox
• VGA800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
• HDMI 1080p
• Power supply12V DC
• On/Off SwitchNo
• Remote controlYes
• Dimensions (WxHxD)300x53x227

The camera parameters:

• ModelIQC1080B
• TypeSecurity Camera
• Resolution1080P / HD960H
• Sensor type 1/2,7 "CMOS Sensor Mega Pixel
• DSP TypeIQ 1080P DSP
• Minimum illumination0.1 Lux (0 Lux IR On)
• DSP FunctionAutomatic Backlight Compensation
• Auto white balance
• Auto electronic shutter
• Night Vision20m IR Night Vision
• Lens TypeFixed
• Lens Size3,6mm
• Angle78 °
• Operating voltage12V DC
• Video OutputBNC socket
• Audio OutputNo
• Weather-resistantYes (IP66)
• Resistant to damage (Anti vandal)yes
• The mounting methodwall or ceiling
• Dimensions (WHD in mm)135x55x135
• Weight (kg)0,40

Contents:

6x Camera IQC1080B
6x 20 m cable for video/audio/power
6x Installation material (screws, dowels)
2x Power adapter of camera 12V 4000 mA
2x Splitter for 3 cameras

1x DVR recorder IQR1080D8
1x Power Adapter DVR
1x USB mouse
1x Remote Control
1x Installation CD
1x Manual

If you are interested in an individual solution of camera system, the selection of cameras and DVR respectively NVR and other accessories according to your needs, please contact us by email at: info@efeel.eu
