Working SET with laser for forklift - 1080P wifi camera with IP68 + battery 2600 mAh + 7″ AHD monitor

SKU: 19-177 I have a question
Manufacturer PROFIO
Products availability in stock
Products are in stock, ready to send.
Yes! We Ship To US
Price excl. VAT U$ 595.84
Price incl. VAT U$ 715.00
- +

Product description Working SET with laser for forklift - 1080P wifi camera with IP68 + battery 2600 mAh + 7″ AHD monitor

Working laser SET for forklift and other machines - FULL HD 1080P 2,4GHz Wifi IP68 camera + 2600 mAh battery + 7″ AHD monitor. Safety camera system for forklift trucks with high resolution. This wireless camera system includes a 7" LCD display with the possibility of recording on an inserted SD card (support up to 256GB), a rechargeable battery and a FULL HD wireless camera. This camera set from PROFIO ELECTRONICS for forklift trucks is extremely easy to install and operate.

It is possible to add 3 additional compatible wifi cameras (without laser) to the set, the set supports max. 1 camera with laser - to choose from our offer. And there is also the possibility of exchanging the delivered laser camera for another model of laser camera.

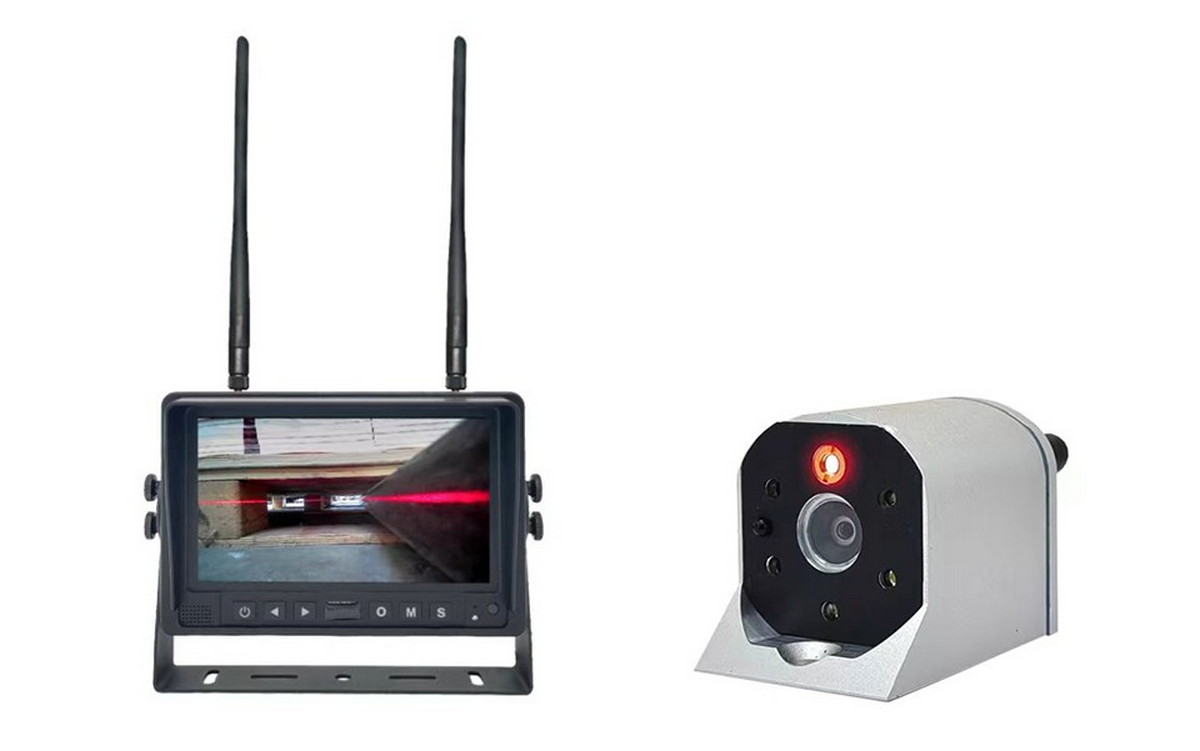

Safety camera set for forklift with laser + 5x LED white light

camera set for forklift with laser

It can be used in the front, rear, or anywhere around the forklift where visibility is limited. The 2600mAh battery with magnetic holder can be quickly installed to support the wireless camera. This forklift security camera is designed with premium durable stainless steel material. Mount this camera on your tractor, or forklift or other equipment. It is resistant to vibrations and shocks. The forklift camera monitoring system offers an ideal vision solution for all types of forklifts and assists forklift operators in maneuvering.

Smart laser system for forklift with integrated camera with red laser beam.

set for forklift

The camera is mounted on the forks carrier and has a built-in wireless transmitter. To connect to a monitor, you don't need to pull the cable all the way to the front of the forklift to watch video from the camera. Save half the installation time compared to conventional cable camera systems for forklifts. You can connect the camera to an external battery, so it is a wireless and portable solution.

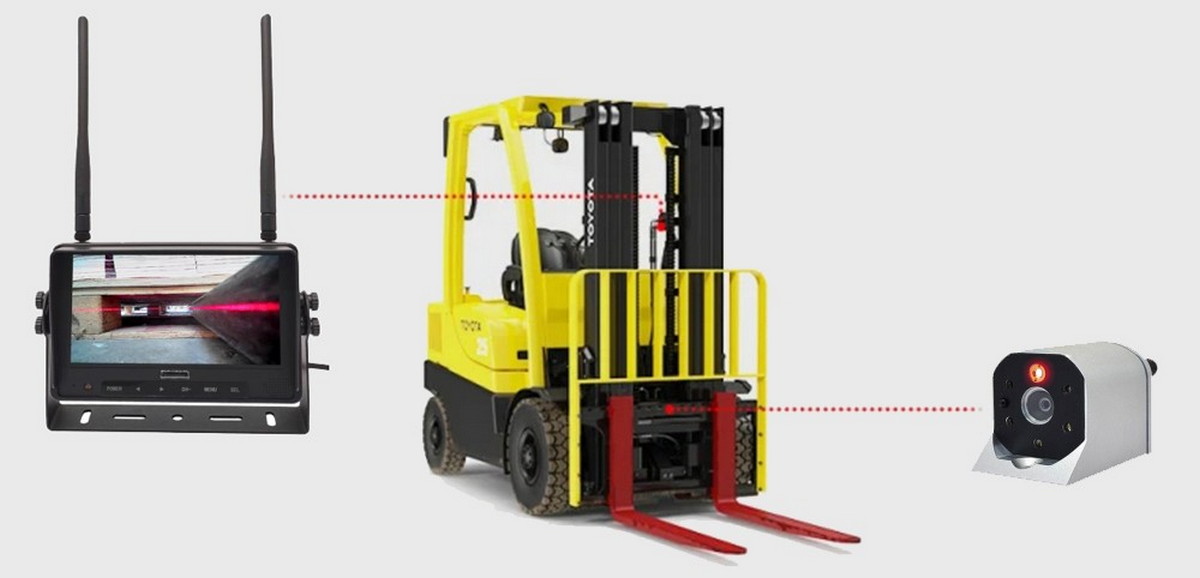

Installation of a laser camera system (red line) on a forklift

laser system with a camera for a forklift truck

monitor with laser camera forklift truckforklift laser camera system

The set includes a portable magnetic rechargeable battery with a capacity of 2600 mAh and is supported by a large magnetic base that allows users to easily attach the box anywhere it fits. The battery is durable with 6G shockproof and waterproof IP66. The working time is approximately up to 13 hours. Supports Quick Charge 3.0 - fast charging in just 3,5 hours!

laser camera system forklift truck

You have a robust high-resolution monitor at your disposal. It provides the cleanest view and is even durable even in the coldest conditions. This monitor has a built-in 2,4 GHz digital wireless transmitter. The security set works in combination with a laser and a wireless camera.

safety set of forklifts, high-lift camera, laser


Product features:
The ABS monitor cover resists high temperature.
7" color IPS LCD with high resolution
1080p FULL HD camera
Communication technology of 24-bit encryption with a pair code to improve the transmission of audio and video signals
Support 4-channel simultaneous video recording and playback
Display mode 4 cameras at once, 2 cameras at once, 1 camera (required to purchase only compatible cameras from our e-shop)
Support: memory card 256GB

Wireless camera for forklift with IP68 protection
Simple installation and operation
1/2,9" CMOS, 1080P FULL HD image transmission
Waterproof cover, support IP68K waterproof.
Supports laser positioning function
White LED lights 5 pcs
The set contains a portable magnetic rechargeable battery of 2600 mAh

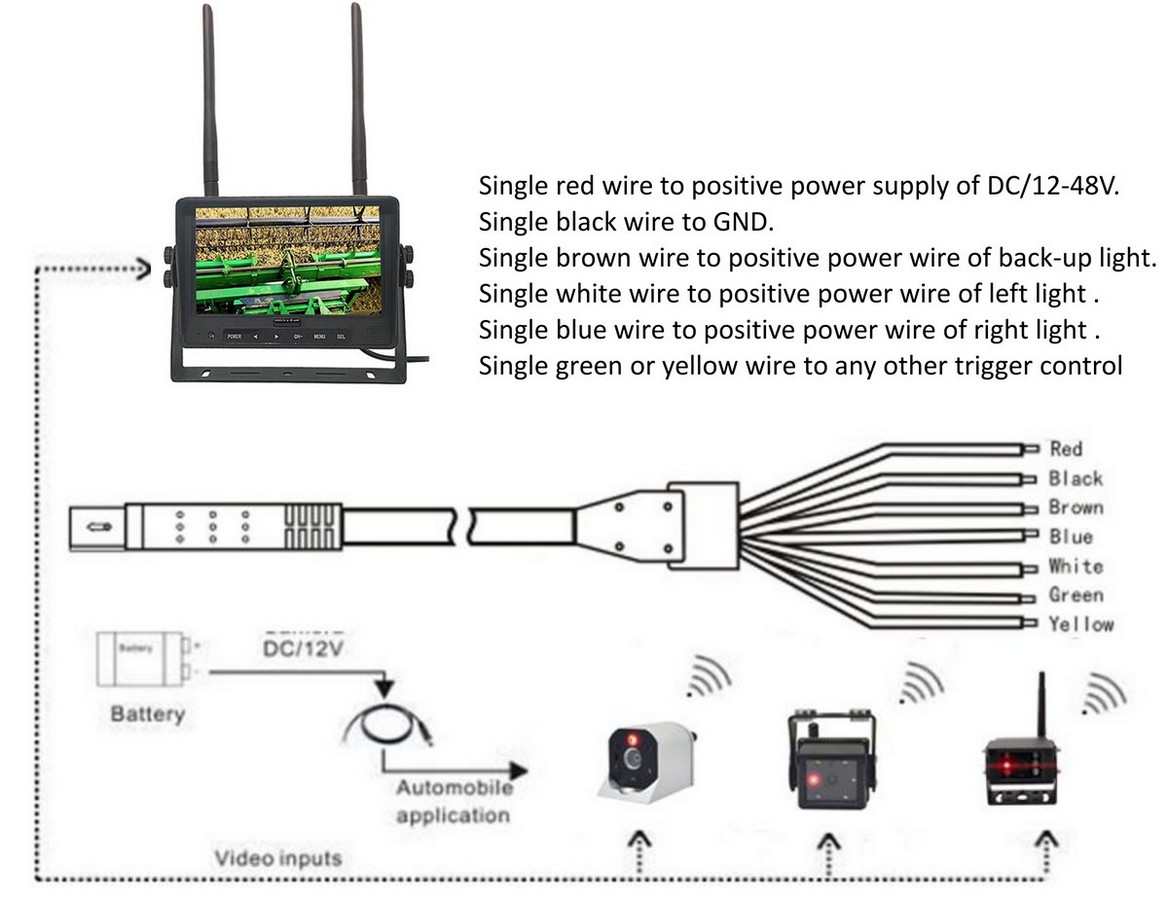

laser set forklift monitor wiring diagram


Monitor specifications:

Model: Profio Monitor S789
LCD size 7" IPS LCD display with a diagonal of 7" and a sun svisor
Built-in 2,4 GHz digital wireless receiver
1024 x 3 (RGB) x 600 resolution
Contrast 800:1
Brightness 450 cd/m2
Aspect ratio 16:9
Channel 4 CH - 4 inputs for cameras (possibility to add 3 more cameras without laser)
Touch buttons
Operating frequency 2412 - 2467 MHz
Transmission distance up to 100m
Receiving sensitivity -85 dBm
Video compression: H.264
P-WIFI communication protocol
FSK/GFSK modulation
SD card max. 256GB
Time delay 200 ms
System format PAL / NTSC
Power supply DC 12-48 V
Energy consumption Max. 8 W
Speaker 1,5W/8Ω
Waterproof IP68
Operating temperature -20~+70ºC, RH 90%
Storage temperature -30~+80°, RH 90%
Dimensions: 18,5 cm wide x 13 cm high x 6 cm deep

Camera specifications:

Model: Profio Laser P1
Image device 1/2,9" CMOS
PAL/NTSC TV system
Built-in 2,4 GHz digital wireless transmitter
Resolution: FULL HD 1920*1080
Automatic white balance
Minimum illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone Yes
Electronic exposure Up to 510:1
Laser lamp power <70mW
Laser wavelength: 660nm
Laser light angle: 120°
P-WIFI communication protocol
Power supply DC 12-48 V
Operating frequency 2400 -2483.5 MHz
Transmission distance: up to 100m
Transmission speed 12 Mbps
Lens f = 3,6 mm
Lens angle 110°
Waterproof IP68
Operating temperature -20°C~60°C, RH 90% MAX.
Storage temperature -30°C~80°C, RH 90% MAX
Dimensions: 5,3cm x 3,5cm x 4cm

Package contents:

1x 7" monitor with sun visor
1x power cable
1x U-support bracket
1x IR remote control
4x angle adjustment screw
2x 5DB Male antenna
1x manual

1x wifi camera
1x 1,5 DB antenna Male
1x power cable
1x 2600 mAh battery
1x manual
