Product description Security AHD system - 8x bullet camera 1080P + 40m IR and DVR
Security professional AHD system- 8x bullet camera 1080P + 40m IR night vision and hybrid DVR recorder AHD 1080P/960H/720P. CCTV surveillance system is easy to use and includes 8 AHD 1080P cameras and hybrid DVR recorder AHD 1080P/960H/720P, which will record in Full HD 1080p in real time. To use the system you need to buy HDD (hard disk 1 - 4TB) adapted for a 24 hour operation, which can be bought as an optional accessory.
The AHD camera system is recommended as a professional solution with superior picture and record of security cameras.
8-channel DVR IQCCTV hybrid recorder (HD1080P, HD720P, 960H) - offers the most modern digital recording via a standard cables. The recorder can record camera image either from 1080P/720P/960H cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. The recorder also has 4 audio inputs and 1 output if you wish to add a sound.
DVR unit can record all 8 cameras simultaneously at 15 fps in Full HD 1080P or at 25 fps in 720P or 960H resolution. DVR provides Full HD 1080P output to a monitor using VGA or HDMI. Once the set is connected to a network (internet) you can easily view and control it from anywhere in the world using Smartphone (Android), tablets, PC and Mac (iOS) computers.

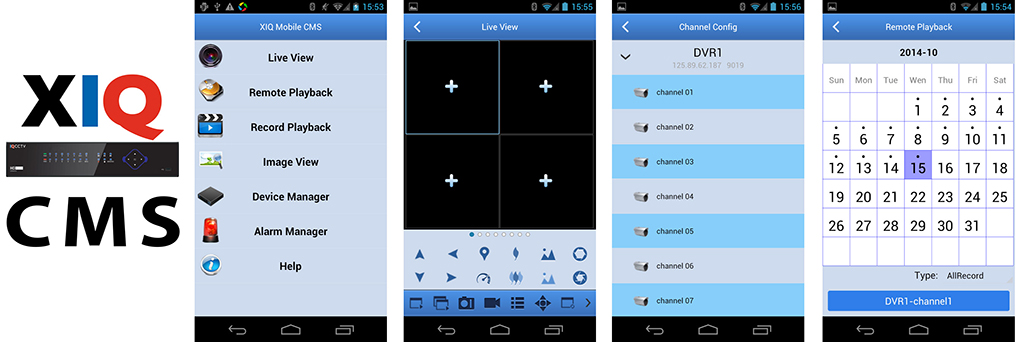

Application "XIQ Mobile CMS" for tablets and smartphones you can download for free in the app store and using the "Snap Shots" function you can set up e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.
Another new feature is the option to automatically send video/photo files via the app Dropbox online service for sharing and backing up of files, either at the motion detection, or at the set intervals. The service provides additional protection for recorded files.
You do not need to have a fixed IP address or to log in to the DDNS service. For those who do not want to use direct IP connection is also available HD CCTV feature that is added to the new series of DVR. It gives you the ability to remotely connect via a dynamic IP address. The application also allows multi-camera viewing and the ability to play recorded images from DVR.

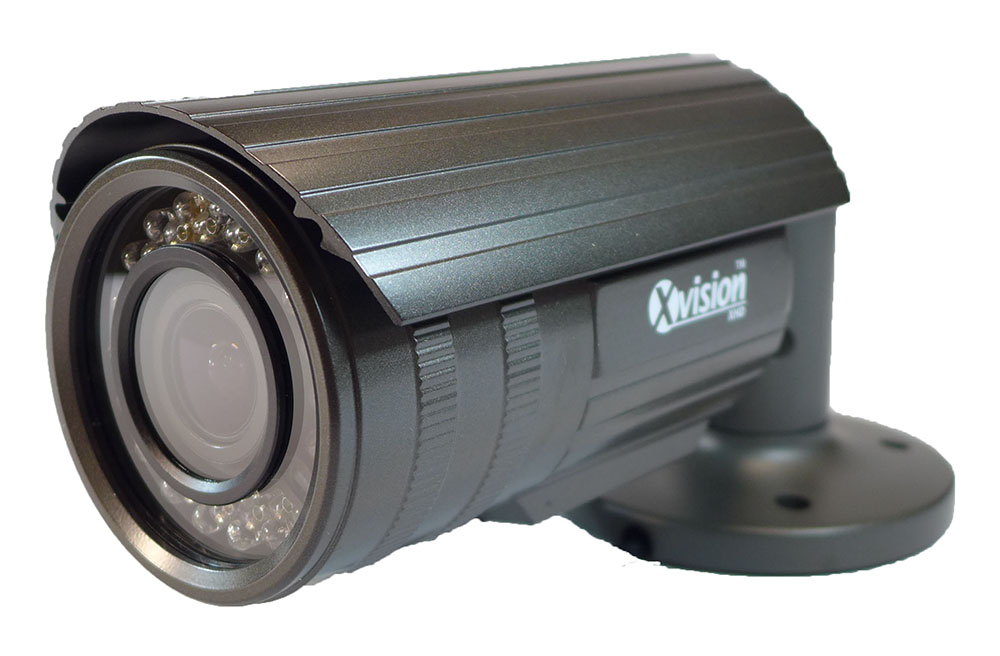

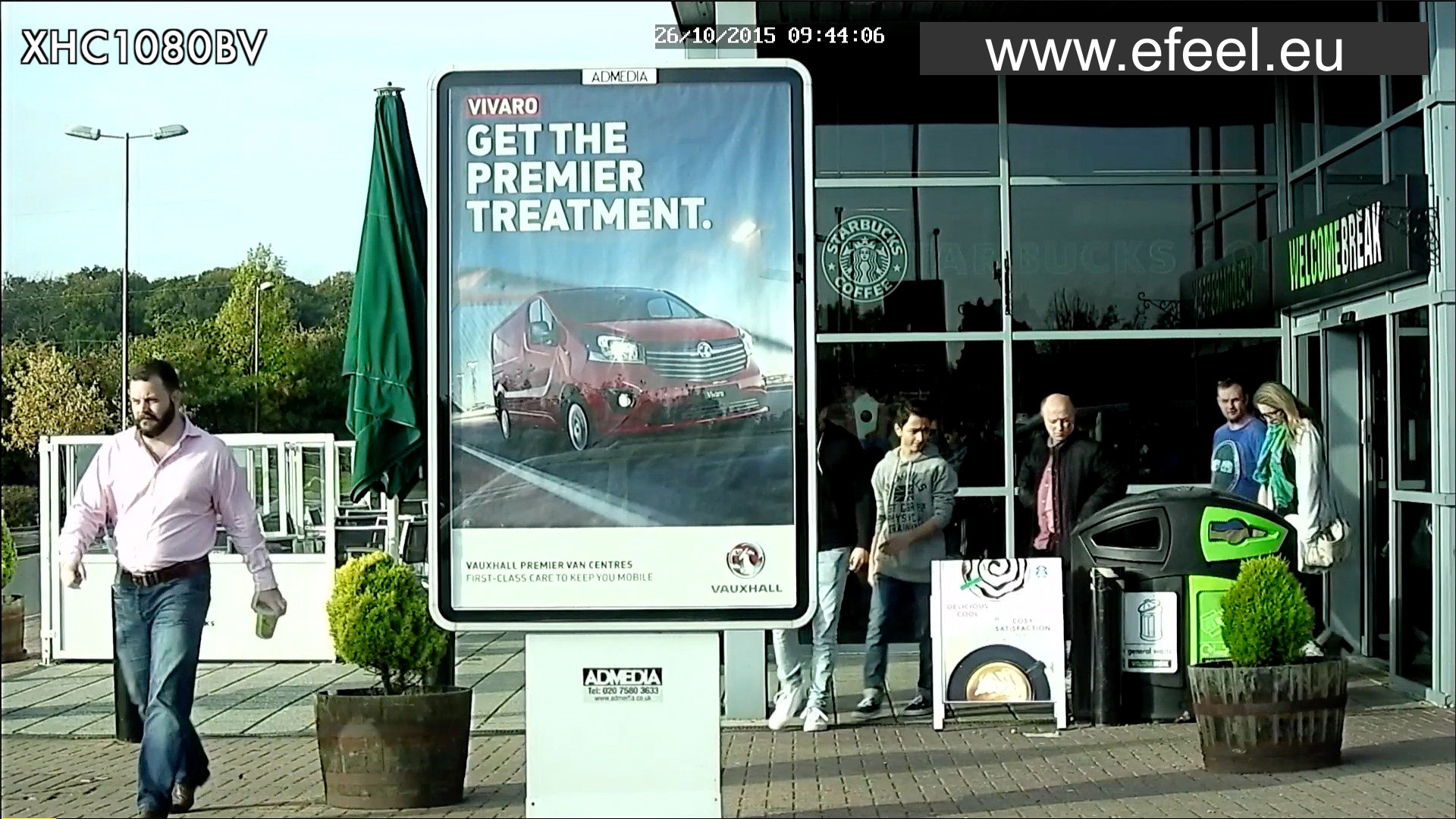

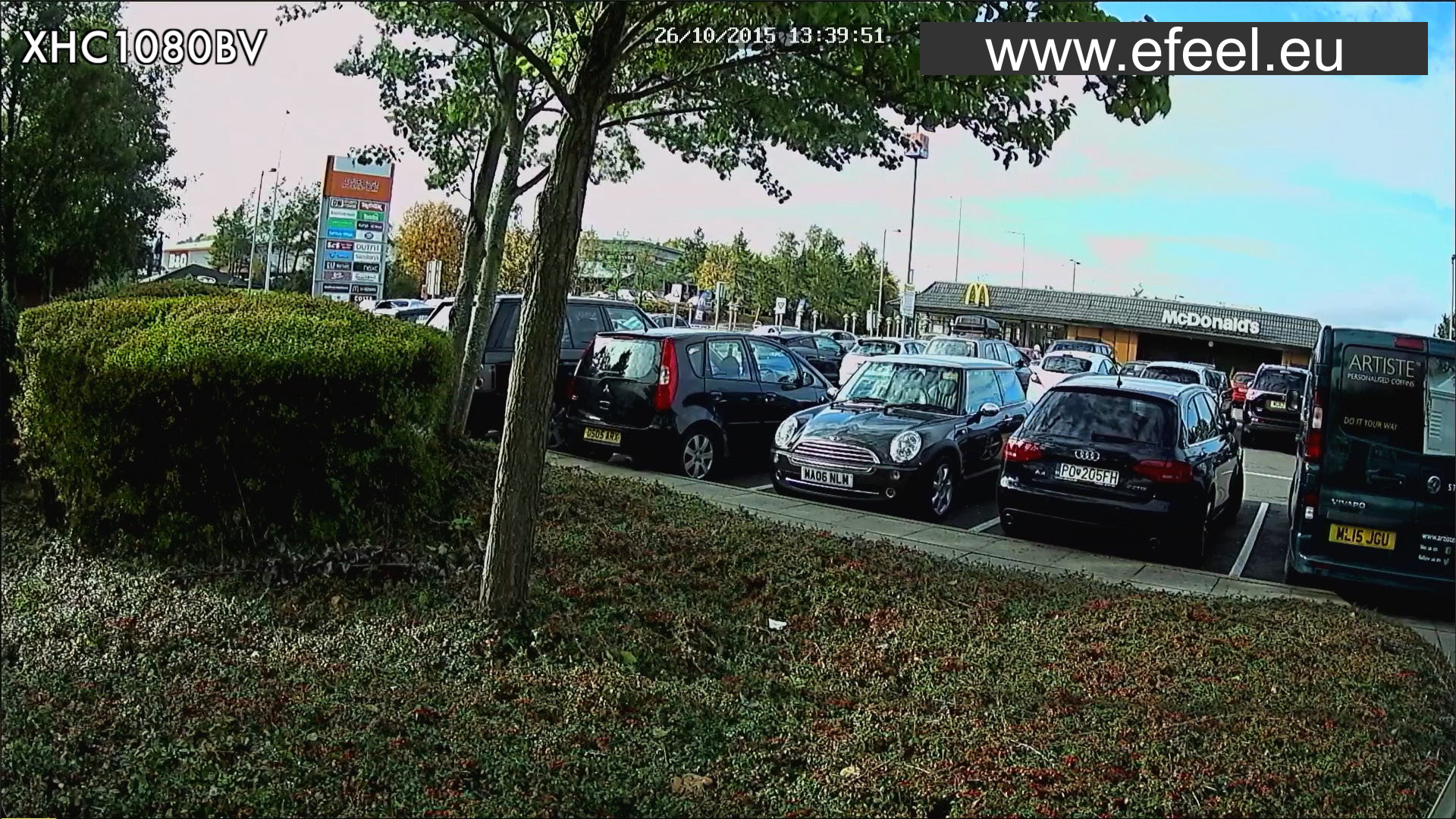

AHD security camera 40 metres IR - WDR + 3 DNR a hybrid varifocal security camera with IR night vision with distance of 40 m. The camera is equipped with a wide angle lens that scans at angle of 23 - 92 °. The camera disposes with a hybrid image resolution of 1080P/960H. It is equipped with a powerful Xvision X3K-DSP processor, which processes an image in real time. The camera is also equipped with digital noise reduction (3x DNR) that removes pixelation, improves image quality when using the DVR recording and Wide Dynamic Range (WDR). The image does not suffer even on bright and dark spots.

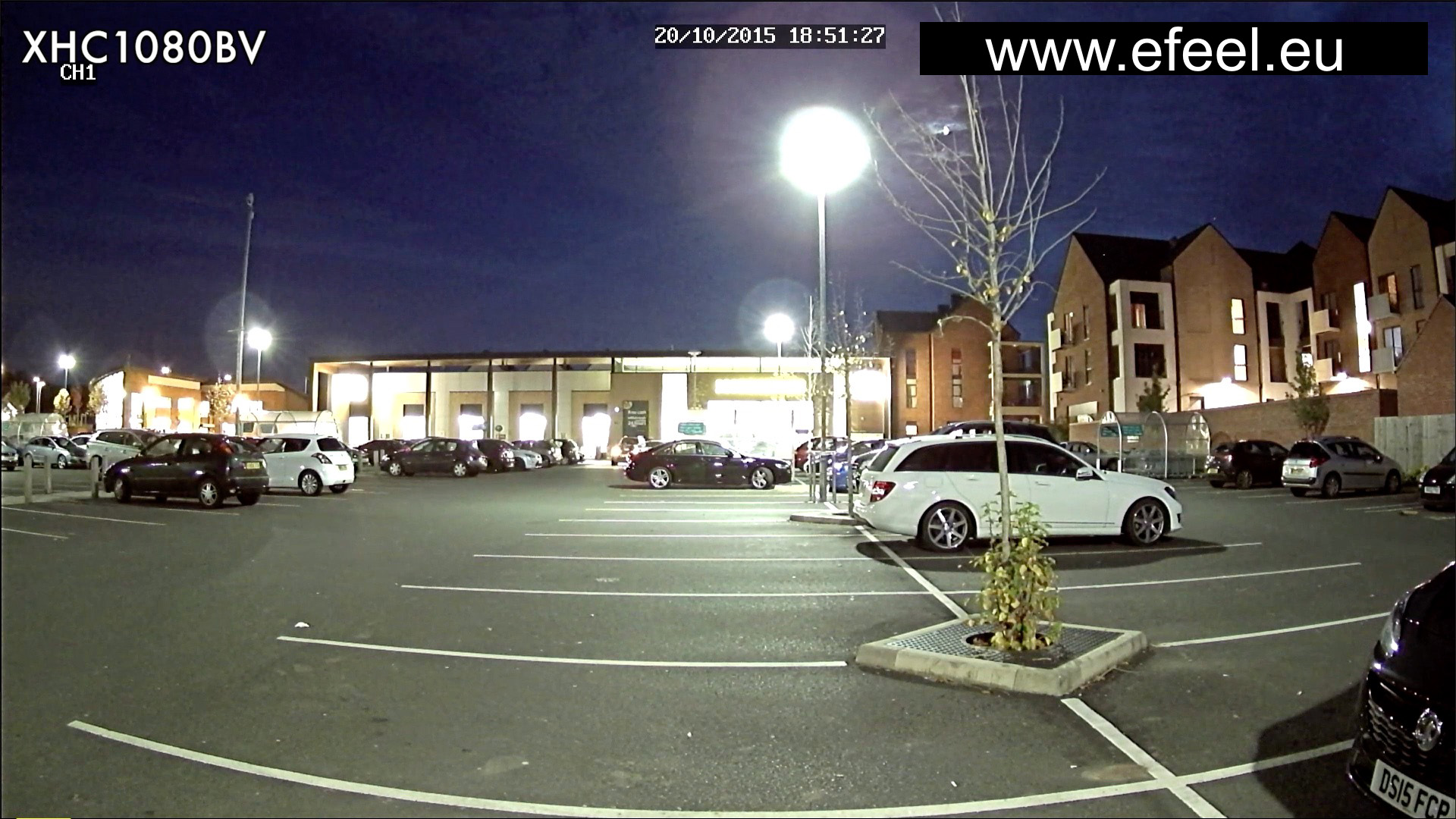

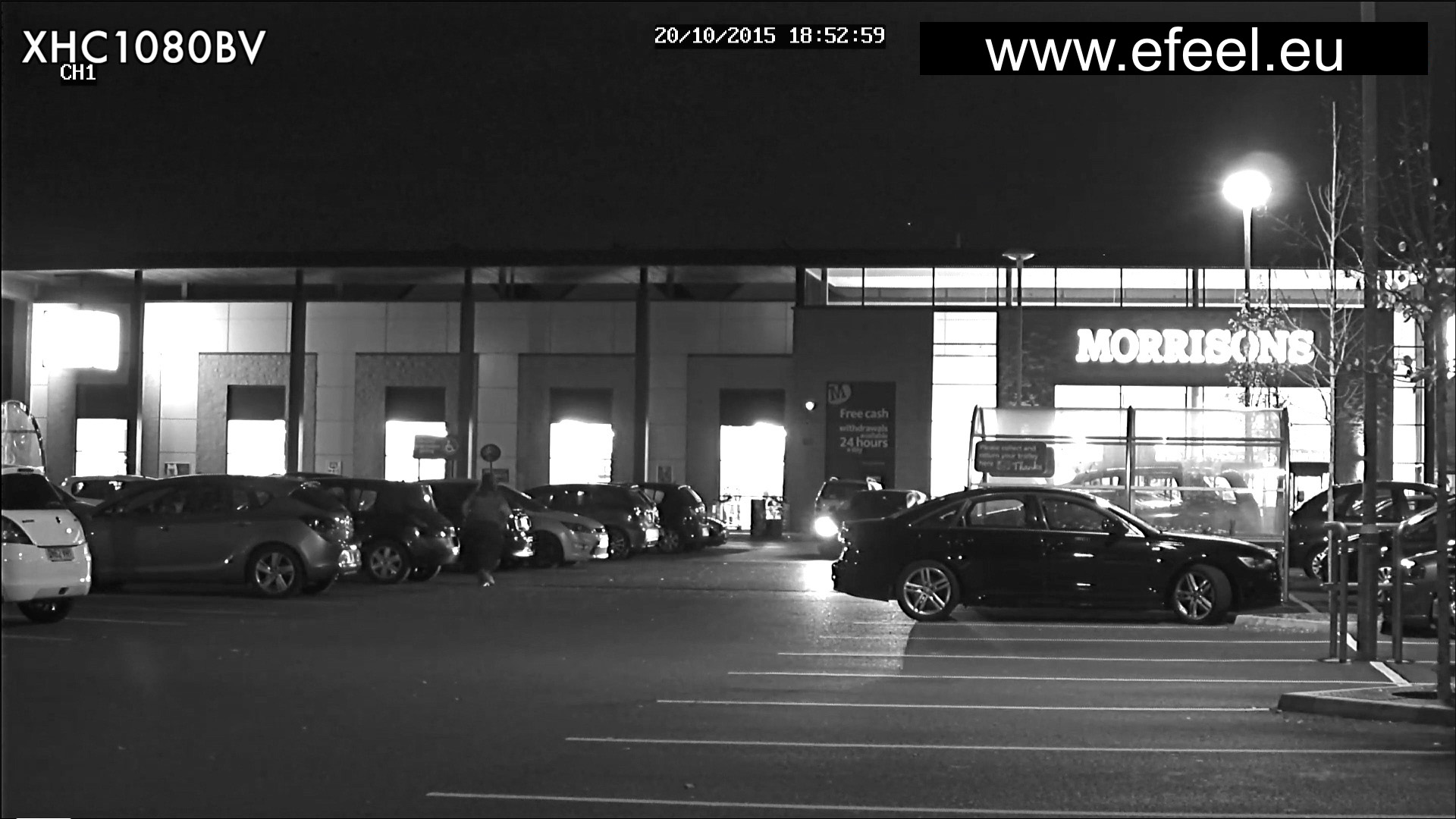

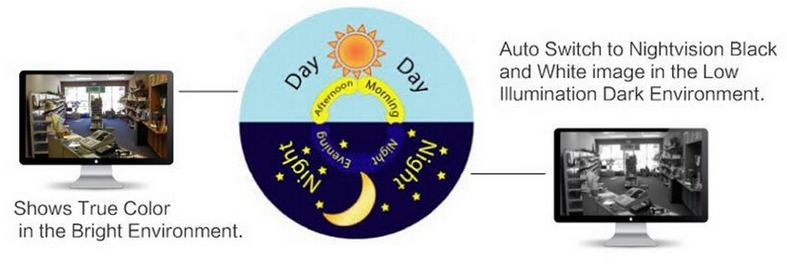

The camera also has night vision IR up to distance of 40 meters (it is activated automatically upon detection of lower light) that allows continuous monitoring even in complete darkness. After dark or in low light conditions, the camera automatically switches from the color scanning to black-white mode. Automatic IR filter produces quality color images during the day and clear images at night in combination with IR LED illumination.
It is ideal for indoor and outdoor use (IP66) and has a compact design. Can be installed on the wall using a console with a spheric joint with which the camera can be set to different angles. The camera has a mini joystick, which allows you to change camera resolution (1080P, 960H) as well as for the advanced camera settings using the LCD monitor.
AHD systems 1080p

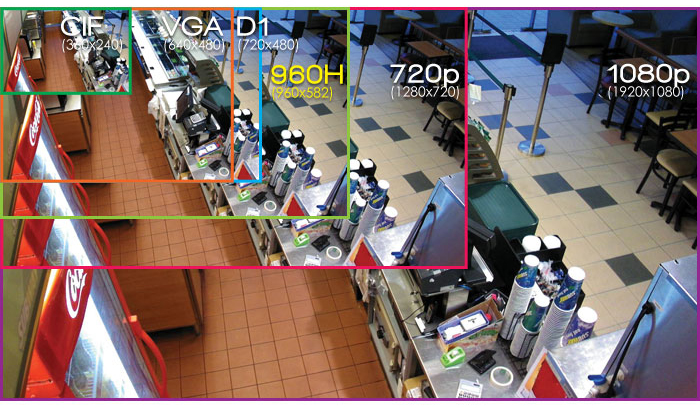

The latest technology of camera system that comes as the successor of analog systems, but in high-resolution 1280x720px and 1920x1080px. That´s why it has a unique technology that enables video transmission through coaxial cable (up to 500m).
Analog connection and conduction
Signal transmission through cable up to 500m
More technologies of signal transmission
Digital recording on hard disks
Possibility of remote control (LAN)
Technical specifications DVR:
Video compression: H.264
Video system: PAL / NTSC

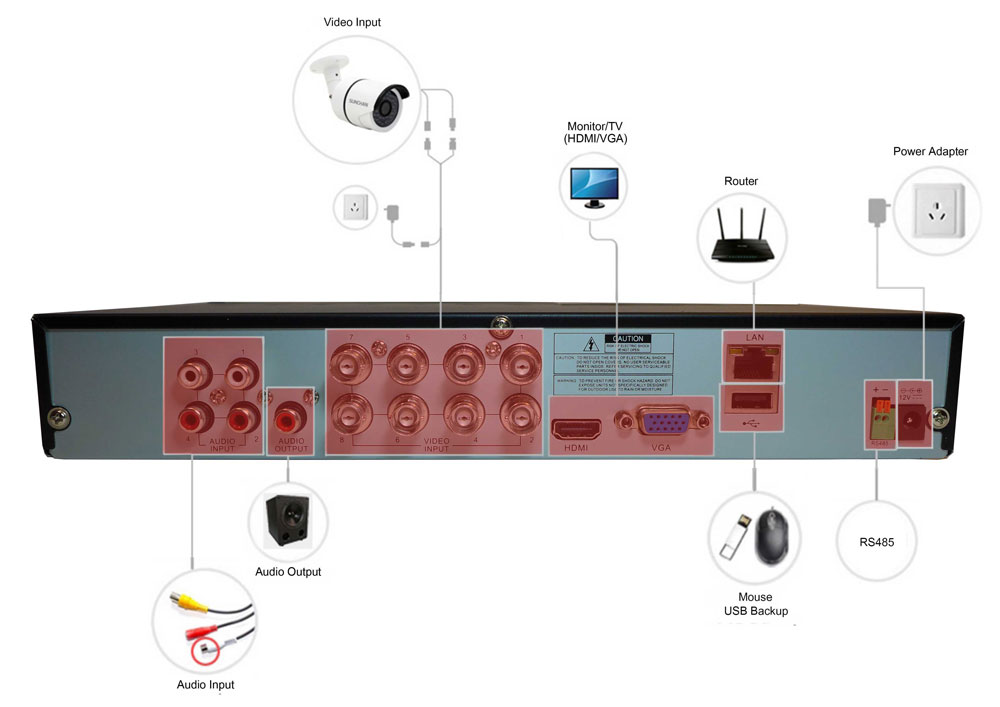

Video input/output: 8 Ch. inputs, 1 VGA, 1 HDMI
Spot output: No
Audio input/output 4 Ch. inputs, 1 Ch. output (RCA)
Display resolution: PAL: 960x576 / 1280x720 / 1920x1080 @ 25fps
Display function: Single, Quad, SEQ
Recording resolution: PAL: 960x576 (960H), 1280x720 (720p), 1920x1080 (1080p)
Recording speed: PAL: 960H Mode / Mode 720p / 1080p Mode: 25fps
Recording mode: Continuous / Manual / Motion Detection
Playback channel: 1/8 Ch.
Frame rate: PAL: 960H Mode / Mode 720P / 1080P Mode: 25fps
Sensor and Alarm I/O: No
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP and DDNS
HDD Interface: 1 SATA HDD up to 6 TB
Multiplex operation: Live view, recording, playback, backup and network
USB: 2 x USB (for mouse and backup/upgrade)
PTZ control: Yes
Mobile Surveillance: XIQ CMS - Android and iOS
CMS Software: Yes
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
Power supply: 12V DC
On/Off Switch: No
Remote control: Yes
Dimensions (WxHxD): 300x53x227
The camera parameters:
Type: Security camera with spheric joint
Resolution: 1080P / HD960H
Sensor type: 1/2,8 " SONY 2,43 megapixel CMOS
Lens size: 2,8 - 12,0 mm
DSP Type: Xvision X3K DSP
Minimum illumination: 0.0003 Lux
DSP Function: Sens-up, WDR, 3 DNR, suppression of fog, DPC, mirrors, MD, Privacy Zone, AGC, white balance
Night Vision: 40m IR
Lens Type Varifocal
Angle: 23 ° - 92 °
Weather-resistant: Yes (IP66)
Vandal Resistant (anti vandal): no
Dimensions (WHD in mm): 77x109x211
Weight (kg): 0,60
Operating voltage: 12V DC - 360 mA
8x Camera XHC1080BV
8x 20 m cable for video/audio/power
8x Installation material (screws, dowels)
2x Power adapter of camera 12V 5000 mA Camera
2x Splitter for 4 cameras
1x DVR recorder IQR1080D8
1x Power Adapter DVR
1x USB mouse
1x Remote Control
1x Installation CD
