Reversing set - 7" monitor + Camera with 11 IR LED + AHD Camera
Product description Reversing set - 7" monitor + Camera with 11 IR LED + AHD Camera
Car reversal set - 7" monitor + Camera 11 IR LED + MINI AHD camera. The front camera serves as a security camera in the vehicle. The camera set with recording contains a 7" HD monitor, camera with 11 IR LED night vision + MINI AHD 720P wide angle camera. Rear camera with IR LED protection IP68 and 145° viewing angle and front HD reversing camera with 720P resolution with console and 120° angle of view + IP67 and hybrid 7" AHD monitor is a comprehensive camera system designed for driving and maneuvering vehicles in demanding and confusing situations in any terrain. It can also be used as a classic camera system in a car or other vehicle, i.e. recording driving in front of the vehicle using a mini AHD camera without night IR vision (there are no reflections of IR LEDs from the windshield) and also as a reversing camera or recording events behind the vehicle.
The advantage of the set is that in addition to the reversing camera, it also contains a front camera, thus performing the function of a security camera in the vehicle.
The SET contains two cameras - The camera from the PROFIO ELECTRONICS brand has an AHD resolution of 1280x720p, thanks to which you can see all the details when reversing clearly and sharply. AHD camera measuring only 55x55x55 mm will take care of a quality image not only during the day, but through night vision with 11 IR LEDs (afterglow up to 15m) you will see well when reversing even at night. This camera is perfectly suited for outdoor installation on the horse's horse thanks to its IP68 protection. The reversing camera has a scanning angle of up to 145 ° , which is a sufficient range for the needs of reversing or monitoring the movement of the vehicle in an environment where increased attention is required in terms of safety. This HD camera meets the IP68 degree of protection, which makes it waterproof, dustproof and resistant to mechanical damage. The camera body itself is protected by a durable alloy case.
The rear camera is characterized by high-quality night vision, high durability (IP68) - maneuvering the vehicle will be safer and easier.
The second camera is intended for installation in the interior of the vehicle and serves as the front camera of the vehicle. It has no IR LED night vision and is not reflected in the windshield, making it suitable as a front camera. Its great advantage is its miniature dimensions of only 46x40.2x40.2 mm . It provides video transmission in HD 720P quality when shooting 30 fps - which guarantees a sufficiently high-quality and sharp image. Thanks to the F 1.2 aperture, it can capture an image even in poor lighting conditions. The camera does not have night vision, which allows you to use it as a front camera if your monitor has a recording function (DVR). This camera is therefore suitable in combination with our DVR monitors, which allow you to record the ride (on an inserted memory card) on the windshield and use the camera as a black box.
The front camera has a high aperture F1.2 (it can capture images even in poor lighting conditions) and does not bounce off the windshield.

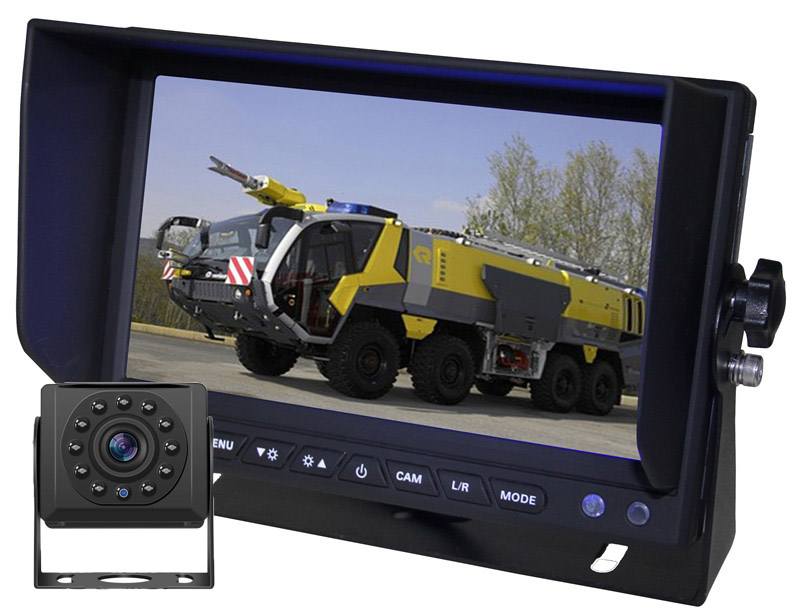

Hybrid 7" reversing car monitor (machines) for 4 AHD / CVBS cameras (so you can add 2 more cameras ) with SD card recording up to 256 GB, with the ability to connect up to 4x any type of FULL HD, HD cameras, CVBS, etc. reversing cameras The 7 "LCD screen makes this set an ideal reversing aid. The power supply of the camera and signal transmission is via a high-quality, shielded connector with a 4-pin terminal, which has a waterproof finish. The camera is powered directly from the reversing monitor with a voltage of 12-24V.
Possibility to connect up to 4 cameras with the possibility to choose the order of displayed cameras.
The individual cameras can be displayed side by side or, if necessary, combine the arrangement of the cameras on the monitor.

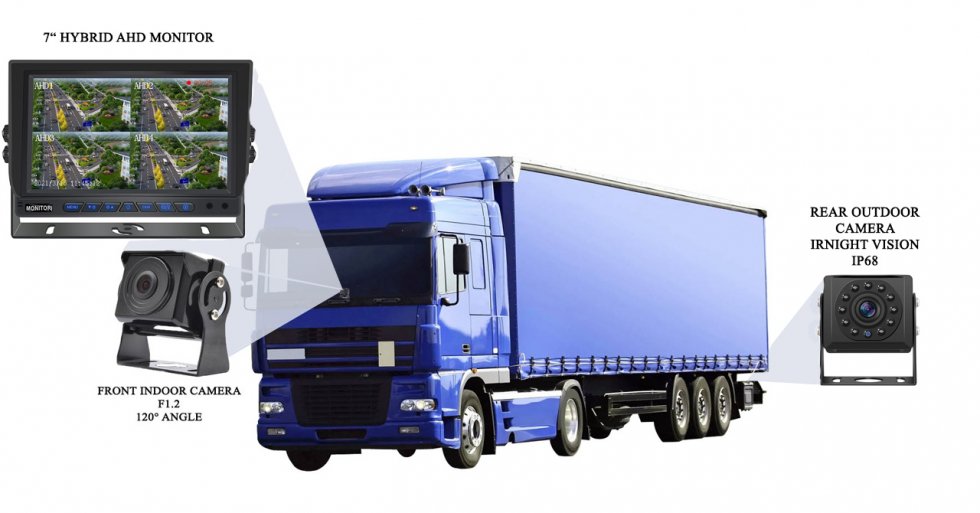

Thanks to this system, you will know exactly what is behind, in front of or around the vehicle. Reversing AHD set contains LCD monitor 7 "+ 1x rear outdoor camera with IR night vision + 1x wide front indoor HD camera F1.2 + 2x (5m, 10m, 15m or 20m cable) which is included in the price of the set and you can choose it The AHD set is exceptional in addition to the image quality in that you can connect up to 4 (AHD 1080P / AHD 720P / 960H) cameras to the monitor at the same time . The hybrid monitor supports mixed input in several video formats as well as PAL / NTSC frequencies . This reversing set has a wide range of uses. The IP degree of protection of the rear external camera is up to IP 68 , which means that it is resistant to water, mud, dust and mechanical damage.
Parking camera with monitor AHD SET - for cars, vans, trucks working machines
The reversing monitor contains a menu in which you have various options for setting up the LCD monitor and the cameras that are connected to it. The monitor also serves as a DVR recorder for recording from cameras (it is stored on a memory card up to 256 GB). The hybrid monitor supports AHD 1080P / AHD 720P / 960H / CVBS mixed input in several video formats as well as PAL / NTSC frequencies, up to 4 cameras can be connected to the monitor at the same time. This means that you can have a 1080D AHD camera connected to the monitor and a second 720P resolution, for example, and the monitor will display the image from both simultaneously.
The recording from the cameras is stored on an SD card, which is supported up to 256 GB.

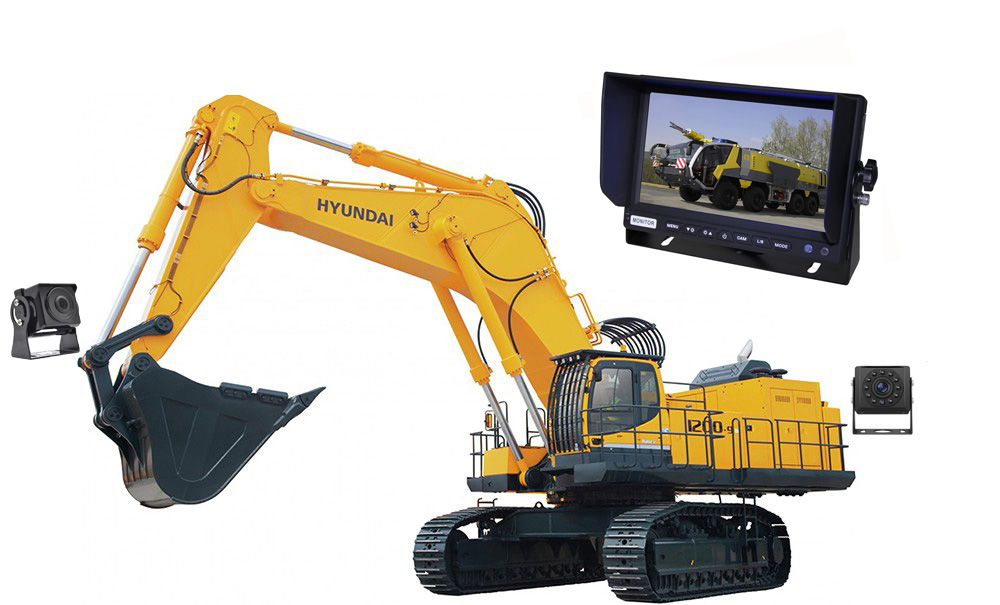

Use of a reversing camera with a monitor in HD resolution, also suitable for construction machinery

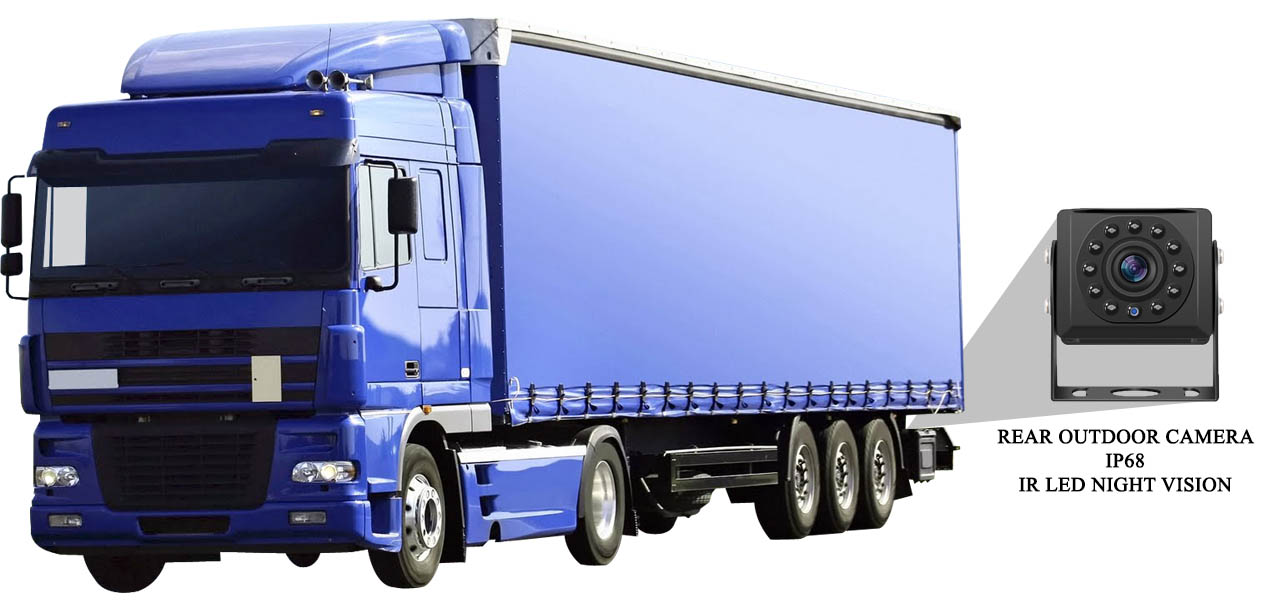

Rear camera - IP68 protection guarantees resistance to water, mud, dust and mechanical damage

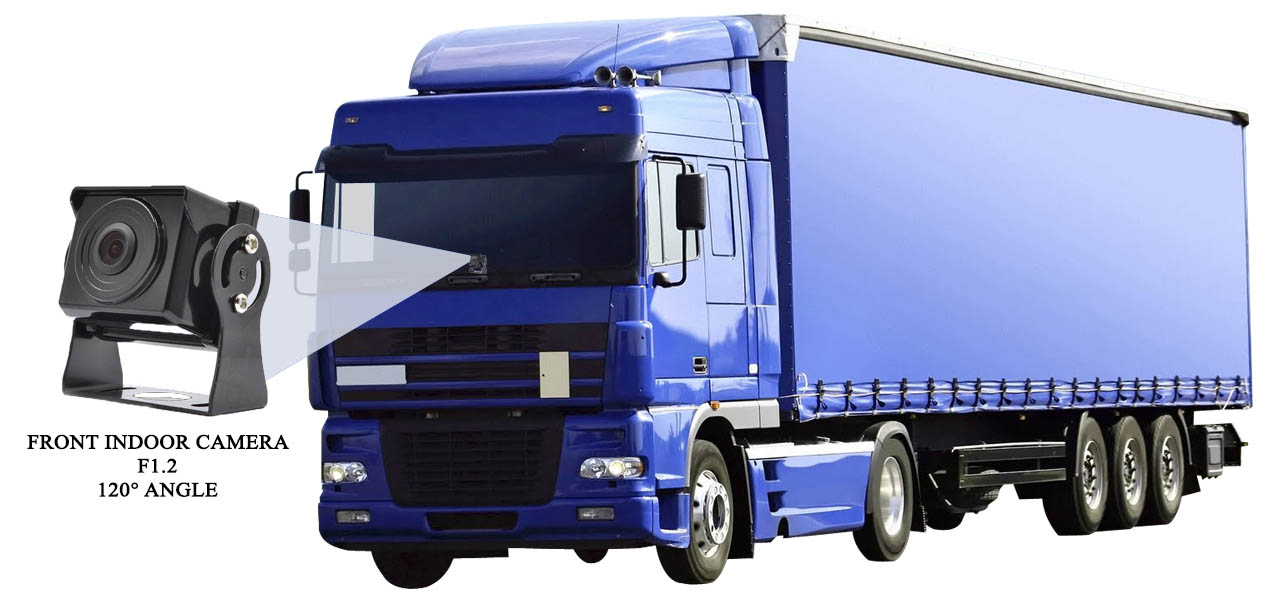

Front camera - Suitable as a front camera for driving recordings thanks to the F1.2 aperture and a wide 120 ° angle of view.
Monitor technical specifications:
Model: Profio -W70
Monitor: 7 "HD screen
System: PAL / NTSC 50 / 60Hz
Aspect ratio: 16: 9
Monitor resolution: 1024 x 600 RGB
Display visibility: 180 ° on each side
Video resolution when recording: 1280x720P, 1280x960P, 960H
Compatible signal: AHD 720P @ 25/30, 960P @ 50/60, 1080P @ 25/30, CVBS 960H
Inputs: 4x AHD / CVBS channel
Backlit buttons: yes, blue light
Luminosity: 500-700cd / m2
Recording: yes, 4 channels
Cyclic recording: yes
Display layout: 1/2/3/4 camera
Video format: AVI
Memory: support SD card class 10, up to 256 GB (memory card not included)
OSD settings: brightness, contrast, volume, language
Power supply: DC 12-36V (13V voltage is required for power supply even with a camera)
Output voltage: DC + 11.5V / 3A
Audio input: yes 1x
Connector: 4pin connector
Remote control: yes
Light curtain: yes, detachable
Operating temperature: -20 to 70 ° C
Dimensions: 18 x 12 x 2.5 cm
Rear camera technical specifications:
Image sensor: CMOS 1/4 "
Resolution: HD 1280x720
System: PAL / NTSC
Minimum illumination: 0 LUX (IR on)
IR night vision: yes 11 IR LED
Night vision distance: 15 m
Viewing angle: 145 °
IP degree of protection: IP 68 waterproof, dustproof, damage resistant
Power consumption: 3W
Working temperature: -20 to 70 ° C
DC power supply: 12-24V
Camera body material: aluminum, metal
Dimensions: 55x55x55 mm
Front camera technical specifications:
Model: Profio SI862
Type: camera with console
Sensor: 1 / 2.9 "CMOS
TV system: PAL
Night vision: no
Resolution: HD 720P
Viewing angle: 120 °
Electronic shutter: 1 / 50-1 / 100000S, 1 / 60-1 / 100000s
Shooting: 25fps, 30fps at 1080P
Minimum illumination: 0.01 Lux / f1.2
White balance: automatic
Backlight balance: automatic
Signal output: AHD
Connector: 4 pin
Power supply: DC12V
Consumption: up to 2W (up to 150mA)
Operating temperature: -20 to 75 ° C
Storage temperature: -30 to 85 ° C
Camera body material: aluminum, metal
1x Hybrid 7 "reversing monitor
1x AHD reversing camera
1x AHD front camera
2x Connecting cable 5m, 10m, 15m, 20m according to choice
1x Remote control
1x Sun visor
1x Monitor mounting bracket
2x Camera mounting bracket
