Mini parking AHD 720P camera IP67 and 120° angle + console

SKU: 19-131 I have a question
Manufacturer PROFIO
Products availability in stock
Products are in stock, ready to send.
Yes! We Ship To US
Price excl. VAT U$ 55.00
Price incl. VAT U$ 66.00
- +

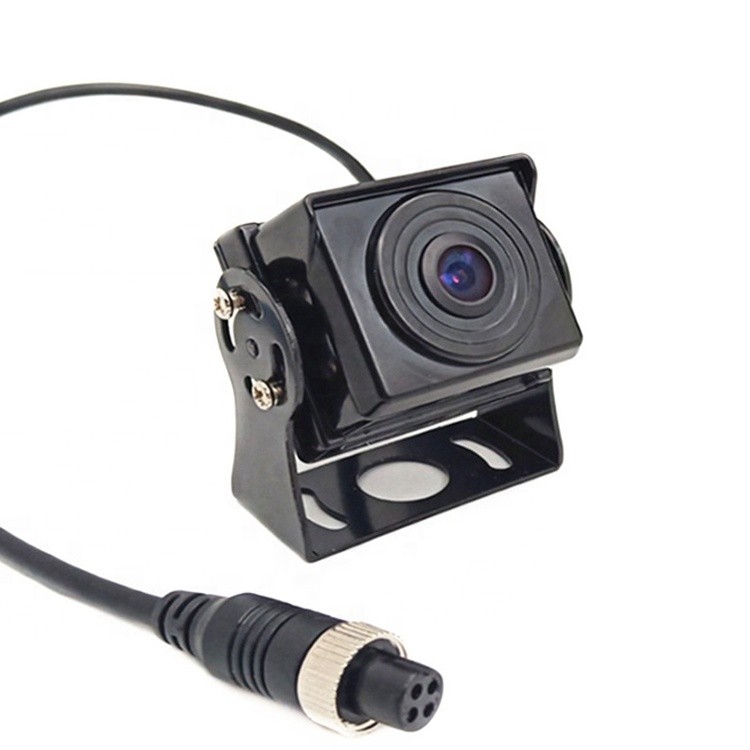

Product description Mini parking AHD 720P camera IP67 and 120° angle + console

Mini parking AHD 720P camera IP67 and 120° angle of view + console, quality and sharp image transmission. The ideal parking assistant with which you will have an overview when reversing, what is happening behind the vehicle, whether you are far enough away from an obstacle or another vehicle. The camera from the PROFIO ELECTRONICS brand with its dimensions of 46x40,2x40,2mm has a wide range of uses, because it is suitable not only for trucks, vans, caravans, minibuses, but also trucks, trailers, etc. Video transmission in resolution - HD 720P at 30 fps shooting - quality and sharp image transmission.

It can also be used as a front DVR camera for driving recordings even in poor lighting conditions thanks to the F 1.2 aperture

(it has no night vision, so it does not switch the camera to this mode - no window reflections)

The camera does not have night vision, what allows you to use it as a front camera if your monitor has a recording function (DVR). This camera is therefore suitable in combination with our DVR monitors, which allow you to record your ride on the windshield and use the camera as a black box.

Small AHD reversing camera with HD resolution 720P

small reversing ahd camera reversing parking

The brightness of the lens is F 1.2, what allows the camera to compensate the low light and record even in poor lighting conditions. Thanks to a viewing angle of up to 120°, you will have a sufficient view for safe reversing. The AHD reversing camera meets the degree of protection IP67, what makes it waterproof, dustproof and resistant to mechanical damage. The camera has a durable aluminum body with a metal base and you can install it on various surfaces. The power supply of the camera and signal transmission is via a high-quality, shielded connector with a 4-pin terminal, which has a waterproof finish, which will make your work easier during installation. The camera is powered directly from the reversing monitor with a voltage of 12V.

reversing full hd camera

The AHD reversing camera is only compatible with AHD and DVR monitors (AHD and DVR LCD monitors can be found in our offer).


PLUS AHD camera for safe reversing
plus It can also be used as a front DVR camera to record driving (because it has no night vision)
plus Suitable for vans, caravans, trucks...
plus Viewing angle up to 120°
plus IP67 waterproof and damage resistant


Technical specifications:

Model: Profio SI862
Type: camera with console
Sensor: 1/2,9" CMOS
TV system: PAL
Night vision: no
Resolution: HD 720P
Viewing angle: 120°
Durability: IP67
Electronic shutter: 1 / 50-1 / 100000S, 1 / 60-1 / 100000s
Frame ratio: 25fps, 30fps at 1080P
Minimum illumination: 0.01 Lux / f1.2
AGC: automatic
White balance: automatic
Backlight balance: automatic
Signal output: AHD
Connector: 4 pin
Power supply: DC12V
Consumption: up to 2W (up to 150mA)
Operating temperature: -20 to 75 ° C
Storage temperature: -30 to 85 ° C
Weight: 188g
Dimensions: 46x40,2x40,2mm
Camera body material: aluminum, metal

Package contents:

1x AHD reversing camera
