Reversing 7" LCD monitor with 2 WiFi cameras and DVR function
Accessories
Product description Reversing 7" LCD monitor with 2 WiFi cameras and DVR function
Reversing 7" LCD monitor with 2 WiFi cameras and DVR function. It is recording a video record and stores it on a SDXC memory card up to 128GB. The record is recorded in VGA resolution and on a 128GB memory card you can save more than 200 hours (8 days) record of one camera or 50 hours of all 4 cameras. Digital wireless power guarantees a signal transmission of up to 100m, and the signal is also strong enough not to be disturbed with large metal parts of the vehicle or cargo. In addition to video recording, the micro sd also stores sound audio recording.
Profio monitoring system for for cars, trucks and agricultural machines with IP66 protection. This innovating technology is delivered by PROFIO Electronics. Signal transmission operates based on a Wifi signal from a cameras, that makes the installation of the cameras easier, and the main advantage is that you are not limited by pulling the connecting cables. And there is also another improvement of this reversing system, because the monitor also serves as a DVR recorder.

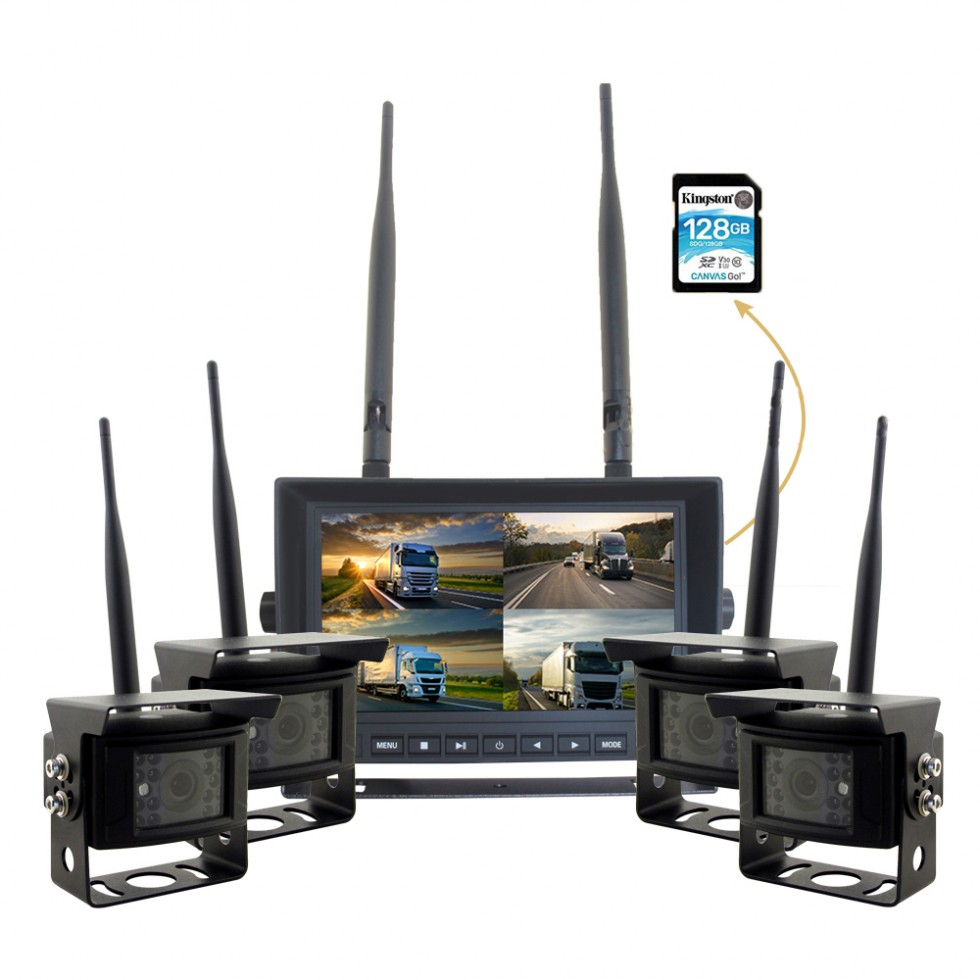

This set contains 1x Wireless DVR 7" monitor in the car and 1x wireless reversing camera (you can connect 2 more WiFi reversing cameras). Monitor with camera is equipped with an adjustable console, which you can place on needed place. The WiFi reversing set has a wide range of use, thanks to high-performance WiFi antenna is suitable not only for cars but also van, minibus, buses, trucks, trailers and other vehicles. IP level of camera protection is up to IP66 waterproof, dustproof and resistant to damage.
WiFi reversing set with DVR recorder and extra large range of wifi connection up to 100 m.
It is possible to connect up to 4 WiFi cameras to the WiFi DVR monitor at the same time, especially when installing on larger motor vehicles, where you need more views from different angles. With this system you will know exactly what is behind or around the vehicle. The LED monitor has a contrast 300:1 with a resolution of 800x480. A wide-angle lens with up to 150° is also equipped with IR night vision. The WiFi signal has a range of up to 100m, what guarantees you a quality receiving from the reversing camera. The monitor has a simple OSD menu through which you can set the camera according to your needs. On the LCD monitor, it can display all four cameras at the same time, in multiple variations, to display two cameras alongside, or switch between cameras. Through the switching circuit, the camera can be connected to reversing lights to automatically switch to the selected camera, when reversing.
The LCD monitor with cameras can be connected in different ways, to turn on when reversing or after the vehicle is started. The DVR monitor also has an image mirroring function that allows you to set the cameras to show the right and left side from your view. It also includes a remote control that will simplify controlling when switching cameras, or quickly adjust the image.
Possibility of mirroring function of camera + possibility to see all cameras on LCD at the same time or each camera separately
- WiFi DVR 7" TFT monitor
- DVR recording function from up to 4 cameras
- Monitor with option to connect up to 4 WiFi cameras
- Installation without pulling cables
Monitor technical specifications:
Model: Profio Clear View S7
7" TFT monitor
System: PAL/NTSC
Aspect satio: 16:9
Monitor resolution: 800 x 480
Inputs: 4 channel 2,4G WiFi video signal input
Contrast: 300:1
Adjustable: brightness, contrast, color
Power supply: DC 12V-24V
Power consumption: 5W
Working temperature: -10 to 60 ° C
Storage temperature: -20 to 70 ° C
Dimensions: 180 x 121 x 24 mm
Camera technical specifications:
Model: Profio Parking Camera S7
Image sensor: SHARP 1/4 CMOS
Resolution: 420 TV lines
WiFi connection: 2,4G WiFi with 100m range
Minimum lighting: 1 LUX
IR night vision: yes
Viewing angle: 150°
IP protection: IP 66 waterproof, dustproof, damage resistant
Power consumption: 3W
Working temperature: -10 to 60 ° C
Storage temperature: -20 to 70 ° C
Dimensions: 86,5 x 77 x75mm
Package contents:
1x 7" TFT WiFi DVR monitor
2x WiFi reversing camera
1x Remote control
1x Manual
