Professional HD SDI camera 4x + HD SDI DVR 4-channel

Professional HD SDI camera 4x + HD SDI DVR 4-channel - unique surveillance shop products for best price. ISO EN 9001:2008 certified online seller. The set of 4x high quality HD SDI cameras with sophisticated design. The record in Full HD resolution and night vision thanks to IR LEDs. 4x Profi HD SDI camera + HD SDI DVR 4-channel for external and internal use. This set offers complete CCTV solution in HD quality at a adequate price. The set includes HD-SDI IR Bullet cameras with resolution up to 1080p, for mounting on a wall or ceiling, inside or outside and have built-in IR LEDs for 25 meters vision in total darkness and HD DVR. DVR records in Full HD, makes backup to DVD and also has HD VGA and HDMI outputs.

The system includes:

• 1x 4-channel HD/HD DVR with 720/1080p resolution, mobile access, CMS - VGA and HDMI outputs - eSATA

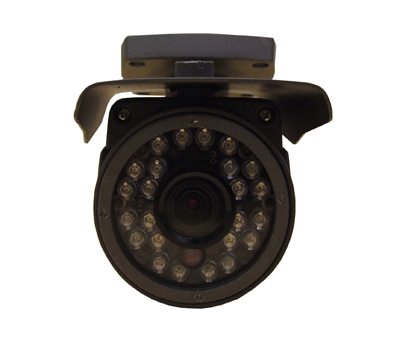

• 4x Full HD IR Bullet Camera with Full HD resolution for indoor and outdoor use
• 4x 20 m BNC/BNC cables
• 1 x Fixing kit (screws, hooks and cable clips)
• 1x CCTV warning sign

Technical specifications:

HD SDI Camera:

• ModelXHDSYS4B
• Resolution1080p
• Water resistanceYes
• Vandal resistantNo
• Mountingfor wall or ceiling
• Dimensions70x78x170
• Weight (kg)0,56
• Sensor type1080P Sensor
• DSP TypeAdvanced Xvision 1080P
• DSP functionsAuto Electronic shutter, auto white balance, auto balance noise, wide dynamic range, digital noise reduction
• Minimum illumination0.0003 Lux (IR off)
• Night vision25m IR night vision
• Lens typeMega Pixel Lens
• Lens/Size4 mm
• Viewing angle64°
• Operating voltage12V DC 500 mA
• Recommended power supply12V DC 1250 mA (not included)
• Video outputBNC plug
• Audio OutputN/A
• Power supplyDC plug
• RS485 ControlNo

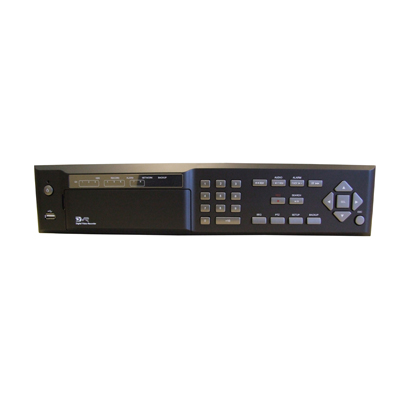

HD SDI DVR:

• DVRXHR204
• Cameras / Audio Inputs4x HD-SDI inputs for cameras / 4x Audio Inputs
• Alarm Inputs / Outputs4/1
• Compression recordH264
• Recording / Resolution60 fps/640x360, fps/720P 48, 20 fps/1080P
• Recording modesAlarm / Motion Detection / Continuous / scheduled, manual
• Maximum recording capacity12TB (up to 6TB DVD burner)
• Consumption of disk space for 24 hoursCIF (320x240) = 2-8 gigabytes, HD1 (720x288) = 4-15 gigabytes, D1 (720x576) = 7-29 gigabytes
• Multi Play4 cameras
• Backup methodsUSB Flash Drive, DVD Writer, Network / Internet
• Monitor OutputsVGA, HDMI
• Spot Monitor OutputN / A
• Controlfront panel, IR remote control, USB mouse, keyboard (optional)
• Network / InternetPC / Mac: Live image, email alarm, PTZ, Multi-site/DVR control, audio, prehávanie, backup, images, configuration.
• iPhone / iPadlive painting, email alarm, PTZ, audio, prehávanie
• AndroidLive painting, email alarm, PTZ, audio, prehávanie, images
• CMS Software FeaturesLive preview / playback / backup / configuration / Alarm / Motion warnings / PTZ control / Emap
• Other featuresPTZ (Speed ​​Dome) control
• Product dimensions (W - v - h mm)432x98x340
• Weight (kg)4.1
• Shipping Dimensions (w - v - h mm)530x115x406
• Shipping Weight (kg)6.44
• Operating voltage12V DC 3000 mA (power supply included)
