Product description Professional FULL HD Hybrid DVR 32 channel

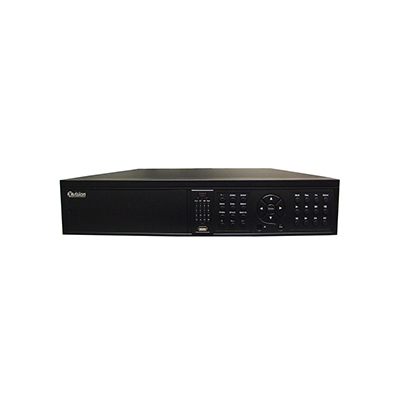

XP400H is a powerful hybrid DVR, designed for recording up to 32 cameras, in total 16 analog and 16 IP. These IP cameras can have any resolution up to 1080p Full HD. DVR is ideal for nightclubs, hotels, banks, schools, casinos, prisons, airports, etc..
DVR is equipped with two powerful processors to ensure high performance and super fast remote monitoring. It is available up to 24 TB of internal capacity for recording and can also connect up to 4 external eSATA drives with total storage capacity of 36TB.
Analog cameras are recording in full D1 (704x576) resolution and in real time, along with the audio for each camera. IP cameras are recording at resolutions up to 1080p which is full HD. 16 cameras can record at D1 resolution in real time, 8 cameras at 720p, or 4 at 1080p.
Back up is quick and easy thanks to built-in USB port that can be connected to a USB drive or USB key. Optional is also a DVD Writer drive, for backup to DVD. Dual Stream Internet and network connectivity is standard, as well as watching live video from Android, iOS (iPhone / iPad) and mobile phones and PCs with system Windows. For easy operation and setup the DVR is equipped with On Screen Display (GUI) and can be controlled using the front panel, remote control (supplied as standard), or mouse (optional).
Technical specifications:
Brand: Xvision Professional
Model number: XP400H
Camera/Audio Inputs: 16 analog inputs, 16 audio inputs
Alarm Inputs/Outputs: 16/1
Compression record: H264
Recording Rate / Resolution: 400 fps / 704x576, 200 fps / 1280x720, 100 fps / 1920x1080
Recording modes: Alarm/Motion Activated /continuous/planned
Maximum recording capacity: 24 TB
Multi Camera - Playing 16 cameras
Backup Method: USB Flash Drive, Network / Internet, DVD (with optional DVD burner), eSATA
Monitor Outputs: VGA, BNC, HDMI
Spot Monitor Output: BNC
Controls: Front panel, IR remote control, USB mouse (optional)
Network/Internet: Yes
Network/Internet from a mobile phone: From PC/Mac: Push Video, E-mail alerts, live view
Audio: 2 - way audio, playback, backup, images, PTZ control, Multi-Site/DVR Control
Configuration:
For Android: Push Video, E-mail alerts, live view, audio, 2 - way audio, playback, backup, images, PTZ control, Multi-Site/DVR Control configuration
For iPhone/iPad: Push Video, E-mail alerts, live view, audio, 2 - way audio, playback, backup, images, PTZ control, Multi-Site/DVR Control configuration
From Blackberry: E-mail alerts, live view, images, PTZ control, Mulity-Site/DVR Control
From Windows Mobile: E-mail alerts, Live View, audio, playback, backup, PTZ control, Multi-Site/DVR Control configuration
E-mail alerts: Yes (with pictures)
CMS Software Features: Compatible with XPR6A, XPR12A & XPR20A
Live view, playback, backup, configuration, alarm/motion alert, PTZ control, Emap
Additional features: Up to 8 remote users
PTZ (Speed Dome) Control
POS, E - SATA
Product dimensions (WHD in mm): 440x89x460
Weight (kg): 6 (without HDD)
Operating voltage: 100-240 V AC
