Professional CCTV system 4 x 960H bullet camera + DVR with 1TB

Manufacturer IQ CCTV
Products availability pre-order
Delivery time 1 - 3 weeks.
Yes! We Ship To US
Price excl. VAT U$ 449.16
Price incl. VAT U$ 539.00
- +

Product description Professional CCTV system 4 x 960H bullet camera + DVR with 1TB

Professional CCTV system 4 x 960H bullet camera + DVR with 1TB HDD - this 4 camera CCTV system is simple to use and includes 4 cameras and DVR that will record in HD 960H in real time. DVR is equipped with HDMI, VGA and BNC output for easy connection to a TV or monitor.

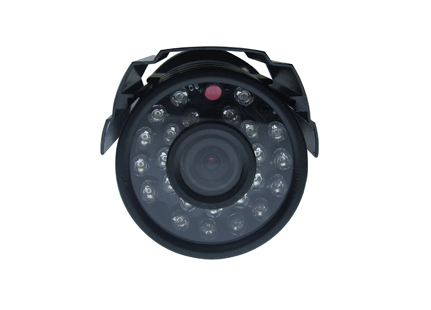

Cameras that are part of system are Bullet cameras HD960H IQC960V, offering quality 960H resolution. They are designed for wall mounting or ceiling in interior are very small and inconspicuous, so they are ideal for use in different areas.

Features:

● Complete 4-camera CCTV system
● 4 cameras in a rugged metal design, weatherproof HD resolution 960H 20m IR night vision and 50 ° wide-angle lens
● HD DVR 960H recorder for 4 cameras with 1TB storage capacity (up to 30 days recording) and remote access via smartphone, tablet, PC or Mac
● 18 m cable
● DVR is equipped with HDMI, VGA and BNC output for easy connection to a compatible TV or monitor
● Designed for easy DIY installation

CCTV cameras

Camera:

Brand: IQCCTV
Model Number: IQC960B - K
Style: Mini - Dome Camera
Water resistance: Yes (IP65)
Anti Vandal resistant: No
Mounting: for wall or ceiling
Dimensions (W - vh in mm): 92x81x92
Weight (kg): 0,26
Sensor type: 1/3 "color CMOS
DSP Type: Digital DSP IQ1
DSP Function: Automatic electronic shutter, automatic control noise, backlight compensation
Resolution: HD960H
Minimum illumination: 0,1 Lux (0 Lux IR On)
Night Vision: 20m IR night vision
Lens Type: Fixed
Lens Size: 4 mm
Viewing angle: 50 °
Operating voltage: 12V DC
Recommended power supply: 12V DC 1250 mA
Video output: BNC female
Audio output: No
Power supply: DC socket
RS485 Control: No
DVR

DVR:
Brand: IQCCTV
Model number: IQR960D4
Video Compression: H.264
Video system: NTSC / PAL
Video input / output: 4 CH input, 1 BNC, 1 VGA, 1 HDMI
Spot output: No
Audio Input / Output: 2 CH Input, 1 CH output (RCA)
Display resolution: PAL: 960x576 @ 25fps, NTSC: 960x480 @ 30fps
Display features: Single, Quad, SEQ
Recording Resolution: PAL: D1 mode: 360x288 (CIF), 720x288 (HD1), 720x576 (D1), 960H mode: 480x288 (WCIF), 960x288 (WHD1), 960x576 (WD1) NTSC: D1 mode: 360x240 (CIF), 720x240 (HD1), 720x480 (D1), 960H mode: 480x240 (WCIF), 960x240 (WHD1), 960x480 (WD1)
Upload speed: PAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 fps
Recording Mode: Continuous / manual / motion detection
Playback channels: 1/4 Ch
Playback speed: PAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 fps
DVD - RW: No
Sensor & Alarm I / O: No
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP & DDNS
HDD Interface: 1 SATA HDD, up to 4TB
Multiplex operation: live display, record, playback, backup and network
USB: 2 x USB (for mouse and backup / upgrade)
PTZ Control: Built-in RS485, support Pelco - P and Pelco - D
Mobile Surveillance: IQCMS - Android and iOS
CMS Software 64 CH DVR 256 pieces, no limit for user
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800 * 600, 1024 * 768, 1280 * 1024, 1440 * 900, 1920 * 1080
HDMI 1080p
Power supply: 12V DC 2000 mA
Fan: No
On/Off Switch: No
Remote Control: Yes
Rack Mount Size in (U): 1
Dimensions (WxHxD): 301x46x210mm
