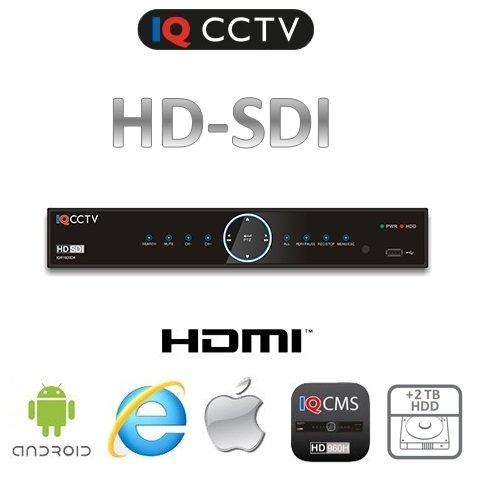

HD SDI DVR 8 Channel Full HD, HDMI, VGA + 2TB HDD

HD SDI DVR for 8 cameras Full HD, HDMI, VGA + 2 TB HDD for storage of records. This 8 channel DVR is the latest of IQCCTV and offers high resolution up to 1080p, real time recording and playback. The DVR also has VGA and HDMI outputs. HD - SDI camera systems allow you to record video in 1080p Full HD. These systems use a standard RG59 coaxial cable, which is simple to install, to operate and to use, as standard CCTV systems.

Model has several modes of alarm recording, supports HDD and manages inputs of video alarms. Back up of files is fast and easy with built-in USB port. DVR provides a complete record 1080p in real time and supports PTZ cameras via RS - 485 for easy operation and setup. The DVR is equipped with On Screen Display (GUI) and can be controlled by touch front panel, remote control or mouse (both are supplied as a standard).

Features:

• ● Recording Speed1080p 100fps real time (25fps on camera)
• ● 8 audio inputs
• ● Remote access via smartphone, tablet, PC and Mac
• ● E-mail alerts
• ● VGA and HDMI monitor outputs
• ● Front panel, mouse, IR remote control or
• ● 8 alarm inputs
• ● 2 alarm outputs
• ● Support 1 hard drive up to 4TB (not included)
• ● Estimated space for recording per day108 GB at 1080p and 25 frames per second, 43 GB at 1080p and 10 frames per second, 22,5 GB at 1080p and 5 frames per second

Technical specifications:

• BrandIQCCTV
• Model numberIQR1920D8
• Video CompressionH.264
• Video systemNTSC / PAL
• Video input/output8 CH input, 2 CH output (HDMI VGA.)
• Spot outputNo
• Audio input/output8 CH input, 1 CH output (RCA)
• Display resolutionNTSC: 1920x1080p @ 30fps (each channel)
• Display featuresSingle, Quad, SEQ
• Recording Resolution1920x1080p
• Recording Speed25 fps (each Ch)
• Recording ModeContinuous / manual / motion detection / sensor / alarm recording
• Playback channels1/4/9 Ch
• Playback rate30fps (Each Ch)
• DVD - RWNo
• Sensor & Alarm I / O4-channel sensor input, 1 CH alarm output
• ESATA1 Only for backup
• NetworkLAN, DHCP, Dynamic IP & DDNS
• HDD Interface1 SATA HDD, up to 4TB
• Multiplex operationlive view, record, playback, backup and network
• USB2 x USB (for mouse and backup / upgrade)
• PTZ ControlBuilt-in RS485, support Pelco - P and Pelco - D
• Mobile SurveillanceIQCMS - Android and iOS
• CMS Software 64 CH DVR 256 pieces, no limit for user
• Web BrowserWindows: Internet Explorer Mac: Safari, Chrome, Firefox
• VGA800 * 600, 1024 * 768, 1280 * 1024, 1440 * 900, 1920 * 1080
• HDMI 1920x1080p
• Power supply12V DC 2000 mA
• Fan2x case (40x40mm), 1xCPO (40x40mm)
• On/Off SwitchYes
• Remote ControlYes
• Rack Mount Size in (U)1
• Case Dimensions (WxHxD)301x46x210mm
