Forklift camera system wireless - WiFi camera + 7" monitor + 5200 mAh battery

SKU: 19-169 I have a question
Manufacturer PROFIO
Products availability in stock
Products are in stock, ready to send.
Yes! We Ship To US
Price excl. VAT U$ 476.66
Price incl. VAT U$ 572.00
- +

Product description Forklift camera system wireless - WiFi camera + 7" monitor + 5200 mAh battery

Forklift camera system wireless - WiFi camera and 7" monitor with 4 AV inputs + 5200 mAh battery. The camera is designed to be easily installed on any type of forklift. Camera set for forklifts - special cameras for forklifts from Profio Electronics. This is a special camera designed specifically for forklift trucks. These trucks carry a certain kind of risk when handling them. They are mostly driven quickly and loaded with goods. The height and size of the load are different, which makes it difficult for the driver to determine the position of the forks and thus the handling of the goods itself .

The forklift camera is designed and positioned to clearly show the position of the forks and the surrounding area, giving the driver a larger field of view. It reduces blind spots during operation and improves work efficiency. Last but not least, it contributes to higher safety when working with the forklift truck. The camera has a strong magnet on the bottom side for easy installation without screws. The camera has IP69 protection.

Camera for forklifts with LED backlight and battery power supply + 7" Monitor

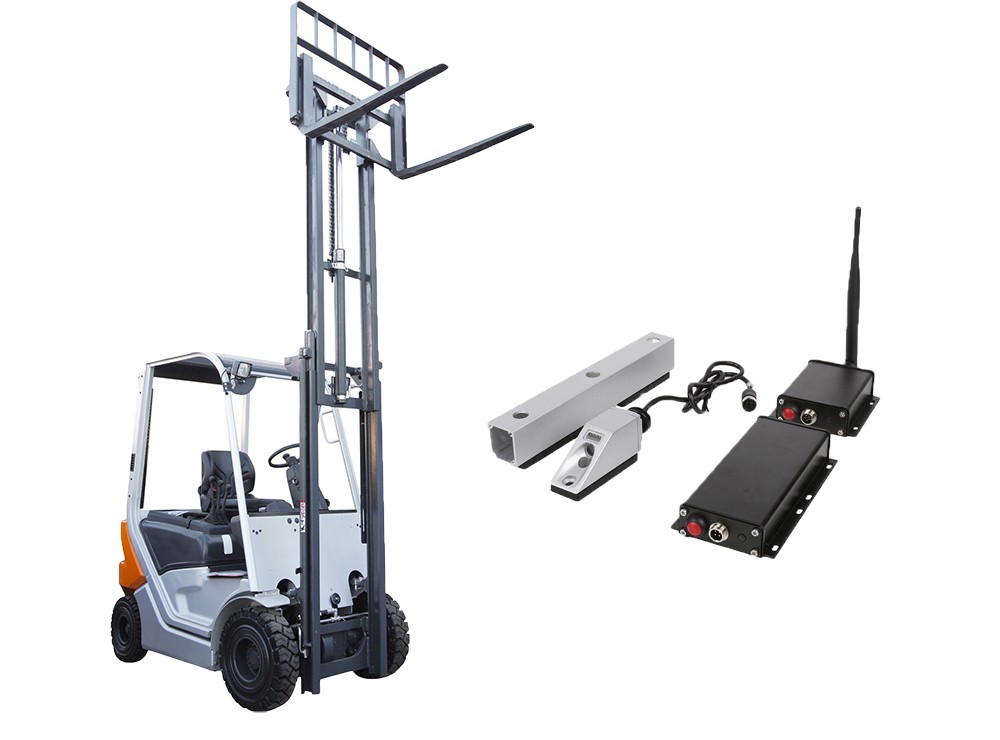

camera SET for forklift - WiFi camera and 7" monitor

The camera is designed to be easily installed on any type of forklift. It is equipped with an LED light that turns on whenever the camera is switched on and helps visibility during handling. The truck camera has a VGA resolution and is connected to a 7-inch monitor via a wireless WIFI connection. The operating temperature ranges from -20 to +70°C. The camera is powered by a 5200mAh battery and is installed behind the fork on the forklift truck frame. It is connected to the monitor using a WiFi Transmitter and Receiver. The signal is stable and the image is clear. It is not disturbed by any metal parts of the forklift or operation. The battery is easily removable so it can be charged after work. This system has been designed to be universal for every type of forklift truck and to work under all conditions.

Cameras for forklift wifi with LED backlight and battery power + 7" Monitor

Cameras for forklift trucks with monitor

Compact 7 inch work monitor for 4 work cameras with VGA resolution + remote control. A new generation of cameras designed for forklift trucks, which brings you a clear image and all the necessary technical means for safe operation and machine control. The monitor allows switching between four cameras (individually displayed image of one or all four cameras next to each other). The shape of the special camera is adapted for mounting on a forks, and its image is transmitted wirelessly via WiFi. You can supplement the set with another 3 VGA cameras from our offer, either with night vision or in the version of a powerful LED work light with a camera.

Set specially designed for forklifts

Camera for forklift

On each camera, you can set, for example, image mirroring, or brightness or contrast for better visibility via the monitor. With this system, you will see exactly the blind spot that occurs when loading with a forklift. This will prevent collisions and damage to goods. With this set, every loading of goods, which is often limited in time, becomes more efficient. Thanks to the additional 3 additional cameras, you can turn your truck into a comfortable and safe tool for your daily demanding work in narrow warehouse spaces.

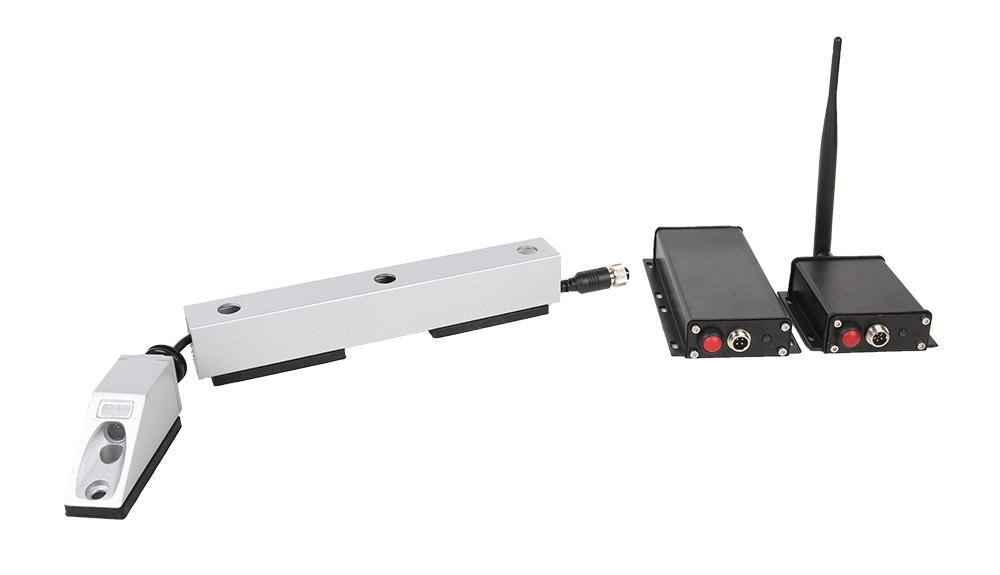

Forklift truck - special wireless camera + 7" monitor with 4 AV inputs with battery power

forklift camera system wifi cameras

The cameras are connected to the monitor via 4pin cables. The monitor has cables for connecting cameras and powering the monitor. The cameras are powered directly from the monitor, so it is no longer necessary to connect them separately to a source, which simplifies installation and you can place the camera anywhere on the vehicle. The monitor also includes switching cables, through which you can connect the camera to the reversing lights of the forklift truck. When reversing, the reversing camera will automatically appear on the monitor in full screen. The monitor has its own metal bracket with which you can attach it to the necessary place. There is a metal bar on the back of the monitor to which other universal holders from our offer can be attached.

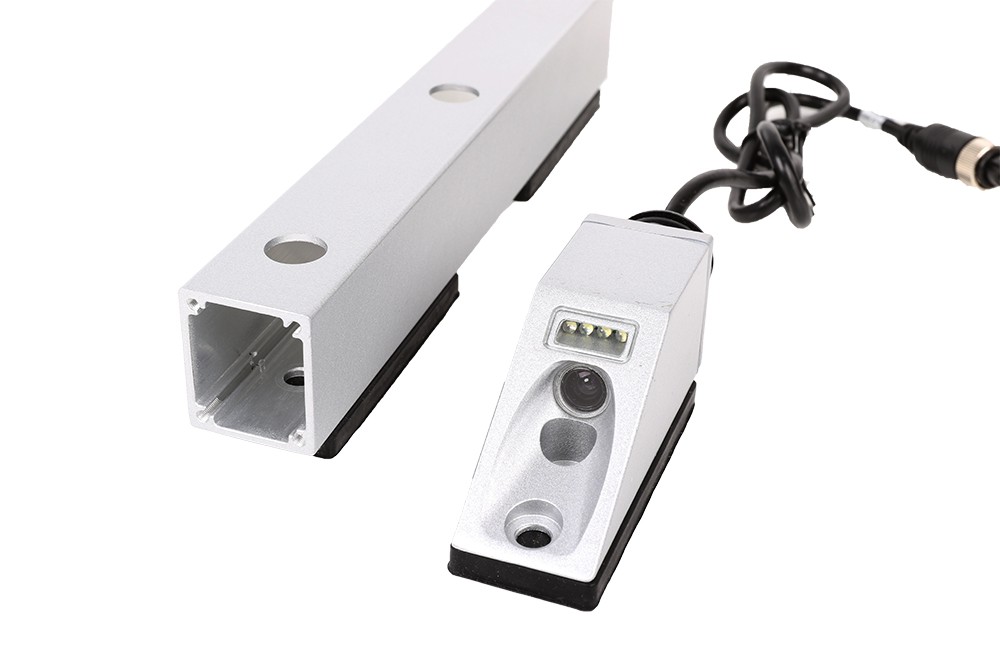

Camera with LED lighting and universal magnetic attachment

camera with LED lighting for forklift trucks

Features:

Special camera for forklifts
Wireless WIFI connection of camera with monitor
7 inch reversing monitor
Universal connection method with a strong magnet
Wide setting options in the display menu
Option to connect three additional VGA cameras
Various camera display options

Model: PROFIO FORKLIFT S58

Technical specifications of the monitor:

7" TFT LCD monitor
System: PAL/NTSC
Aspect ratio: 16:9
Monitor resolution: 800 x 480
Inputs: 4x
Contrast: 300:1
Possibility of setting: brightness, contrast, color
Power supply: DC 12V-24V
Power consumption: 5W
Working temperature: -10ºC to 60ºC
Storage temperature: -20ºC to 70ºC
Dimensions: 182 x 135 x 24 mm

Technical specifications of the camera:

Sensor: 1/3 CMOS
Water resistance: IP69
TV system: NTSC/PAL
Effective pixels: 968x488
Resolution: 700 TVL
Minimum illumination: 0.1 Lux (day), 0 Lux with IR on
IR LED: yes, 4 pcs
Video output: 1.0 Vp-p/75 Ohm
Power supply: DC12V
Lens: 5,68 mm
Viewing angle: 53°
Operating temperature: -20 to +70°C
Operating humidity: up to 95% RH


Technical specifications of the Wifi receiver and transmitter:

Power supply: DC12-32V
TV system: NTSC/PAL
Frequency: 2400-2483.5 MHz
Range: 120 meters
Receiving sensitivity: 12,6V-78dBm
Video decoder: MPEG4
Transmission power: 18dBm
Speed: 12Mbps
Operating temperature: -20 to +70°C
Operating humidity: up to 90% RH


Technical specifications of the battery:

Capacity: 5200mAh
Voltage: 12V
Current: 0,7-2A
Charging: 9 hours at 0,7A; 4 hours at 2A
Operating temperature: -20 to +55°C
Operating humidity: up to 85% RH

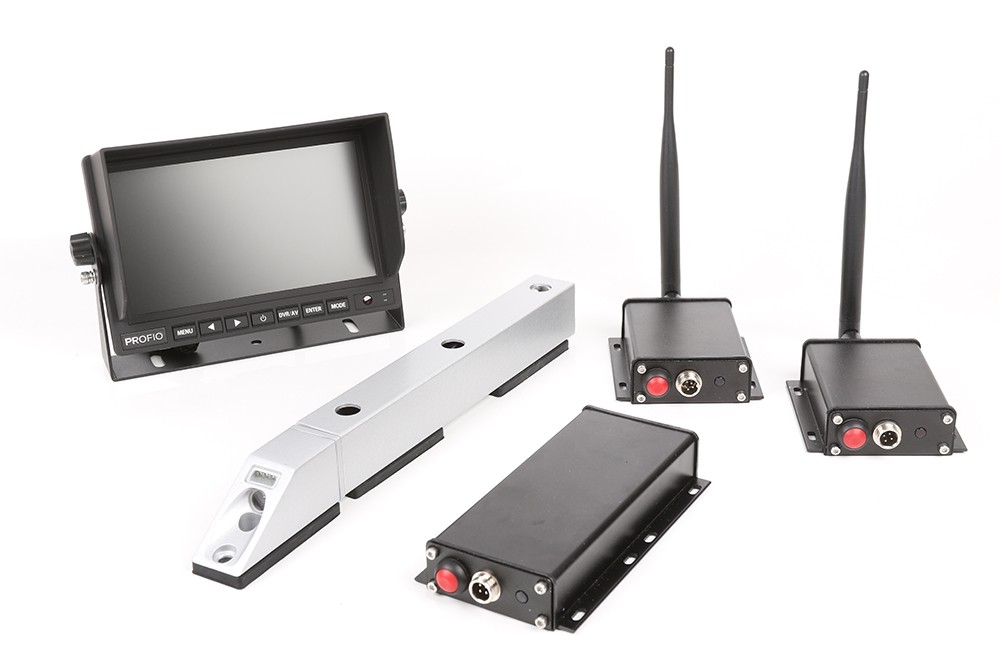

Package contents:

1x Camera with magnetic holder
1x Wifi receiver
1x Wifi transmitter
1x Set of cables for connection
2x Antenna
1x Battery
1x Charging adapter
1x Set of cables
1x 7" LCD monitor
1x Console for mounting the monitor
1x Cable with 4 inputs for cameras
1x Remote control
1x Set of screws
1x Manual
