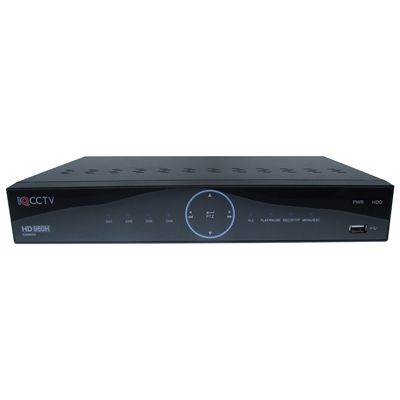

DVR with 8 inputs, real time 960H, VGA, HDMI

This 8 - channel DVR is the latest from IQCCTV and offrers 960H High Definition recording in almost real time. The DVR also has VGA and HDMI outputs. Model has several modes of alarm recording, supports HDD and manages inputs of video alarms. Back up of files is fast and easy with built-in USB port.

IQR960D8 offers recording in HD 960H, WD1, and WHD1 WCIF almost in real time and supports PTZ cameras via RS - 485 for easy operation and setup. The DVR is equipped with On Screen Display (GUI) and can be controlled using the new touch pad, remote control or mouse (both are supplied as standard).

Features:

• • H.264 video compression
• • Supports the following recording resolutionsCIF, HD1, D1, HD960H, WCIF, WHD1 & WD1
• • 8 channel video and 2 channel audio (microphone available separately)
• • HDMI, BNC and VGA outputs
• • Simple operation via USB Mouse, touch panel, remote control, or network
• • Easy backup to USB flash driver, or via the Internet
• • Smart Phone and Tablet Access via our free App IQCMS
• • Remote / Network access from PC and Mac
• • Intelligent motion detection starts recording only at movement and starts instantly sending email alerts including images

Technical specifications:

• BrandIQCCTV
• Model numberIQR960D8
• Video CompressionH.264
• Video systemNTSC / PAL
• Video input / output8 CH input, 1 BNC, 1 VGA, 1 HDMI
• Spot outputNo
• Audio Input / Output2 CH Input, 1 CH output (RCA)
• Display resolutionPAL: 960x576 @ 25fps, NTSC: 960x480 @ 30fps
• Display featuresSingle, Quad, SEQ
• Recording ResolutionPAL: D1 mode: 360x288 (CIF), 720x288 (HD1), 720x576 (D1), 960H mode: 480x288 (WCIF), 960x288 (WHD1), 960x576 (WD1) NTSC: D1 mode: 360x240 (CIF), 720x240 (HD1), 720x480 (D1), 960H mode: 480x240 (WCIF), 960x240 (WHD1), 960x480 (WD1)
• Recording speedPAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 frames per second
• Recording ModeContinuous / manual / motion detection
• Playback channels1/4 Ch
• Playback speedPAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 frames per second
• DVD - RWNo
• Sensor & Alarm I / ONo
• IR Extender PortNo
• NetworkLAN, DHCP, Dynamic IP & DDNS
• HDD Interface1 SATA HDD, up to 4TB
• Multiplex operationlive view, record, playback, backup and network
• USB2 x USB (for mouse and backup / upgrade)
• PTZ ControlBuilt-in RS485, support Pelco - P and Pelco - D
• Mobile SurveillanceIQCMS - Android and iOS
• CMS Software 64 CH DVR 256 pieces, no limit for user
• Web browserInternet Explorer, Safari, Chrome, Firefox
• VGA800 * 600, 1024 * 768, 1280 * 1024, 1440 * 900, 1920 * 1080
• HDMI 1080p
• Power supply12V DC 2000 mA
• FanNo
• On/Off SwitchNo
• Remote ControlYes
• Rack Mount Size in (U)1
• Dimensions (WxHxD)301x46x210mm
