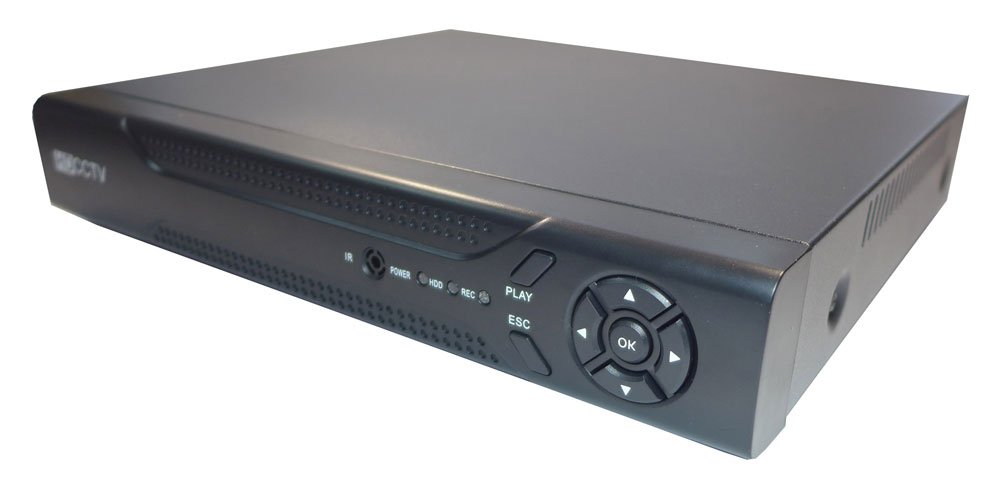

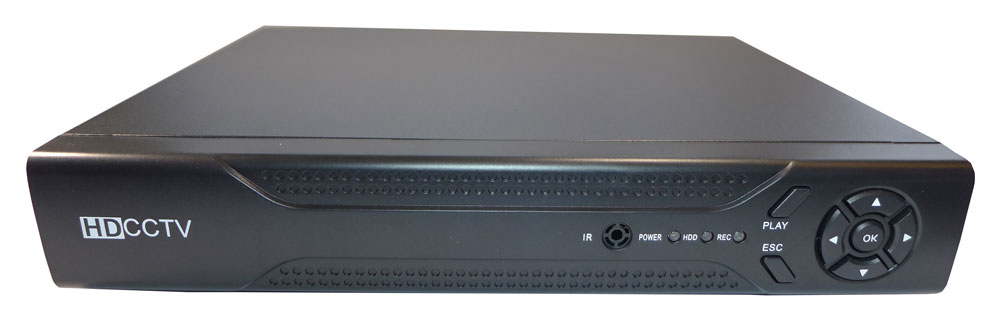

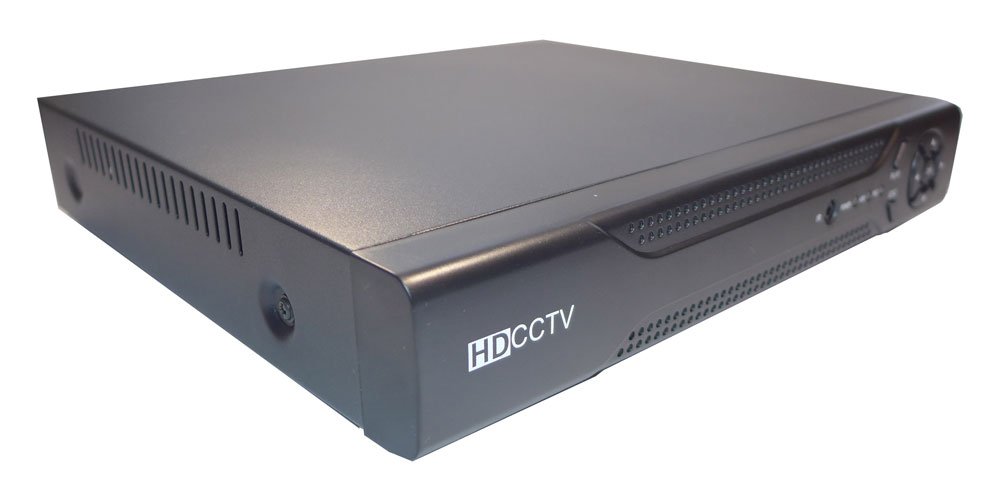

DVR recorder AHD (HD720p, 960H) - 4 Channel + 1TB HDD
Product description DVR recorder AHD (HD720p, 960H) - 4 Channel + 1TB HDD
DVR recorder AHD (HD720p, 960H) - 4 channel, has mobile PC access (via Internet) with 1TB HDD (hard disk drive to store your records). The hybrid recorder (HD720p, 960H) offers the most modern digital recording via a standard cables. The unit can record camera image of 720p or 960H cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. DVR unit can record all 4 cameras simultaneously 25fps at 720p or 960H resolution.
DVR provides output to a monitor with a VGA or HDMI. The recorder can connect 4 cameras. Easy installation of cameras "Plug and Play", just connect one cable for power supply and video to one camera and you can record. Easy operation with simple on-screen menu that you can control with a USB mouse, touchpad and remote control via the network.
As soon as you connect the set to a network (the Internet), you can easily view and control from anywhere in the world using a smartphone (Android), tablet, PC and Mac (iOS) computers. The DVR can be connected to hard drive up to 4 TB (1TB included) and it also has 4 audio inputs and 1 output if you wish to add a sound.

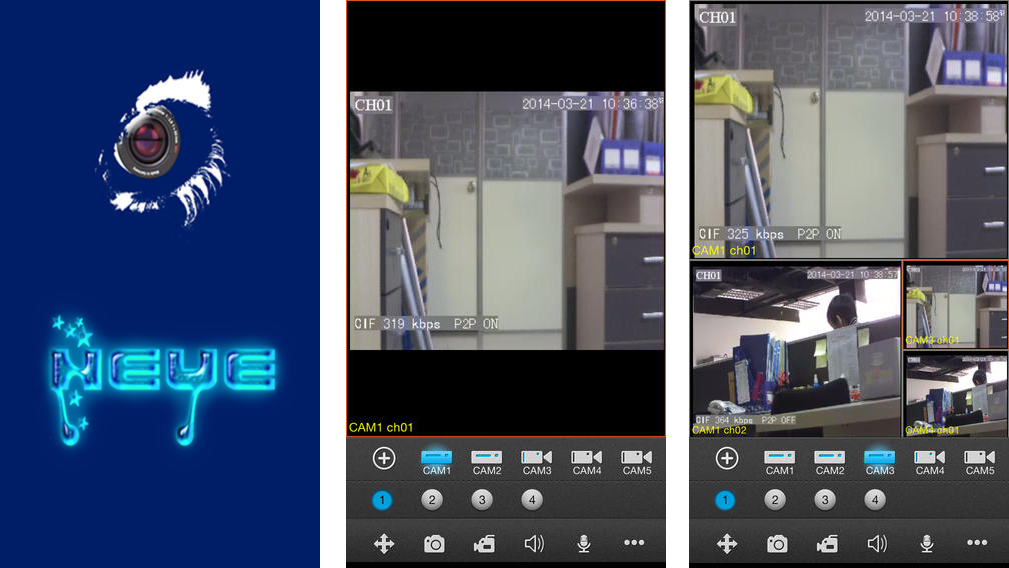

With application called N_EYE you can set up remote devices on smartphones or tablets, and you will get e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.

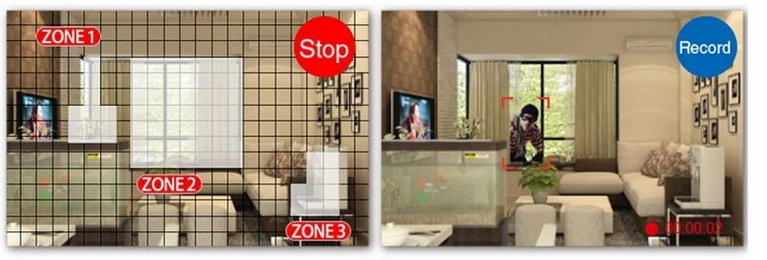

Function of advanced Motion Detection will ensure the start of recording if is captured any movement in the monitored area. This is a digital motion detection (not the classical motion sensor) which is much more accurate and efficient. Using the supplied software you can set the days and hours when will be this function activated.
For easy operation and setup, the DVR is equipped with On Screen Display (GUI) and can be controlled using the new function of touchpad or mouse (both are supplied as standard).
By using the easy camera settings, the system enables very easy settings how camera should record, either when motion is detected or continuous recording. You can set up exactly the day and hour of recording of cameras. If you need during working hours continuous monitoring of area, just set the time, for example from 8:00 to 17:00 the cameras will record continuously and from 17:00 only when motion is detected (possible distortions of space), the sstem will inform you about that via e-mail alert. The advantage of the multiple camera system is, that you can adjust each camera separately, what gives you a great variability in the monitoring.
Features:
Recording: 960H HD and HD 720p 100fps real-time (25fps camera)
4 Audio inputs
Remote access via Smartphone, tablet, PC and Mac
E-mail alerts
VGA, BNC and HDMI monitor outputs
Control via front panel or USB mouse (supplied)
Support of 1 hard disk up to 4TB (not included)
Support of recording 4 x HD 720p or 2 x high resolution of 720p HD cameras, and 2 x 960H or 4x 960H
Technical specifications:
Model: OAHD-D4
Video compression: H.264
Video system: PAL / NTSC

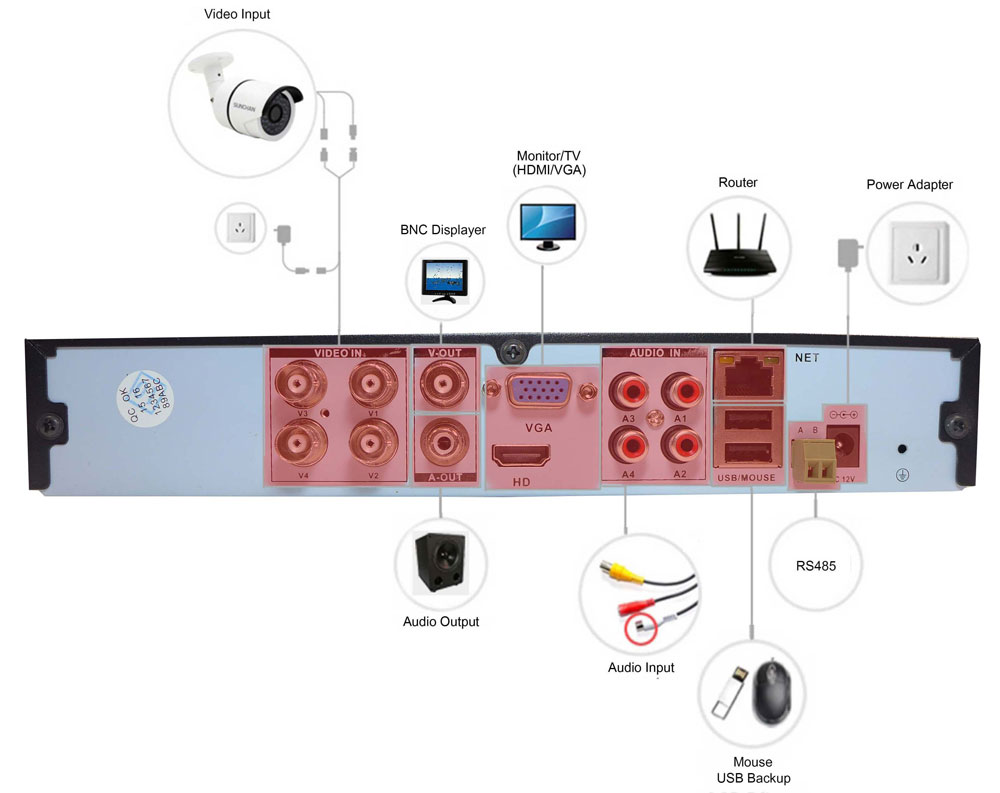

Video input/output: 4 Ch. inputs, 1 VGA, 1 HDMI, 1 BNC
Spot output: No
Audio input/output: 4 Ch. inputs, 1 Ch. output (RCA)
Display resolution: PAL: 960x576 / 1280x720 @ 25fps
Display function: Single, Quad, SEQ
Recording resolution: PAL: 960x576 (960H), 1280x720 (720p)
Recording speed: PAL: 960H Mode / 720P Mode: 25fps
Recording mode: Continuous / Manual / Motion Detection
Playback channels: 1/4 Ch.
Frame rate: PAL: 960H Mode / 720P Mode: 25fps
DVD-RW: No
Sensor and Alarm I/O: No
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP and DDNS
HDD Interface: 1 SATA HDD up to 4TB
Multiplex Operation: Live view, recording, playback, backup and network
USB: 2 x USB (for mouse and back-up / upgrade)
PTZ control: Yes
Mobile Surveillance: N_Eye - Android and iOS
CMS Software: Yes
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
HDMI 1080P
Power supply: DC 12V 2000 mA
Fan: No
On/Off Switch: No
Remote control: Yes
Dimensions (WxHxD): 255x42x220mm

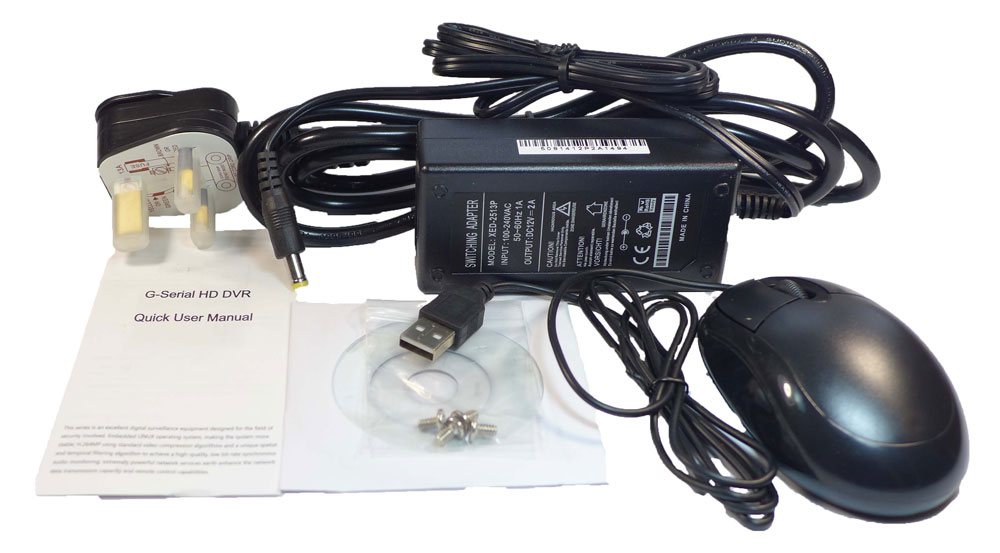

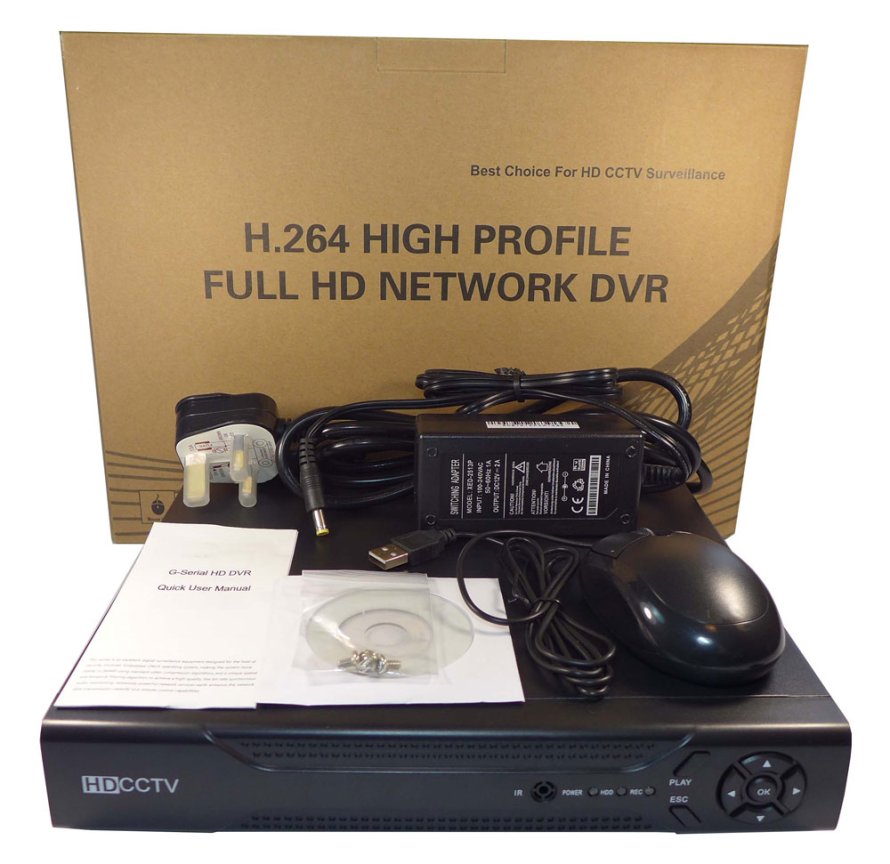

Contents:
1x DVR - OAHD-D4
1x 1TB HDD
1x Power Adapter
1x USB mouse
1x Installation CD
1x Manual
