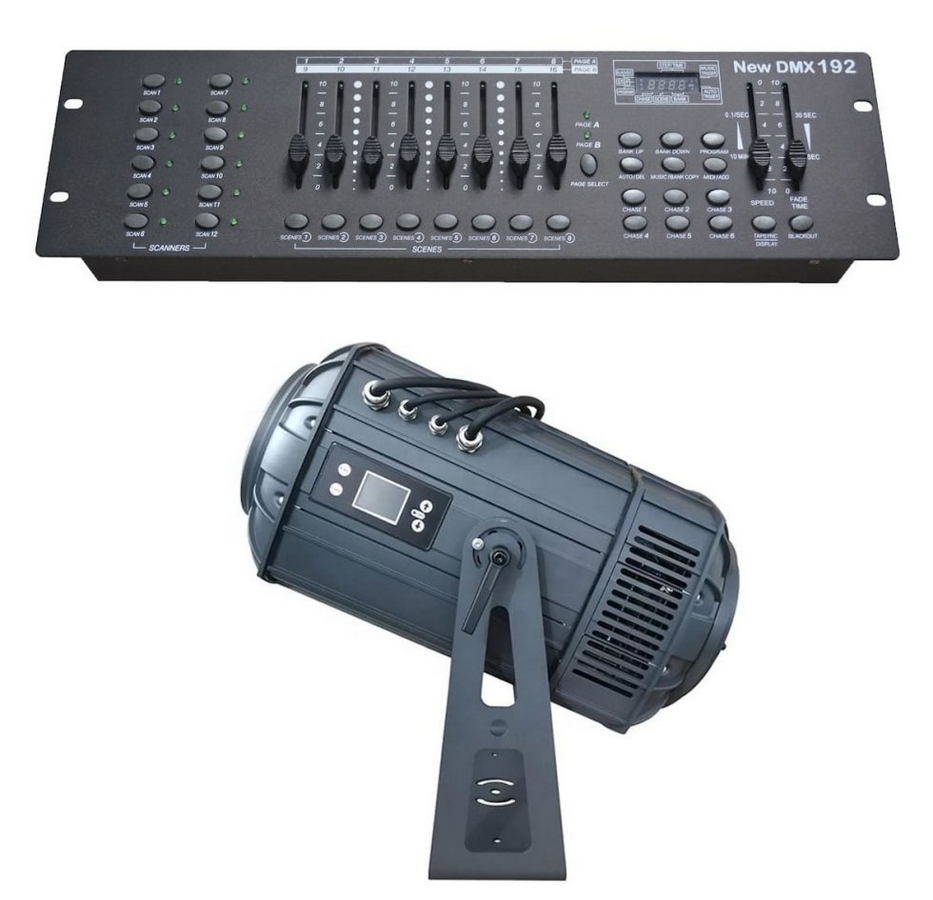

DMX Controller 192 Controller – setting projection effects

DMX Controller 192 Controller – projection effects setting is a device designed to control lighting and projection effects for DMX compatible Gobo projectors. This controller allows you to precisely control and customize the projected visual effects according to your needs. Using DMX 192, you can easily adjust the size of the projected logo (ZOOM function), set scenes, change individual projected logos or images and regulate their rotation speed. Thanks to simple configuration via DMX protocol, the controller connects to the GOBO projector without any problems, allowing you to expand creative possibilities and create unique visual experiences.

Compatible only with selected GOBO projectors via DMX

The DMX Controller allows you to change the intensity of the logo light, switch between constant light and flashing, or you can simply change the color of the logo. The DMX control panel also allows you to adjust the projected logo, such as focusing, enlarging, or reducing the logo. You can also make the logo rotate via DMX.

Specifications:

• Operating voltage: DC 9V - 12V, minimum 500 mA
• Maximum operating temperature: 45 °C
• Data input: locking 3-pin XLR connector (male)
• Data output: locking 3-pin XLR connector (female)
• Data pin configuration: pin 1 – ground, pin 2 – (-), pin 3 – (+)
• Protocols: DMX-512 USITT
• Dimensions: 482 x 133 x 82 mm
• Weight: 2 kg

Package contents:

• 1 DMX 192 Controller – universal controller for projection effects
• 1x Manual
