Camera System 3x 1080P - 30 meters IR cameras with DVR

Camera System 3x 1080P - 30 meters IR cameras with HD SDI DVR.  This CCTV set offers a complete solution for FULL HD cameras and HD SDI DVR.. This CCTV and DVR will record in Full HD 1080p resolution in real time. DVR is equipped with HDMI, VGA and BNC output for easy connection to a TV or monitor. The case of the camera is metal and is vandal-proof design (anti damage prevention).

HD SDI DVR allows in case of need to connect other camera. The recorder must be connected to HDD (hard disk drive), which you can buy directly in our e-shop as another accessories. Easy installation of camera "Plug and Play", only connect included 20 m cable for power supply and video on one camera and can you can start record, so there is no required any technical knowledges. On the camera cable is built-in mini joystick to adjust the camera at attached screen without the need for connecting a USB mouse. The cameras have FULL HD resolution, which quality is many times higher compared to older resolutions (see table below).

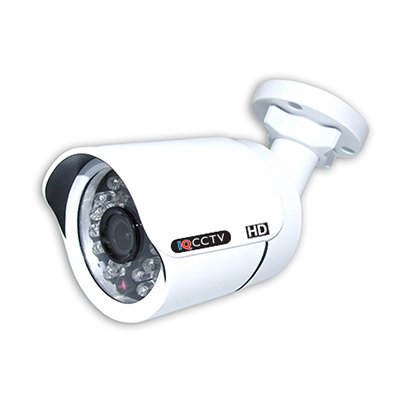

The camera also has available IR night vision up to 30 meters and is waterproof (IP66). It has built-in fixed wide-angle lens with a viewing angle 78º. This bullet camera  is designed for mounting on a wall or on the ceiling of interior and is very small with dimensions 60x60x165 mm and inconspicuous, making it ideal for use in various areas.

Easy operation with a simple menu on the screen that can be controlled through USB mouse, touch panel, remote control and via network. As soon as you connect the set to a network (the Internet), you can easily view and control cameras from anywhere in the world using a smartphone (Android), tablets, PC and Mac (iOS) computers. IQCMS application for tablets and smartphones you can download for free in the app store and with using of  "Snap Shots" function you can set up e-mail alerts which are really useful.

Advanced Motion Detection function will ensure you the launch of recording when any movement in the monitored object is captured. This is a digital motion detection (it is not classic motion sensor), which is much more accurate and efficient. Using the supplied software you can set on which day and hour this function should be activated.

Camera Specifications:

• 1080p (1920x1080) resolution
• 0.0003 lux light sensitivity
• 30 meters IR night vision
• 3,6 mm HD Megapixel lens with 78 ° viewing angle
• Wide Dynamic Range
• Digital Slow Shutter
• 3D Digital Noise Reduction
• High Light suppression
• Additional analog BNC video output
• Holder for cable
• Weather resistant - IP66
• Joystick to control the camera settings

HD SDI DVR specification:

• Recording1080p: 100fps in real time (25fps camera)
• 4 Audio inputs
• Remote access via smartphone, tablet, PC and Mac
• Alerts by e-mail
• VGA and HDMI monitor output
• Control via front panel, mouse, or IR remote control
• 4 Alarm inputs
• 1 Alarm output
• The estimated consumption of space for one camera per one day: 108 GB to 1080p and 25fps, 43 GB to 1080p and 10 frames per second, 22,5 GB to 1080p and 5fps

Cameras Technical Specifications:

• BrandIQCCTV
• Model numberIQS1920B
• StyleBullet Camera
• WaterproofYes (IP66)
• Anti-vandalNo
• Mountingon wall or ceiling
• Dimensions (WHD in mm)60x60x165
• Weight (kg)0,4
• Sensor typeSensor 1080P
• DSP TypeIQSDI
• DSP functionsWide Dynamic Range, Digital Slow Shutter, 3D Digital Noise Reduction, High Light suppression
• Resolution1080p
• Minimum illumination0.0003 Lux
• Night Vision30m IR night vision
• Lens Type Mega Pixel Lens
• Lens size3,6 mm
• Viewing angle78 °
• Operating voltage12V DC 500 mA
• Recommended Power12V DC 1250 mA
• Video OutputBNC socket
• Audio outputN/A
• Power supplyDC socket
• RS485 ControlNo

Technical specification HD SDI DVR:

• BrandIQCCTV
• Model numberIQR1920D4
• Video CompressionH.264
• Video systemNTSC / PAL
• Video input / outputInput 4 CH, 2 CH output (VGA. HDMI)
• Audio input / outputInput 2 CH, 1 CH output (RCA)
• Display resolutionNTSC: 1920x1080p @ 30 fps (each channel)
• View functionsSingle, Quad, S.E.Q
• Recording resolution1920x1080p
• Recording ModeContinuous / Manual / motion detection / sensor / alarm recording
• Playback Channels1/4 Ch
• Frame rate25fps (Each CH)
• DVD - RWNo
• Sensor & Alarm I / O4-channel sensor input, 1 CH alarm output
• ESATA 1 For backup
• NetworkLAN, DHCP, Dynamic IP and DDNS
• HDD Interface1 SATA HDD, up to 4 TB
• Multiplex OperationLive display, recording, playback, backup and network
• USB2 x USB (for mouse and backup / upgrade)
• PTZ ControlBuilt-in RS485, supports Pelco - P and Pelco - D
• Mobile SurveillanceIQCMS - Android and iOS
• CMS SoftwareCH 64, 256 pcs DVR, no limit for user
• Web browserWindows: Internet Explorer, Mac: Safari, Chrome, Firefox
• VGA800 * 600, 1024 * 768, 1280 * 1024, 1440 * 900, 1920 * 1080
• HDMI1920x1080p
• Power supplyDC 12V 2000 mA
• Fan2 case (40x40mm), 1xCPO (40x40mm)
• On/Off SwitchYes
• Remote controlYes
• Rack Mount size in (U)1
• Case Dimensions (WxHxD)301x46x210mm

In the table below you will find information about back up of records at continuous recording of cameras in a different frame rate of cameras (4 cameras recording at 1080p).

DVR frame rate	1TB	2TB	3TB	4TB
25 fps (real time)	2 days	5 days	7 days	9 days
10 fps	6 days	12 days	17 days	23 days
5 fps	11 days	22 days	33 days	44 days

By using the setting, the camera system can very easy configure how the cameras will be recording,  whether if motion is detected or at continuous recording. You can set exactly the day, the hour, when the cameras will work. If you need during working hours continuous monitoring, you can set the monitoring hours from 8:00 to 17:00 and cameras will record continuously, and from 17:00 only when motion is detected (possible disruption of the space), the system will alert you via email. At the multiple cameras system, each camera can be set separately, what provides a great variability in the monitoring.

Package Contents:

• 3x Camera IQC1920B
• 1x DVR IQR1920D4
• 3x 20 m BNC cables
• 2x power adapter
• 3x Set of screws
• 1x Manual

If you are interested in an individual solution of camera system, the selection of cameras and DVR respectively NVR and other accessories according to your needs, please contact us by email at: info@efeel.eu
