Camera set 960H with 1 bullet camera with 20m IR + DVR with 1TB

Camera set 960H with 1 bullet camera with 20m IR + DVR with 1TB HDD (The 1TB hard drive will store up to 40 full days of recording). The CCTV camera system is simple to use and contains one bullet camera and DVR recorder with 1TB HDD which will record in HD 960H in real time. DVR is equipped with HDMI, VGA and BNC output for easy connection to a TV or monitor. DVR recorder has an intuitive interface for easy configuration and setting.

The camera uses the latest 960H "higher resolution" of IQ CCTV technology, which brings the best possible quality using analog CCTV. 960H is the new standard for traditional CCTV systems, which provides 30% greater resolution compared to the systems older than 1 year and 500% higher resolution than 5 years systems.

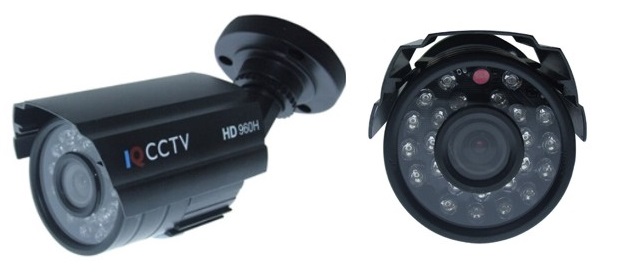

The camera has also IR night vision of distance of 20 meters (which is activated automatically upon detection of low lighting) and is waterproof (IP65). The cameras, which are part of the system, are Bullet cameras HD960H IQC960V with mini sizes 59x55x148 mm, and are intended for mounting on a wall or on the ceiling of interior and are very small and inconspicuous, making it ideal for use in various areas.

The recorder allows in case of need to connect other 3 cameras. Easy installation of camera "Plug and Play", only connect one cable for power supply and video on one camera and can you can start record. Easy operation with a simple menu on the screen that can be controlled through USB mouse, touch panel, remote control and via network. As soon as you connect the set to a network (the Internet), you can easily view and control cameras from anywhere in the world using a smartphone (Android), tablets, PC and Mac (iOS) computers. IQCMS application for tablets and smartphones you can download for free in the app store and with using of  "Snap Shots" function you can set up e-mail alerts which are really useful.

Advanced Motion Detection function will ensure you the launch of recording when any movement in the monitored object is captured. This is a digital motion detection (it is not classic motion sensor), which is much more accurate and efficient. Using the supplied software you can set on which day and hour this function should be activated.

Excellent performance/price ratio. One of the best selling sets.

Features:

• ● Complete CCTV camera system
• ● Bullet camera in a durable metal design, weather resistant with HD 960H  resolution, 20m IR night vision and 50 ° wide-angle lens
• ● HD DVR 960H recorder for 4 cameras with 1TB capacity of the record (up to 40 days recording with one camera) and remote access via smartphone, tablet, PC or Mac
• ● 18 m cable for connecting (included)
• ● DVR is equipped with HDMI, VGA and BNC output for easy connection to compatible TV or monitor
• ● Designed for easy installation DIY

Camera:

• BrandIQCCTV
• Model numberIQC960B - K
• StyleBullet Camera
• WaterproofYes (IP65)
• Anti-vandalNo
• Mountingon wall or ceiling
• Dimensions (WHD in mm)59x55x148
• Weight (kg)0,26
• Sensor type1/3 "color CMOS
• DSP TypeDigital DSP IQ1
• DSP FunctionAutomatic electronic shutter, automatic control of noise, backlight compensation
• ResolutionHD960H
• Minimum illumination0.1 Lux (0 Lux IR - ON)
• Night Vision20m IR night vision
• Lens TypeFixed
• Lens Size4 mm
• Viewing angle50 °
• Operating voltage12V DC 380 mA
• Recommended power supply12V DC 500 mA
• Video OutputBNC socket
• Audio OutputNo
• Power supplyDC socket
• RS485 ControlNo

DVR:

• BrandIQCCTV
• Model numberIQR960D4
• Video CompressionH.264
• Video systemNTSC / PAL
• Video Input/Output4 CH input, 1 BNC, 1 VGA, 1 HDMI
• Audio Input/Output2 CH  input,1 CH output (RCA)
• Display resolutionNTSC: 960x576 @ 25fps, NTSC: 960x480 @ 30fps
• View functionsSingle, Quad, S.E.Q
• Recording ResolutionPAL: D1 mode: 360x288 (CIF), 720x288 (HD1), 720x576 (D1), 960H mode: 480x288 (WCIF), 960x288 (WHD1), 960x576 (WD1) NTSC: D1 mode: 360x240 (CIF) 720x240 (HD1), 720x480 (D1), 960H mode: 480x240 (WCIF), 960x240 (WHD1), 960x480 (WD1)
• Recording speedPAL: D1 Mode / 960H mode: 25fps, NTSC: D1 Mode / 960H mode: 30fps
• Recording ModeContinuous / Manual / Motion detection
• Playing Channels1/4 Ch
• Playing speedPAL: D1 Mode / 960H mode: 25fps, NTSC: D1 Mode / 960H mode: 30fps
• DVD - RWNo
• Sensor & Alarm I/ONo
• IR Extender PortNo
• NetworkLAN, DHCP, Dynamic IP and DDNS
• HDD Interface1 SATA HDD, up to 4 TB
• Multiplex OperationLive display, recording, playback, backup and network
• USB2 x USB (for mouse and backup/upgrade)
• PTZ ControlBuilt-in RS485, supports Pelco - P and Pelco - D
• Mobile SurveillanceIQCMS - Android and iOS
• CMS SoftwareCH 64, 256 pcs DVR, no limit for user
• Web browserInternet Explorer, Safari, Chrome, Firefox
• VGA800 * 600, 1024 * 768, 1280 * 1024, 1440 * 900, 1920 * 1080
• HDMI1080p
• Power supplyDC 12V 2000 mA
• FanNo
• On/Off SwitchNo
• Remote controlYes
• Rack Mount size in (U)1
• Dimensions (WxHxD)301x46x210mm

By using the setting, the camera system can very easy configure how the cameras will be recording,  whether if motion is detected or at continuous recording. You can set exactly the day, the hour, when the cameras will work. If you need during working hours continuous monitoring, you can set the monitoring hours from 8:00 to 17:00 and cameras will record continuously, and from 17:00 only when motion is detected (possible disruption of the space), the system will alert you via email. At the multiple cameras system, each camera can be set separately, what provides a great variability in the monitoring.

Package Contents:

1x CCTV Camera - IQC960B - K
1x DVR with 1TB HDD - IQR960D4
1x 18 m BNC cable for power supply
2x power adapter
1x USB mouse
1x Remote Control
1x Set of screws
1x Manual

If you are interested in an individual solution of camera system, the selection of cameras and DVR respectively NVR and other accessories according to your needs, please contact us by email at: info@efeel.eu
