AHD security cameras 40 m IR + WDR + 3DNR

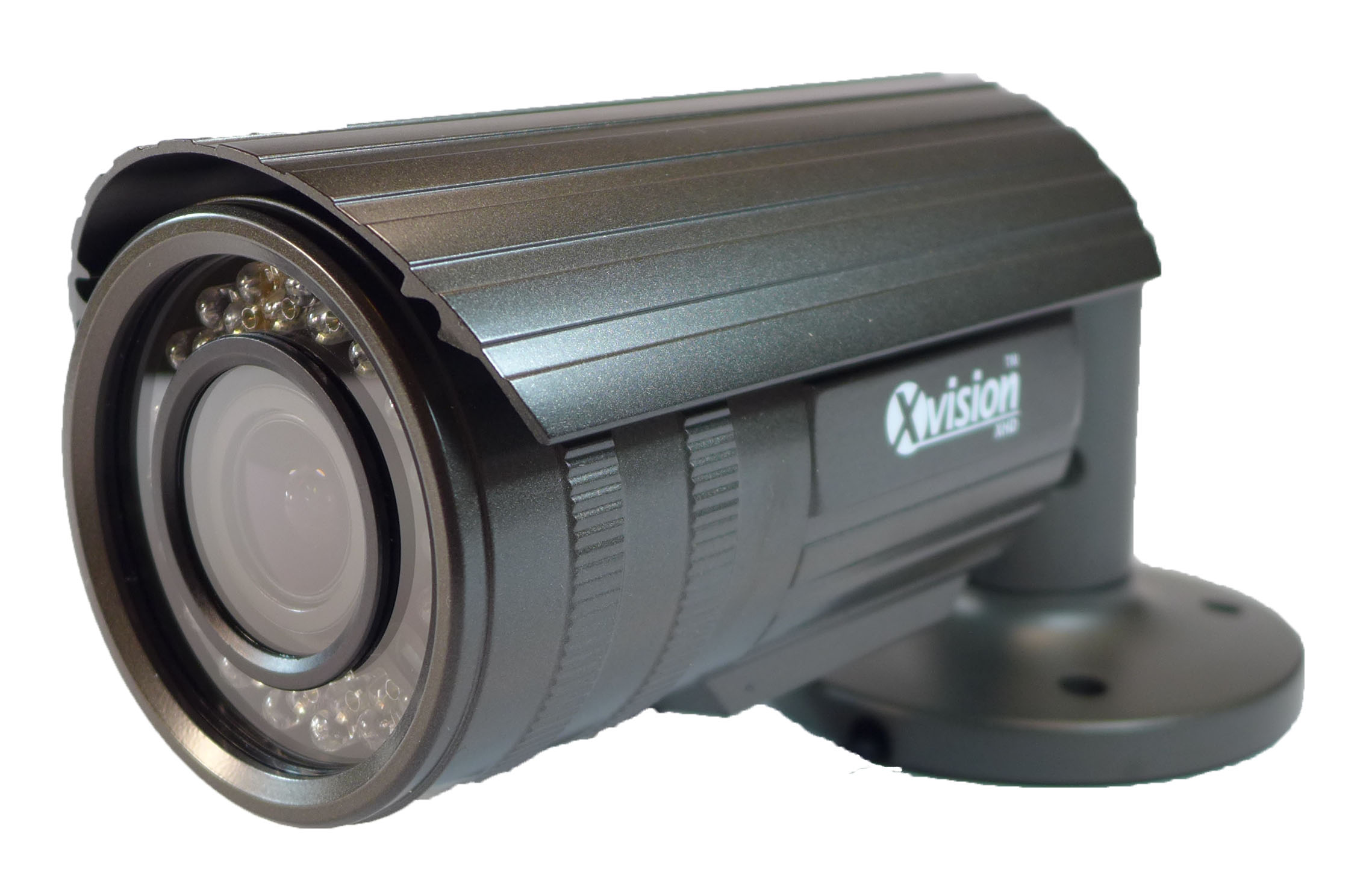

AHD security cameras 40 m IR + WDR + 3DNR is hybrid varifocal camera with IR night vision distance of 40 meters. The camera is equipped with a wide angle lens that scans at angle of 23 °-  92 °. Hybrid camera has a resolution of 1080P/960H. It is equipped with a powerful Xvision X3K-DSP processor, which processes images in real time. The camera is also equipped with digital noise reduction (3x DNR) that removes pixelation, improves image quality when using the DVR recording and Wide Dynamic Range (WDR). The image does not suffer even on bright and dark spots.

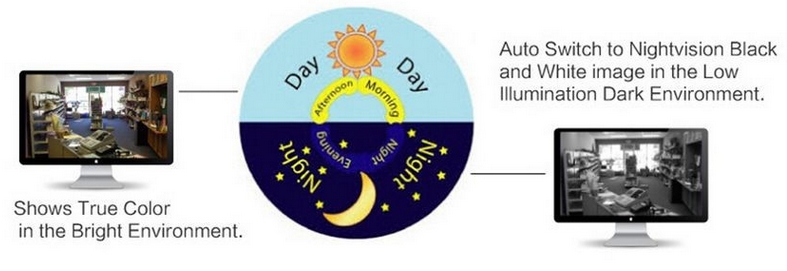

Can be is installed on the wall using a console with spheric joint that allows you to configure the camera to different angles. It is ideal for indoor and outdoor use (IP66) and has a compact design. It can be installed on a wall or ceiling. The camera also has night vision IR up to distance of 40 meters (it is activated automatically upon detection of lower light) that allows continuous monitoring even in complete darkness. The camera can be used with any DVR or monitor, but widescreen is granted only in combination with AHD 1080P DVR. Security cameras you can buy online - for sale in our e-shop and its price is more than adequate to performance.

The camera has a mini joystick, which allows you to change camera resolution (1080P, 960H) as well as for the advanced camera settings using the LCD monitor.

AHD systems 1080P

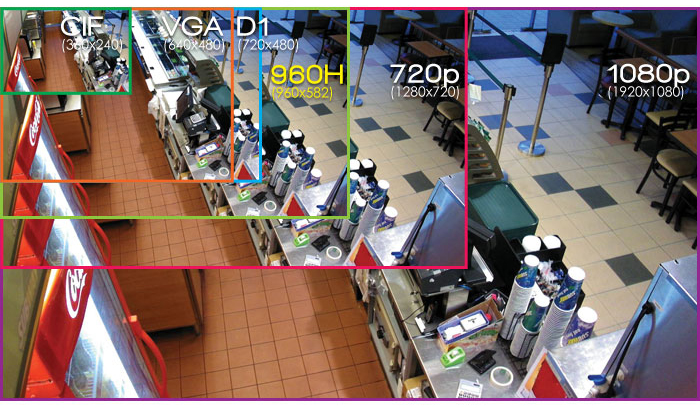

The latest technology of camera system that comes as the successor of analog systems, but in high-resolution 1280x720px and 1920x1080px. That´s why it has a unique technology that enables video transmission through coaxial cable (up to 500m).

 Simple infrastructure
Analog connection and conduction
Signal transmission through cable up to 500m
More technologies of signal transmission
Digital recording on hard disks
Possibility of remote control (LAN)

Our security cameras for sale are certified IP66 (what guarantees their resistance against to dust and waterproof).

The camera parameters:

• ModelXHC1080BV
• TypeSecurity camera with spheric joint
• Resolution1080P / HD960H
• Sensor type1 / 2,8 " SONY 2,43 megapixel CMOS
• Lens size2,8-12,0mm
• DSP TypeXvision X3K DSP
• Minimum illumination0.0003 Lux
• DSP FunctionSens-up, WDR, 3 DNR, suppression of fog, DPC, mirrors, MD, Privacy Zone, AGC, white balance
• Night Vision40m IR
• Lens TypeVarifocal
• Angle23 ° - 92 °
• Weather-resistantYes (IP66)
• Vandal Resistant (antivandal)no
• Dimensions (WHD in mm)77x109x211
• Weight (kg)0,60
• Operating voltage12V DC - 360 mA

Contents:

• 1x Camera - XHC1080BV
• 1x Manual
• 1x Installation material

Unless you do not need design of a security system exactly by your requirements, we offer ready-made universal camera sets together with all accessories for the mounting of a security system. This set ensures compatibility between components.
