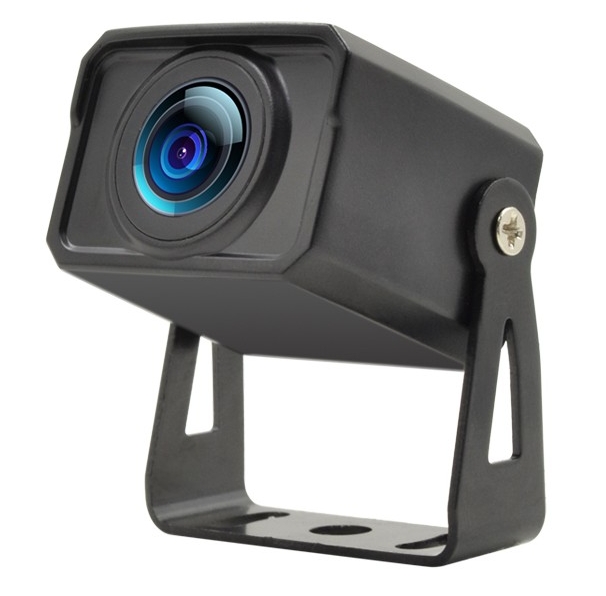

AHD miniature reversing camera 720P - IP67 and 100° angle

SKU: 19-129 I have a question
Manufacturer PROFIO
Products availability in stock
Products are in stock, ready to send.
Yes! We Ship To US
Price excl. VAT U$ 55.91
Price incl. VAT U$ 67.10
- +

Product description AHD miniature reversing camera 720P - IP67 and 100° angle

AHD miniature reversing camera 720P - IP67 and 100° angle of view. Waterproof, dustproof and resistant to mechanical damage. HD resolution 720P and miniature dimensions with IP67 protection, it is also suitable as a front camera for driving recording (in case of combination with AHD monitor with the possibility of recording to SD card). It is the ideal parking assistant with which you will have an overview when reversing, what is happening behind the vehicle, whether you are far enough away from an obstacle or another vehicle.

The camera from the brand PROFIO ELECTRONICS with its dimensions 38x30,5x23,5mm has a wide range of uses, because it is suitable not only for trucks, vans, caravans, minibuses, but also cars, etc. High definition video transmission - HD at 30 fps - high quality and sharp image transmission.

Mini AHD reversing camera without IR night vision, so it is also suitable as a front camera (since there are no reflections of IR LEDs through the window)

mini reversing parking ahd camera

Thanks to a  viewing angle of up to 100°, you will have a sufficient view for safe reversing. The AHD reversing camera meets the degree of protection IP67, which makes it waterproof, dustproof and resistant to mechanical damage. The camera has a body made of durable aluminum alloy and you can install it on various surfaces. The power supply of the camera and signal transmission is via a high-quality, shielded connector with a 4-pin terminal, which has a waterproof finish, which will make your work easier during installation. The camera is powered directly from the reversing monitor with a voltage of 12V.

AHD reversing camera is only compatible with AHD monitor (AHD LCD monitor can be found in our offer)


AHD camera for safe reversing
Miniature dimensions and low weight
Suitable for vans, caravans, trucks
Viewing angle up to 100°
IP67 waterproof and damage resistant


Technical specifications:

Model: Profio IO568
Type: camera with console
Sensor: 1/2,9" CMOS
TV system: PAL
Resolution: HD 720P
Viewing angle: 100°
Durability: IP67
Electronic shutter: 1 / 50-1 / 100000S, 1 / 60-1 / 100000s
Frame ratio: 25fps, 30fps at 1080P
Minimum illumination: 0.01 Lux / f1.2
AGC: automatic
White balance: automatic
Backlight balance: automatic
Signal output: AHD
Video output: 1.0V PP / 75Ω
Connector: 4 pin
Signal to noise ratio: up to 46dB
Image mirroring: adjustable
Parking auxiliary guide lines: adjustable, tricolor
Power supply: DC12V
Consumption: up to 2W
Operating temperature: -20 to 75 ° C
Storage temperature: -30 to 85 ° C
Weight: 112,5g
Dimensions: 38x30,5x23,5mm
Camera body material: metal


Package contents:

1x AHD reversing camera
