8 channel CCTV set - 8x 1080P camera with 20m IR + AHD DVR
Product description 8 channel CCTV set - 8x 1080P camera with 20m IR + AHD DVR
8 channel camera set - includes hybrid DVR recorder AHD 1080P/960H/720P and 8x camera 1080P with 20m IR night vision. CCTV surveillance system is easy to use and includes 8 AHD 1080P cameras and hybrid DVR recorder AHD 1080P/960H/720P, which will record in Full 1080p in real time. To use the system you need to buy HDD (hard disk 1 - 4TB) adapted for a 24 hour operation, which can be bought as an optional accessory.
8-channel DVR IQCCTV hybrid recorder (HD1080P, HD720P, 960H) - offers the most modern digital recording via a standard cables. The recorder can record camera image either from 1080P/720P/960H cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. The recorder also has 4 audio inputs and 1 output if you wish to add a sound.
DVR unit can record all 4 cameras simultaneously at 15 fps in Full HD 1080P or at 25 fps in 720P or 960H resolution. DVR provides Full HD 1080Poutput to a monitor using VGA or HDMI. Once the set is connected to a network (internet) you can easily view and control it from anywhere in the world using a smartphone (Android), tablets, PC and Mac (iOS) computers.
Application "XIQ Mobile CMS" for tablets and smartphones you can download for free in the app store and using the "Snap Shots" function you can set up e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.
Another new feature is the option to automatically send video/photo files via the app Dropbox online service for sharing and backing up of files, either at the motion detection, or at the set intervals. The service provides additional protection for recorded files.
You do not need to have a fixed IP address or to log in to the DDNS service. For those who do not want to use direct IP connection is also available HD CCTV feature that is added to the new series of DVR. It gives you the ability to remotely connect via a dynamic IP address. The application also allows multi-camera viewing and the ability to play recorded images from DVR.

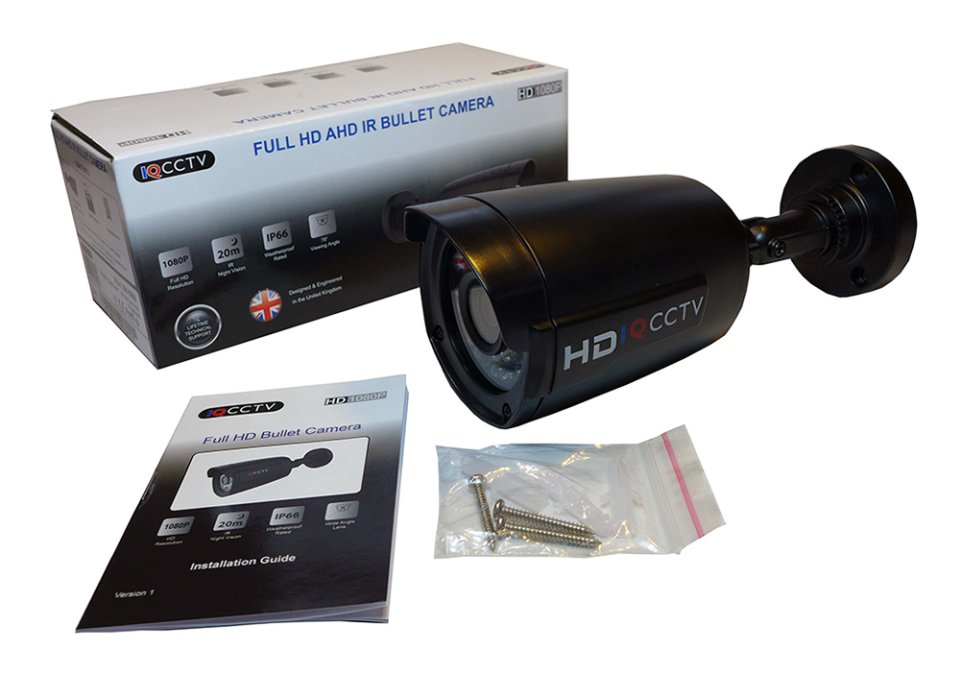

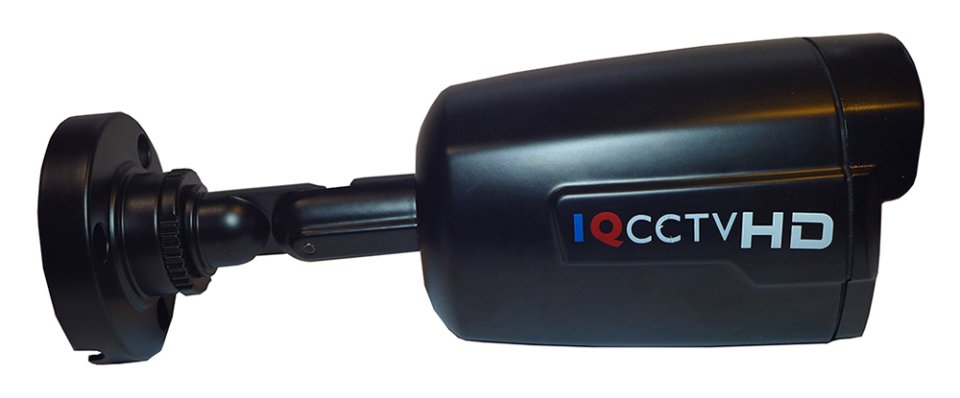

Security AHD camera HD1080p + IR LED + antivandal camera with a diameter of 3,6 mm lens and IR night vision with distance of 20 meters. The camera is equipped with wide angle lens that scans at angle of 78 °. The camera has a mini joystick, which allows you to change camera resolution (1080P, 960H) as well as advanced camera settings using the LCD monitor.

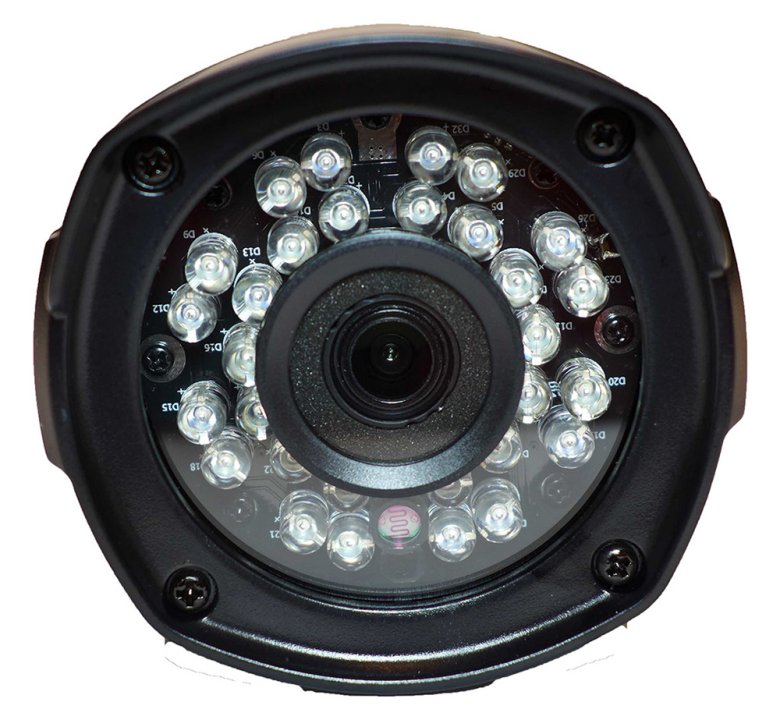

The camera also has night vision IR up to distance of 20 meters (it is activated automatically upon detection of lower light) that allows continuous monitoring even in complete darkness. After dark or in low light conditions, the camera automatically switches from the color scanning to black-white mode. Automatic IR filter produces quality color images during the day and clear images at night in combination with IR LED illumination.
It is ideal for indoor or outdoor use (IP66) and has a compact design. Can be installed on the wall using a console with a spheric joint with which the camera can be set to different angles.
AHD systems 1080p
The latest technology of camera system that comes as the successor of analog systems, but in high-resolution 1280x720px and 1920x1080px. That´s why it has a unique technology that enables video transmission through coaxial cable (up to 500m).
Analog connection and conduction
Signal transmission through cable up to 500m
More technologies of signal transmission
Digital recording on hard disks
Possibility of remote control (LAN)
Technical specifications DVR:
Video compression: H.264
Video system: PAL / NTSC
Video input/output: 8 Ch. inputs, 1 VGA, 1 HDMI
Spot output: No
Audio input/output: 4 Ch. inputs, 1 Ch. output (RCA)
Display resolution: PAL: 960x576 / 1280x720 / 1920x1080 @ 25fps
Display function: Single, Quad, SEQ
Recording resolution: PAL: 960x576 (960H), 1280x720 (720p), 1920x1080 (1080p)
Recording speed: PAL: 960H Mode / Mode 720p / 1080p Mode: 25fps
Recording mode: Continuous / Manual / Motion Detection
Playback channel 1/8 Ch.
Frame rate: PAL: 960H Mode / Mode 720P / 1080P Mode: 25fps
Sensor and Alarm I/O: No
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP and DDNS
HDD Interface: 1 SATA HDD up to 6 TB
Multiplex operation: Live view, recording, playback, backup and network
USB: 2 x USB (for mouse and backup/upgrade)
PTZ control: Yes
Mobile Surveillance: XIQ CMS - Android and iOS
CMS Software: Yes
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
Power supply: 12V DC
On/Off Switch: No
Remote control: Yes
Dimensions (WxHxD): 300x53x227
The camera parameters:
Type: Security Camera
Resolution: 1080P / HD960H
Sensor type: 1/ 2,7 " CMOS Sensor Mega Pixel
DSP Type: IQ 1080P DSP
Minimum illumination: 0.1 Lux (0 Lux IR On)
DSP Function: Automatic Backlight Compensation
Auto white balance
Auto electronic shutter
Night Vision: 20m IR Night Vision
Lens Type: Fixed
Lens Size: 3,6mm
Angle: 78 °
Operating voltage: 12V DC

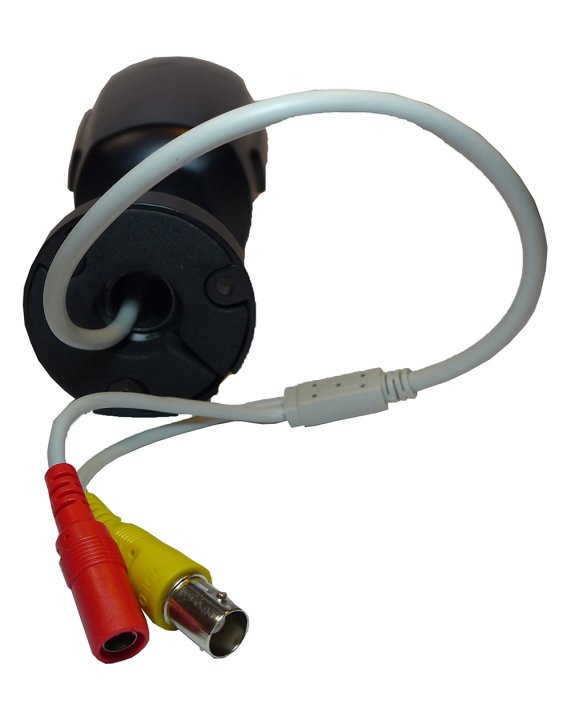

Video Output: BNC socket
Audio Output: No
Weather-resistant: Yes (IP66)
Resistant to damage (Anti vandal): yes
The mounting method: wall or ceiling
Dimensions (WHD in mm): 135x55x135
Weight (kg): 0,40
8x Camera IQC1080B
8x 20 m cable for video/audio/power
8x Installation material (screws, dowels)
2x Power adapter of camera 12V 5000 mA
2x Splitter for 4 cameras

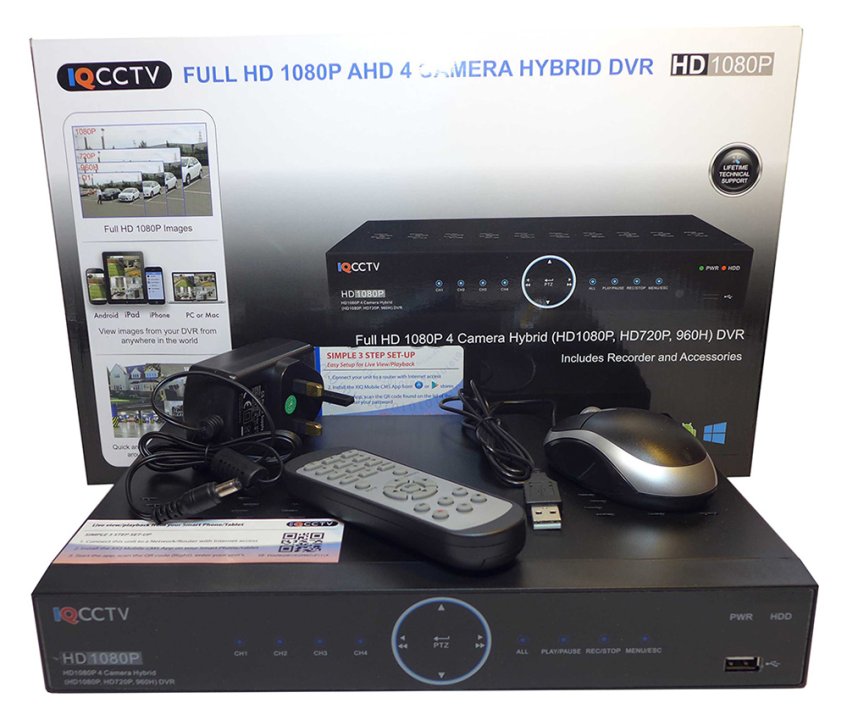

1x DVR recorder IQR1080D8
1x Power Adapter DVR
1x USB mouse
1x Remote Control
1x Installation CD
