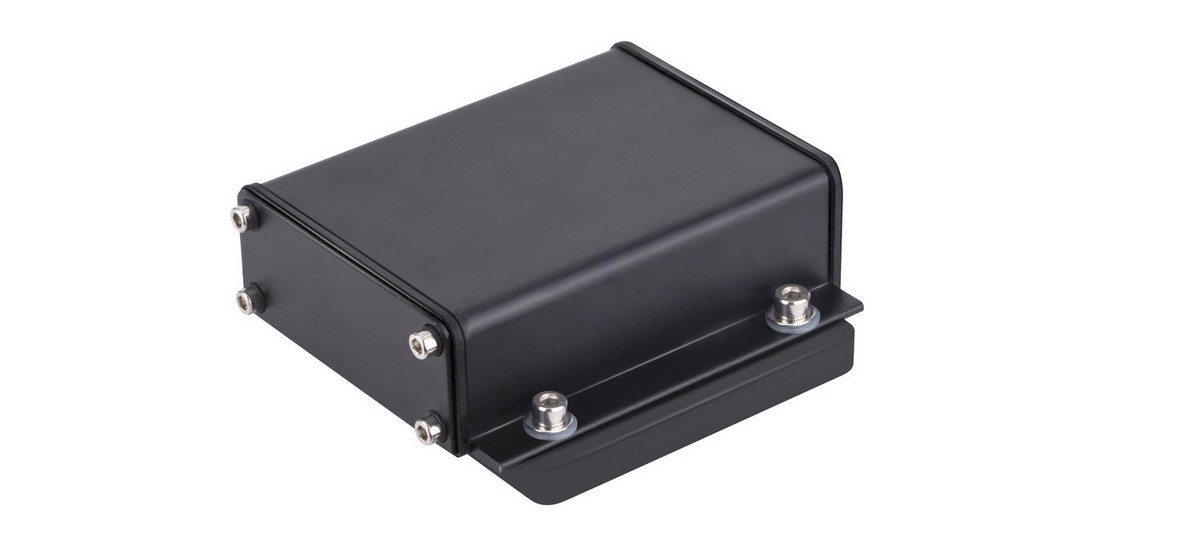

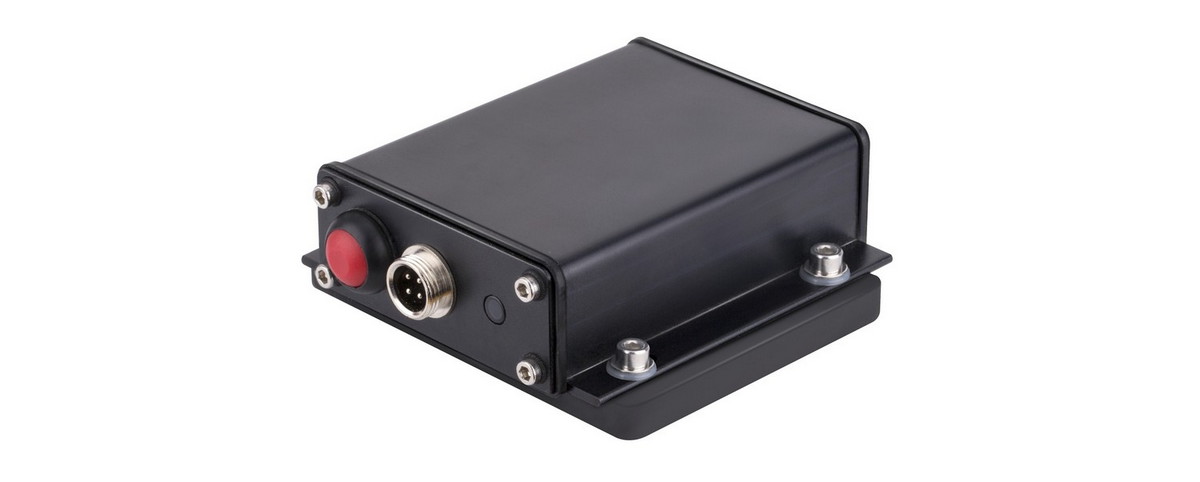

Portable magnetic 5600 mAh rechargeable battery for AHD reversing cameras with 4 PIN connector
Product description Portable magnetic 5600 mAh rechargeable battery for AHD reversing cameras with 4 PIN connector
Portable magnetic 5600 mAh rechargeable battery for AHD reversing cameras with 4 PIN connector. The battery is durable with 6G shockproof and waterproof IP66. It is suitable for all reversing cameras for cars, vans, buses, lorries, trucks, trailers, semi-trailers, forklifts, construction and agricultural machinery. This 5600mAh portable magnetic rechargeable battery is supported by a large magnetic base that allows users to easily attach the box anywhere it fits.. The working time is approximately up to 13 hours. It supports Quick Charge 3.0 - fast charging in just 3,5 hours.
Charging mode: The DC bus input head is connected to the DC 2A/12,6V power adapter, then press the switch, the front indicator light will be red/green, blue when charging is complete. After the green light turns blue, it needs to be charged for another 1-2 hours to be fully charged. Discharge mode: The DC output head is connected to the load, then press the switch. As the battery voltage decreases, the indicator will gradually fade from green until the battery output voltage is lower than the set value, and the indicator will turn red.
Working status of the indicator light:
Red light: Battery voltage <10,55V+0,3V
Green light: 10.55V +0,3V < battery voltage < 12,2V +0,1V
Blue light: 12,2V +0,1V < battery voltage < 12,6V.
Switch: You need to press the switch to turn the charging on and off. Be sure to turn off the power switch when you are not using this product.
Standard voltage 12V
Nominal capacity 5600mAh/12V
Protection voltage against overcharging 12,5V±0,25V
Maximum charging voltage 12,60-12,90V
Charging current 0,7-2A
Standard charging (0,7 A), approx. 9 hours
Fast charging (2A), approx. 4 hours
Battery life: 500 cycles of continuous charge and discharge, with 80% capacity
Working temperature and humidity range: when charging 0～45℃，45～85%RH, when discharging -20～55℃,45～85%RH
Storage temperature and humidity range: -20～+55℃, 45～85%RH
