HD NVR for 16 cameras, Internet, VGA, HDMI, USB
| Manufacturer |
|
|---|---|
| Products availability | pre-order |
| Delivery time 1 - 3 weeks. | |
Yes! We Ship To
|
|
| Price excl. VAT | U$ 999.16 |
| Price incl. VAT | U$ 1,199.00 |
Accessories
1TB 3.5" SATA Hard Drive for CCTV U$ 141.90
2TB 3.5" SATA HDD for CCTV U$ 185.90
HDD for CCTV - 4TB 3.5" SATA U$ 372.90

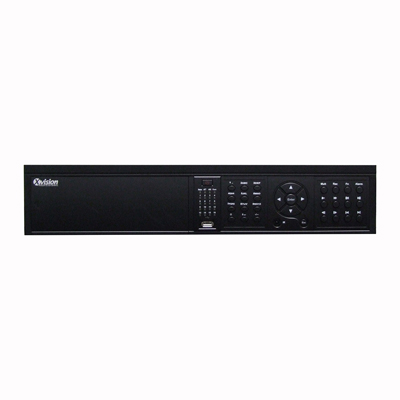

Product description HD NVR for 16 cameras, Internet, VGA, HDMI, USB
HD NVR for 16 cameras, Internet, VGA, HDMI, USB - unique surveillance shop products for best price. ISO EN 9001:2008 certified online seller. This quality NVR recorder is suitable for currently used IP cameras. Can be recorded at any resolution from D1 (standard CCTV) to Full HD (HD CCTV). It is designed such easily as standard CCTV DVR, it has a menu on the screen that can be controlled on front panel, by mouse, or by remote control.
NVR is equipped with 2 powerful processors to ensure high performance and super fast remote viewing, it is able to record D1 in real-time, 720p at up to 200fps and 1080p at 100fps. It disposes with capacity up to 24 TB for recording and another 12 TB as external eSATA hard drives for a total capacity of up to 36 TB. Offers quick and easy backup via its built-in USB port, through which can be connected to a USB hard drive or USB key. It has VGA and HDMI outputs. Outputs also work for situations requiring multiple monitors. Video output is 1080p - the use of full resolution is available for high-resolution monitors.
Dual Stream Internet connection and network connectivity is standard, as well as the connection to the mobile phone. IPhone / iPad and Android applications are available for use with support NVR that allows you to watch cameras, playback, DVR configuration and receiving PUSH VIDEO, which means the DVR will alert you when motion is detected. After alerts on your phone just press one button and you played a record that triggered the alert. DVR can also be viewed from a computer running Windows, which allows you to view multiple DVR, playback and backup recordings.
Dual Stream internet connection and network connection is standard, as well as the connection to the mobile phones. IPhone/iPad and Android applications are available for use with support NVR, that allows you to view of cameras, playback, DVR configuration and receiving PUSH VIDEO, that means the DVR will alert you when motion is detected. After alerts on your phone, just press one button and you can view recorded video that started the alert. DVR can also be viewed from a computer with Windows system, which allows you to view multiple DVR, playback and backup of recordings.
Technical specifications:
Certificates: CE, RoHS
Main Processor: Powerful Dual - core integrated microprocessor
Operating System: Embedded Linux
System Resources: Pentaplex function: live, recording, playback, backup and remote access
Control mode: front panel, USB mouse, IR remote control, Keyboard, Network
Realtime IP Cameras Support: 16 channels @ D1, 8 channel @ 720P, 4 channel @ 1080P
IP cameras - Supported: Arecont Vision, AXIS, Canon, Panasonic, Samsung, SANYO, SONY, ONVIF
Output: 1 HDMI (video and audio), 1 VGA
Display / Allocation: 1/4/8/9/16
Resolution: 1920x1080, 1280x1024, 1280x720, 1024x728
Tour Display: Support
Privacy - Masking: 4 self-defined, 4 both-sided zones for private masking for each camera
OSD: Camera title, time, lost image, camera lock, motion detection, recording
Compression: H.264 / MJPEG4
Hard drive: 8 SATA ports, 8HDD or 6HDD + 1 CD / DVD - RW and up to 24 TB
eSATA 4 External SATA ports, up to 12 TB
Recording / Resolution: 1080p (1920x1080) / 720P (1280x720) / D1 (704x576 / 704x480)
Recording - Bit Rate: up to 32 Mbps
Recording quality: CBR, VBR (1 ~ 6 level)
Recording Mode: manual, program, continuous, motion detection, alarm
Recording - Priority Manual> Alarm> Motion Detection> Regular
Recording interval: 1 ~ 120 minutes (default: 60 minutes)
Launched events: recording, PTZ movement, tour, alarm, e-mail, FTP, buzzer and display tips
Motion detection: Zones 396 (22x18), Sensitivity (1 ~ 6, 6 being the highest)
Video lost and empty camera: Support
Alarm input: 16
Relay output: 6
Playback channel: 1/2/4 / All
Search mode: time / date, alarm, motion detection, exact/search/smart search /
Functions: Play, Pause, Stop, Rewind, Fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom
Backup mode: Flash drive / USB HDD / USB CD & DVD - RW / Network download
Ethernet: RJ45 port (10/100M/1000M)
Network features: HTTP, TCP IP, UPnP, RTSP, SMTP, NTP, DHCP, DNP, IP filter, PPPoE, DDNS, FTP, alarm service, IP Search / support Dahua IP cameras, DVR, NVS
Maximum number of remote users: 20
Remote control: monitor, PTZ control, playback, system settings, download the file, the login information
Operating voltage: 100 ~ 240V AC
Power consumption: 20W (without HDD)
Product dimensions: 440 mm (width) x 89mm (height) x 460 mm (depth)
Weight (kg): 6 kg (without HDD)
