AHD professional DVR 1080P/960H/720P - 16 cameras

SKU: 41-037 I have a question
Manufacturer X Vision
Products availability pre-order
Delivery time 1 - 3 weeks.
Yes! We Ship To US
Price excl. VAT U$ 815.84
Price incl. VAT U$ 979.00
- +

Product description AHD professional DVR 1080P/960H/720P - 16 cameras

AHD professional DVR 2.0 from manufacturer XVISION 1080P/960H/720P - support 16 cameras and has mobile and internet access. This 16 channel hybrid DVR recorder (HD1080p, HD720p, 960H) offers the most modern digital recording via a standard cables. The unit can record camera image either 1080p / 720p / 960H AHD cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. DVR unit can record all 16 cameras simultaneously 25fps at Full HD1080p, or 25fps at 720p or 960H resolution.

DVR provides Full HD 1080p output to a monitor using VGA or HDMI. The recorder can connect 16 cameras. Easy installation of cameras "Plug and Play", just  connect one cable for power supply and video to  one camera and you can record. Easy operation with simple on-screen menu that you can control with a USB mouse, touchpad and remote control via the network.

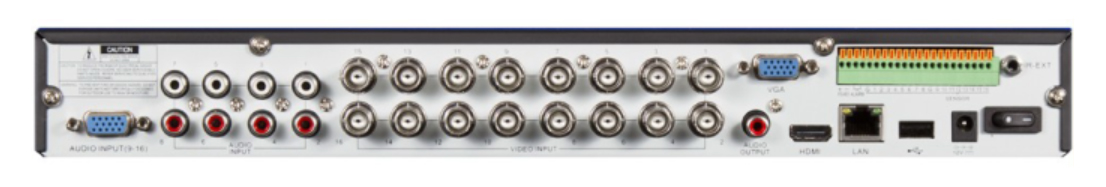

XHR1080 DVR recorder inputs and outputs

As soon as you connect the set to a network (the Internet), you can easily view and control from anywhere in the world using a smartphone (Android), tablet, PC and Mac (iOS) computers. The DVR can be connected to 2 hard disks up to 6 TB (total 12 TB) and it also has 16 audio inputs and 1 output if you wish to add a sound.

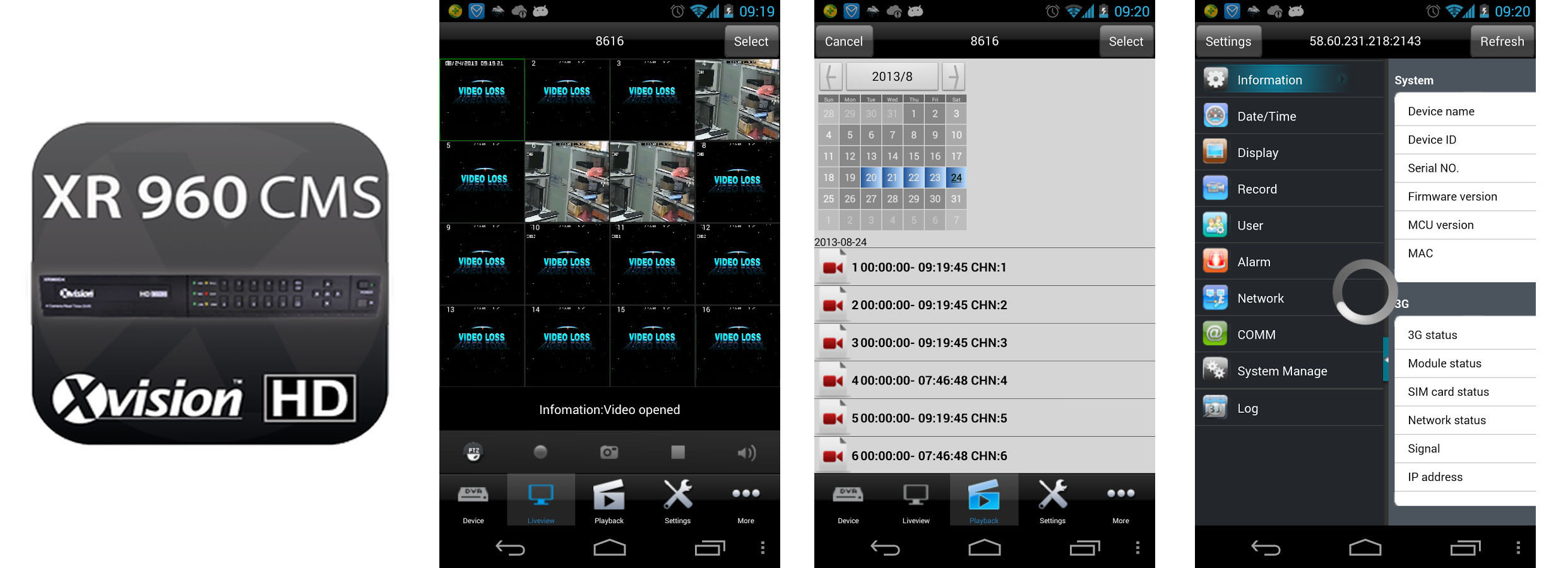

Aplikacia XR 960 cms for mobile phones

Application "XR 960 CMS" for tablets and smartphones you can download for free in the app store and you can set up e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.

email notification disruption CCTV

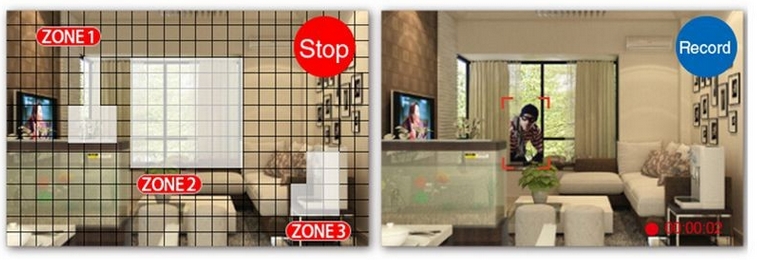

Function of advanced Motion Detection will ensure the start of recording if is captured any movement in the monitored area. This is a digital motion detection (not the classical motion sensor) which is much more accurate and efficient. Using the supplied software you can set the days and hours when will be this function activated.

alarm zone camera system

For easy operation and setup, the DVR is equipped with On Screen Display (GUI) and can be controlled using the new function of touchpad or mouse (both are supplied as standard). By using the easy camera settings, the system enables very easy settings how camera should record, either when motion is detected or continuous recording. You can set up exactly the day and hour of recording of cameras. If you need during working hours continuous monitoring of area, just set the time, for example from 8:00 to 17:00 the cameras will record continuously and from 17:00 only when motion is detected (possible distortions of space), the sstem will inform you about that via e-mail alert. The advantage of the multiple camera system is, that you can adjust each camera separately, what gives you a great variability in the monitoring.


plus Max. recording resolution: 15 fps at 1080p; 25fps at 720p/960H
plus The possibility to connect 2 HDD up to 6TB (total of 12 TB) - not included
plus Ethernet - 1 x RJ45 port (10/100 m)
plus 16 channels AHD/960H camera inputs (BNC)
plus 16 channels of audio inputs/1 output
plus Backup USB/Internet
plus P2P remote access via Smartphone, tablet, PC and Mac


Technical specifications:

Model: XHR1080D16
Video compression: H.264
Video system: PAL / NTSC
Video input/output: 16 Ch. inputs, 1 VGA, 1 HDMI
Spot output: No
Audio input/output: 16 Ch. inputs, 1 Ch. output (RCA)
Display resolution: PAL: 960x576 / 1280x720 / 1920x1080 @ 25fps
Display function: Single, Quad, SEQ
Recording resolution: PAL: 960x576 (960H), 1280x720 (720p), 1920x1080 (1080p)
Recording speed: PAL: 960H Mode / 720P mode: 25fps 1080p 15fps
Recording mode: Continuous / Manual / Motion Detection
Playback channel 1/8 Ch.
Frame rate: PAL: 960H Mode / 720P mode: 25fps 1080p 15fps
Sensor and Alarm I/O: 16/1
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP and DDNS
HDD Interface: 1 SATA HDD up to 12TB
Multiplex peration: Live view, recording, playback, backup and network
USB: 2 x USB (for mouse and backup/upgrade)
PTZ control: Yes
Mobile surveillance: XIQ CMS - Android and iOS
CMS Software: Yes
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
HDMI 1080P
Power supply: 12V DC
Fan: Yes
On/Off Switch: No
Remote control: Yes
Dimensions (WxHxD): 380x50x340

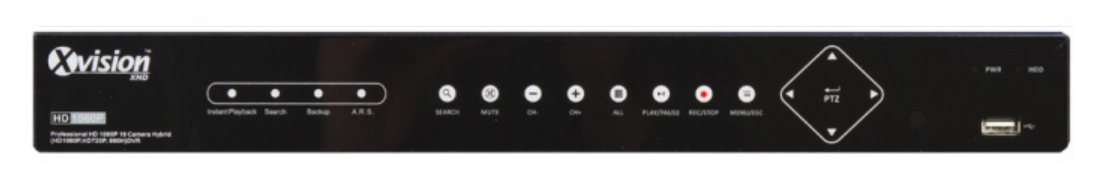

XHR1080 DVR recorder 16 channel

AHD DVR specification


1x DVR - XHR1080D16
1x Power Adapter
1x USB mouse
1x Remote Control
1x Manual
1x Installation CD
