AHD CCTV systems - 8x camera 1080P with 40 meters IR and DVR

SKU: 40-036 I have a question
Manufacturer X Vision
Products availability in stock
Products are in stock, ready to send.
Yes! We Ship To US
Price excl. VAT U$ 1,429.09
Price incl. VAT U$ 1,714.90 U$ 2,262.70
- +

Product description AHD CCTV systems - 8x camera 1080P with 40 meters IR and DVR

AHD CCTV systems - 8x camera 1080P with 40 m IR vision and DVR hybrid recorder AHD 1080P/960H/720P. CCTV surveillance system is easy to use and  includes 8 AHD 1080P cameras and hybrid DVR recorder AHD 1080P/960H/720P, which will record in Full 1080p in real time. To use the system you need to buy HDD (hard disk 1 - 4TB) adapted for a 24 hour operation, which can be bought as an optional accessory

8-channel DVR IQCCTV hybrid recorder (HD1080P, HD720P, 960H) offers the most modern digital recording via a standard cables. The recorder can record camera image either from 1080P/720P/960H cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. The recorder also has 4 audio inputs and 1 output if you wish to add a sound.

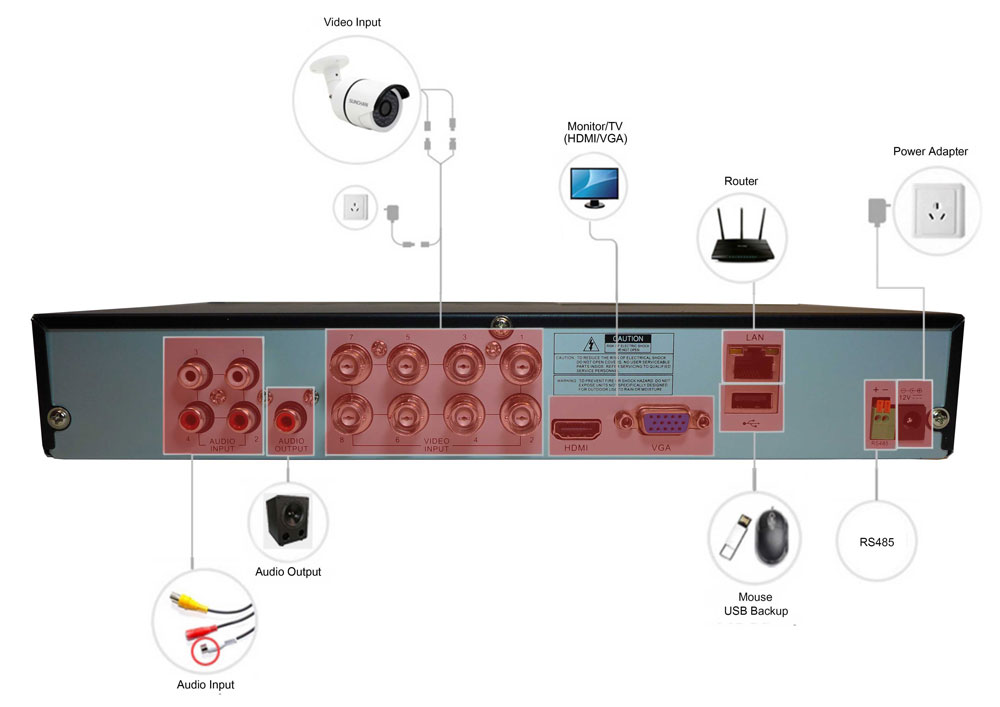

8 channel DVR IQR scheme

DVR unit can record all 8 cameras simultaneously at 15 fps in Full HD 1080P or at 25 fps in 720P or 960H resolution. DVR provides Full HD output to a monitor using VGA or HDMI. Once the set is connected to a network (internet) you can easily view and control it from anywhere in the world using a smartphone (Android), tablets, PC and Mac (iOS) computers.

CMS mobile application XIQ

Application "XIQ Mobile CMS" for tablets and smartphones you can download for free in the app store and using the "Snap Shots" function you can set up e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.

motion detection and email cameras

Another new feature is the option to automatically send video/photo files via the app Dropbox online service for sharing and backing up of files, either at the motion detection, or at the set intervals. The service provides additional protection for recorded files.

You do not need to have a fixed IP address or to log in to the DDNS service. For those who do not want to use direct IP connection is also available HD CCTV feature that is added to the new series of DVR. It gives you the ability to remotely connect via a dynamic IP address. The application also allows multi-camera viewing and the ability to play recorded images from DVR.

Dropbox application for DVR


Varifocal AHD camera HD1080P/960H hybrid antivandal camera with IR night vision with distance of 40 m. The camera is equipped with a wide angle lens with a chip 1/2,8 by 2,43 megapixel SONY CMOS that scans at angle of 23 - 92 °. The camera disposes with a dual hybrid image resolution of 1080P/960H. It is equipped with a powerful Xvision X3K-DSP processor, which processes an image in real time. The camera is also equipped with digital noise reduction (3x DNR) that removes pixelation, improves image quality when using the DVR recording. With powerful optics the camera can recognise license plate at a distance of 12 metres and it compensates the backlight headlights of a car.

Resolution comparison of security cameras

The camera also has night vision IR up to distance of 40 meters (it is activated automatically upon detection of lower light) that allows continuous monitoring even in complete darkness. After dark or in low light conditions, the camera automatically switches from the color scanning to black-white mode. Automatic IR filter produces quality color images during the day and clear images at night in combination with IR LED illumination.

IR night vision

It is ideal for indoor and outdoor use (IP66) and has a compact design. Can be installed on the wall using a console. The camera has a mini joystick, which allows you to change camera resolution (1080P, 960H) as well as for the advanced camera settings using the LCD monitor.

IP66 resistance

AHD systems 1080p

The latest technology of camera system that comes as the successor of analog systems, but in high-resolution 1280x720px and 1920x1080px. That´s why it has a unique technology that enables video transmission through coaxial cable (up to 500m).

plus Simple infrastructure
plus Analog connection and conduction
plus Signal transmission through cable up to 500m
plus More technologies of signal transmission
plus Digital recording on hard disks
plus Possibility of remote control (LAN)


Technical specifications DVR:

Model: IQR1080D8
Video compression: H.264
Video system: PAL / NTSC
Video input/output: 8 Ch. inputs, 1 VGA, 1 HDMI
Spot output: No
Audio input/output: 4 Ch. inputs, 1 Ch. output (RCA)
Display resolution: PAL: 960x576 / 1280x720 / 1920x1080 @ 25fps
Display function: Single, Quad, SEQ
Recording resolution: PAL: 960x576 (960H), 1280x720 (720p), 1920x1080 (1080p)
Recording speed: PAL: 960H Mode / Mode 720p / 1080p Mode: 25fps
Recording mode: Continuous / Manual / Motion Detection
Playback channel 1/8 Ch.
Frame rate: PAL: 960H Mode / Mode 720P / 1080P Mode: 25fps
Sensor and Alarm I/O: No
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP and DDNS
HDD Interface: 1 SATA HDD up to 6 TB
Multiplex operation: Live view, recording, playback, backup and network
USB: 2 x USB (for mouse and backup/upgrade)
PTZ control: Yes
Mobile Surveillance: XIQ CMS - Android and iOS
CMS Software: Yes
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
HDMI 1080p
Power supply: 12V DC
On/Off Switch: No
Remote control: Yes
Dimensions (WxHxD): 300x53x227


8 channel DVR IQR specifications

The camera parameters:

Model: XHC1080VV-D
Type: Security Camera
Resolution: 1080P / HD960H
Sensor type: 1/2,8 "CMOS Sony 2,43 Megapixel
Lens size: 2,8 - 12,0 mm
DSP Type: Xvision X3K DSP
DSP Function: Sens-up, WDR, 3 DNR, noise reduction
DPC, Mirror, MD, Privacy Zone, AGC, white balance
Minimum illumination: 0.0003 Lux
Night Vision: 40m IR
Lens Type: Fixed
Angle: 23 ° - 92 °
Weather-resistant: Yes (IP66)
Vandal Resistant (anti vandal): yes
Dimensions (WHD in mm): 120x95x120
Weight (kg): 1,0
Operating voltage: 12V DC - 360 mA

monitor images from cameras XHC 1080vv camera shot AHD real camera shots AHD 1080p camera real photo


XHC camera 1080PFull HD Camera White

Specifications XHC camera 1080P


8x Camera XHC1080VV-G
8x 20 m cable for video/audio/power
8x Installation material (screws, dowels)
2x Power adapter of camera 12V 5000 mA
2x Splitter for 4 cameras

1x DVR recorder IQR1080D8
1x Power Adapter DVR
1x USB mouse
1x Remote Control
1x Installation CD
1x Manual


If you are interested in an individual solution of camera system, the selection of cameras and DVR respectively NVR and other accessories according to your needs, please contact us by email at: [email protected]

Why to buy security cameras through our e-shop?

We are the official distributor of leading European brands of IQ CCTV and X-VISION and seller of safety technology with years of experience. Our requirements regarding the processing and improving of products we consult directly with the producer. Each product included in the sale will pass the entry quality control and only after that is ranked to our offer.

Our tests show that our sold technique is more efficientmore reliable and has a longer life compared to competitive products. In case of unexpected technical problems, we try to solve the situation urgently towards customer satisfaction. Of course we provide a warranty of 24 months on goods and professional advising.
