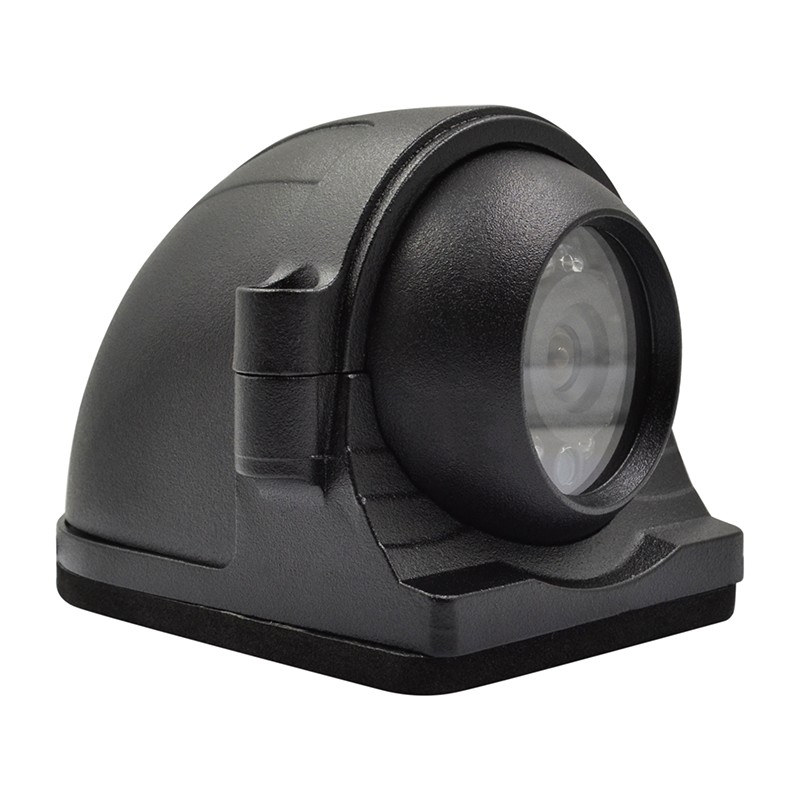

Compact AHD 720P reversing camera with 12xIR LED + 140° angle

SKU: 19-135 I have a question
Manufacturer PROFIO
Products aviability in stock
Products are in stock, ready to send.
Yes! We Ship To us
Price excl. VAT $55.00
Price incl. VAT $66.00
- +

Product description Compact AHD 720P reversing camera with 12xIR LED + 140° angle

Compact AHD 720P reversing camera with 12xIR LED + 140° angle of view, universal camera for cars and machines. The AHD camera can be rotated as needed, it is the ideal parking assistant with which you will have an overview when reversing, what is happening behind the vehicle, whether you are far enough away from an obstacle or another vehicle. The reversing camera has night vision what is provided by 12 IR LEDs. With its parameters and the power of IR night vision, the camera has a wide range of uses, because it is suitable not only for larger cars, vans, minibuses, buses, semi-trailers, trailers, agricultural machinery or trucks. High definition video transmission - HD at 30 fps - high quality and sharp image transmission.

AHD reversing camera with HD resolution

ahd parking camera with 12x ir led

Thanks to the viewing angle of up to 140°, you will have a sufficient view for safe reversing even in complete darkness. The camera's shooting angle is adjustable. The work camera is protected by a solid aluminum cover. After unscrewing the cover, the camera can be rotated as you wish and the camera can be attached to the vehicle through the appropriate holes. The foam pad protects against damage of the vehicle's paintwork. The AHD reversing camera meets the degree of protection IP67, which makes it waterproof, dustproof and resistant to mechanical damage. The power supply of the camera and signal transmission is via a high-quality, shielded connector with a 4-pin terminal, which has a waterproof finish, what will make your work easier during installation. The camera is powered directly from the reversing monitor with a voltage of 12V.

The camera has a body made of durable aluminum alloy and you can install it on various surfaces.

reversing camera with night vision ir led

The AHD reversing camera is only compatible with the AHD monitor (you will find the AHD LCD monitor in our offer).

Features:

AHD camera for safe reversing
IR night vision with 12 IR LED lights
Suitable for buses, trucks and special vehicles
Viewing angle up to 140°
IP67 waterproof and damage resistant



Technical specifications:

Model: Profio AS895
Sensor: 1/2,9" CMOS
TV system: PAL
Night vision: 12x IR LED lights
Resolution: HD 720P
Viewing angle: 140°
Durability: IP67
Electronic shutter: 1 / 50-1 / 100000S, 1 / 60-1 / 100000s
Shooting: 30fps at 720P
Minimum illumination: 0.01 Lux / f1.2
White balance: automatic
Backlight balance: automatic
Signal output: AHD
Connector: 4 pin
Power supply: DC12V
Consumption: up to 2W
Operating temperature: -20 to 75° C
Storage temperature: -30 to 85° C
Camera body material: aluminum
Weight: 263g
Dimensions: 75x45x65mm

Package contents:

1x AHD reversing camera
