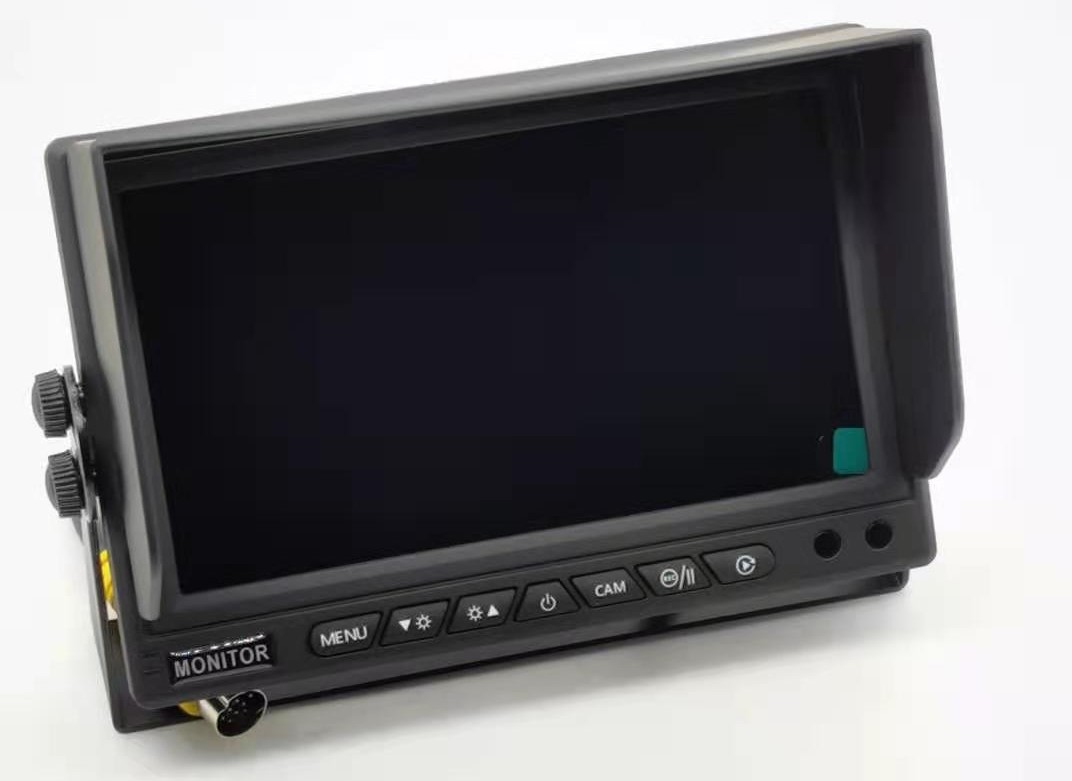

7" car monitor for 4 reversing AHD/CVBS cameras + RECORDING
Product description 7" car monitor for 4 reversing AHD/CVBS cameras + RECORDING
7" car monitor for 4 reversing AHD/CVBS cameras with image recording to SD card with support for up to 256 GB. Possibility of connecting up to 4 any types of cameras FULL HD, HD, CVBS and reversing cameras. A new generation of parking system, which brings you a clear, sharp image during the day, even in low light conditions and all the necessary technical means for safe operation and control of motor vehicles and machines.The monitor allows you to switch between different display variants of cameras, depending on how many cameras you have connected and which of them you want to be displayed as the main.
The reversing monitor contains a menu in which you have various options for setting up the LCD monitor and the cameras that are connected to it. Recording function - the monitor also serves as a DVR recorder for recording from cameras - it is stored on an SD card, with support up to 256 GB. The package also includes a remote control, for even easier control of the monitor. The hybrid monitor supports AHD 1080P/AHD 720P/960H/CVBS mixed input in multiple video formats as well as PAL/NTSC frequencies.

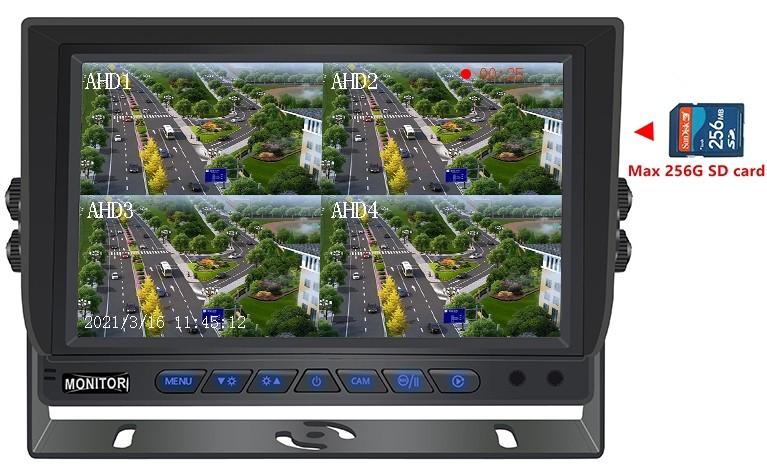

The recording from the cameras is stored on an SD card, which is supported up to 256 GB.
On each camera, you can adjust the image mirroring via the monitor, or turn on the reversing guides when reverse gear is engaged (in this case, it is necessary to connect the switching cables for each camera to the reverse light). The reversing monitor offers several variants of camera display, so you can choose the one that suits you best. With this system you will know exactly what is behind or around the vehicle. It is suitable for cars, vans, minibuses, caravans, buses, trucks, semi-trailers, agricultural machinery and other vehicles. The monitor is equipped with an adjustable bracket that you attach to the required place and a sun visor. Different image settings can be adjusted independently for each video input signal.
Possibility to connect up to 4 cameras with the possibility to choose the order of camera displaying.
The individual cameras can be displayed side by side or, if necessary, combined the arrangement of the cameras on the monitor.
Hybrid monitor for reversing cameras with image recording from 4 cameras

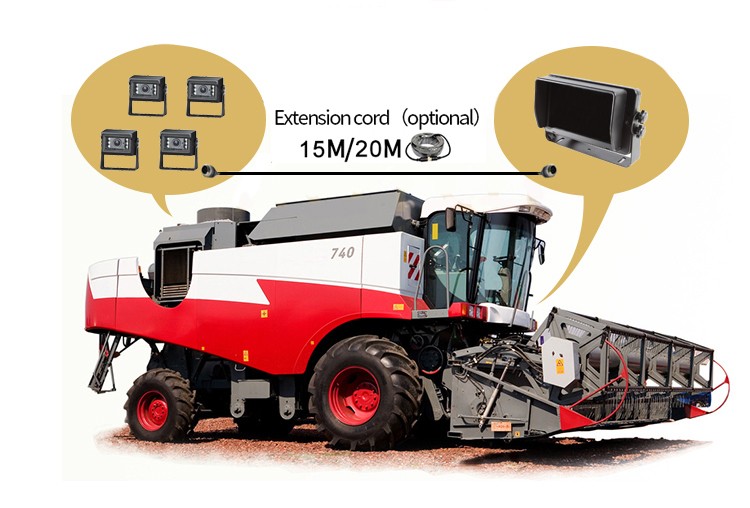

Up to 4 cameras can be connected to the monitor - AHD or CVBS. Depending on the need and type of vehicle, you can choose and combine cameras from our offer to meet your requirements. The cameras are connected to the monitor via 4pin cables. The monitor has cables for connecting the cameras and powering the monitor. The cameras are powered directly from the monitor, so it is no longer necessary to connect them separately to the source, which simplifies installation and you can place the camera anywhere in the vehicle. The monitor also includes 4 switching cables, through which you can connect the selected cameras to the reversing lights. When reverse gear is engaged, the selected reversing camera will automatically appear on the monitor. Support for cyclic video recording and parking (24-hour parking monitoring function).

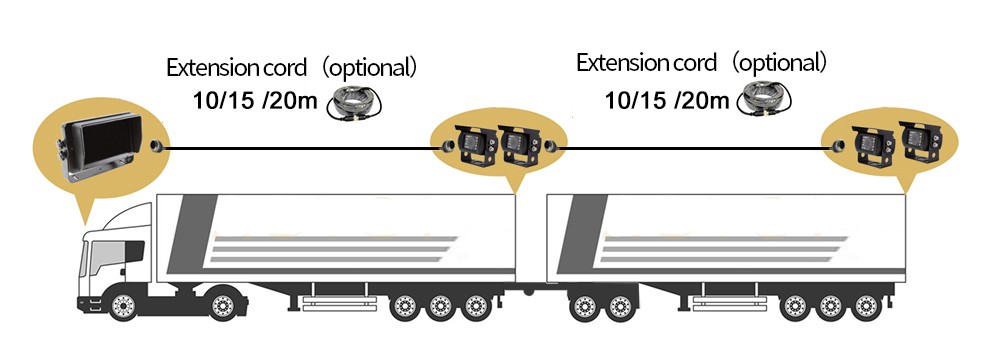

In case you need to mount the monitor in a different way than with bracket (what is included in package), you can find in our offer another three more types of stands which allow you to attach your monitor for example onto a windshield or where is needed. In case you need to put the camera on a trailer that is able to remove from the car or truck, you can buy in our e-shop a connecting cable of reversing camera for trailers and semi-trailers. This ensure easy disconnection of the reversing system and re-connection.
Car monitor for comfortable reversing

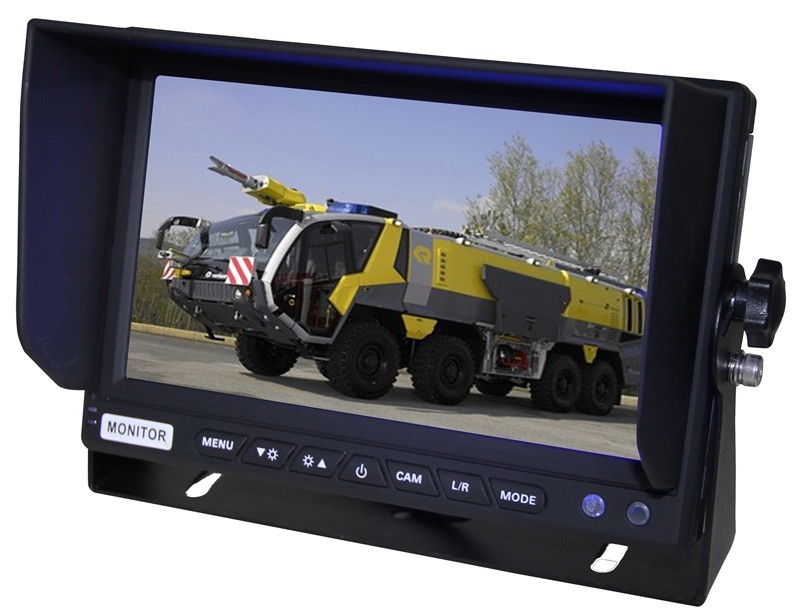

7 inch reversing monitor
Recording to micro sd
Wide range of settings in the display menu
Possibility to connect up to 4 cameras
Various camera display options
Monitor technical specifications:
Model: Profio -W70
Monitor: 7" HD screen
System: PAL/NTSC 50/60Hz
Aspect ratio: 16:9
Monitor resolution: 1024 x 600 RGB
Display visibility: 180° from each side
Video resolution when recording: 1280x720P, 1280x960P, 960H
Compatible signal: AHD 720P @ 25/30, 960P @ 50/60, 1080P @ 25/30, CVBS 960H
Inputs: 4x AHD/CVBS channel
Backlit buttons: yes, blue light
Recording: yes, 4 channels
Cyclic recording: yes
Display layout: 1/2/3/4 camera
Video format: AVI
Memory: support SD card class 10, up to 256 GB (memory card not included)
Possibility to adjust the OSD: brightness, contrast, volume, language
Power supply: DC 12-36V (voltage 13V is required for power supply even with a camera)
Output voltage: DC + 11,5V/3A
Audio input: yes 1x
Connector: 4pin connector
Remote control: yes
Dimensions: 18 x 12 x 2,5 cm
Sun visor: yes, detachable
Operating temperature: -20 to 70° C
1x 7" LCD monitor
1x Monitor mounting bracket
1x Cable with 4 inputs for cameras
1x Remote control
1x Set of screws
