Security set into car DOD RC500S with GPS and DUAL 1080P camera

SKU: 55-036 I have a question
Manufacturer DOD
Products availability pre-order
Delivery time 1 - 3 weeks.
Yes! We Ship To US
Price excl. VAT U$ 366.66
Price incl. VAT U$ 440.00
- +

Product description Security set into car DOD RC500S with GPS and DUAL 1080P camera

Security set into car DOD RC500S with GPS and DUAL 1080P camera, that has two lenses with FULL HD resolution in unrivaled quality with a recording rate of 30 fps. The DUAL camera senses in 1080P resolution and with an effective polarizing filter (eliminating light reflections) the set senses the scene before and after the vehicle. Image compression H.264, MOV file, a data stream approx. 15 Mbps for each channel. One minute at the resolution of 1080p 30fps video from one channel is approx. 110 MB.



Rc500s dual camera

The camera set has a wide-angle lens of up to 145° front camera and 140° rear camera allowing you to have a really wide-angle view around your car, approaching the fish eye parameters. The use of the rear camera is optional, the front camera can also be used separately. In term of purely optical parameters, the DOD RC500S is equivalent to the DOD LS500W (and vice versa). Also there is an option of 180° turn round of image for front and rear camera (camera can be mounted "down head").

The front camera is equipped with the brand-new SONY STARVIS (Starlight Visibility) IMX291 sensor, that offers revolutionary night mode even in complete darkness! Built-in super capacitor instead of Li-Ion battery - for even better resistance and lifetime of the camera.

Technologically, this is the "next generation" car camera - with the latest technologies (optics, microchips, functions) that the car market offers.

The flagship of DOD company - a new concept of SMART car camera

Certified camcorder for use throughout the EU (ie. in Austria, Germany and other member states). They meet the criteria of technical standards and can be used in the vehicle.


The DOD RC500S has an elegant and discreet, cylindrical shape with truly mini-sized dimensions that allow it to install the front camera close to the mirror at the top of the windscreen. Thanks to this position, it will not disrupt your view, and it is absolutely unobtrusive when viewed from the outside. The rear camera with a compact size of only 7,5 cm is attached with a 3M holder with adhesive tape. The cable connection between the cameras is approximately 5,5 m long. The DOD RC500S can be connected to a 12/24V power supply, so it is possible to use it exept the automobile  also for other vehicles, trucks or buses. The front camera is also easily attachable onto the car's windshield with a 3M adhesive holder that is easily attached to the camera. DOD also comes with a very useful accessory - an adjustable circular polarizing filter that effectively reduces reflected light.

Support for up to 128GB micro SD cards (about 18 hours of recording from both cameras - 9h for one channel)


Dual camera rc500s



The recording is recorded from both cameras and combined with a high ISO sensitivity of up to 12800 allowing you to monitor the surroundings of the car even in bad light conditions, this feature is a significant safety bonus when monitoring your car during your absence. This makes the new DOD RC500S a new leader in market of the safety, not only with the video recording of the ride but also with the monitoring of the car during your absence.

A great advantage is the improved new-generation parking mode system that will start recording 15 seconds before it detects movement. This will ensure that you have a record of what happened from the beginning to the end from both of the cameras in front and behind the vehicle. When you continue driving, the camera switches back to recording in the loop mode.

The leader on the market of car safety and monitoring

Parking mode DOD rc500s camera

The camcorder supports micro SD cards up to 128GB (standard cameras up to 32GB). In the event of an accident, a severe braking or a tilting of the car, the camera set has the G-sensor function, which protects the files against the impact. Also, in an emergency, users can manually protect an existing file by long pressing the "SOS" button. The FULL HD car camera set with advanced WDR 2.0 technology and WiFi connectivity is your reliable companion on the roads.

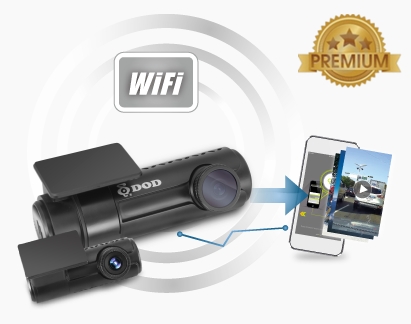

Dual RC500S car camera kit with FULL HD and WIFI support

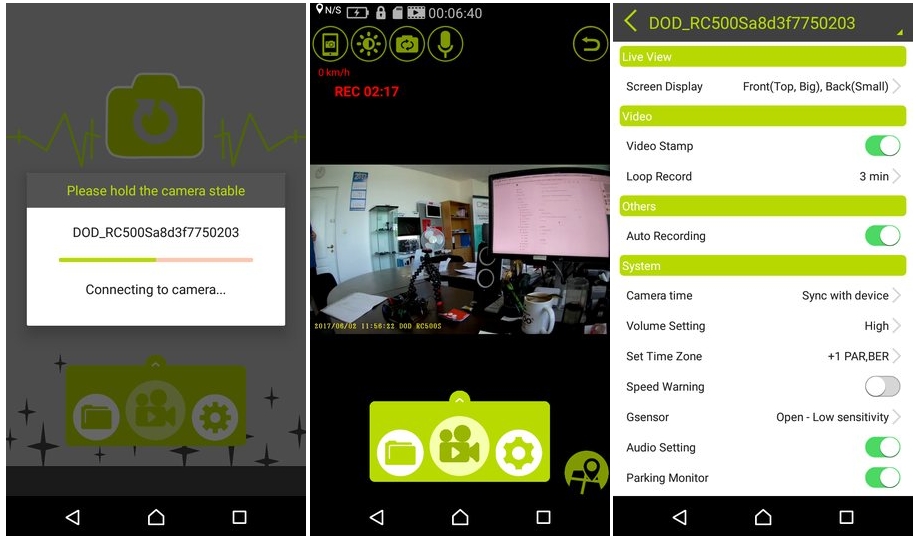

A smart DOD (Android / iOS) application for smartphones or tablets, where after pairing via WiFi you can play your videos of the ride, track your current position through google maps, or change your camera settings.

Wifi support app dod rc500s



Product features:
  • 1080p HD video recording
  • Wide viewing angle - 145° front camera, 140° rear camera
  • G-sensor protection of files
  • SOS function - Lock function
  • Parking surveillance
  • Advanced WDR 2.0 Technology
  • WiFi connection
  • Effective adjustable circular polarizing filter

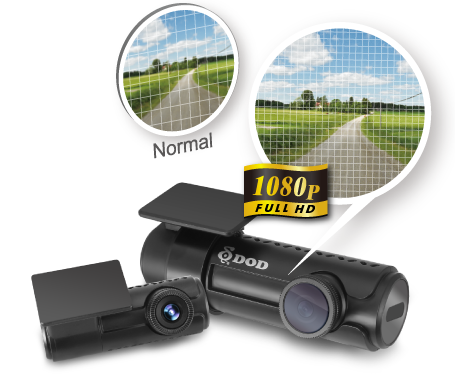

Dual FULL HD 1080p video recording
Front and rear view of your vehicle are recorded in 1080p quality in high FULL HD resolution. Moreover, the image is captured at the ultra-wide viewing angle of the 145° front camera, 140° rear view camera for total protection.

Rc500s full hd resolution

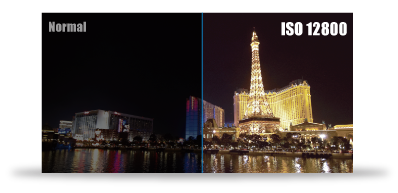

Extended ISO range up to 12800
The DOD RC500S has a new Sony STARVIS CMOS sensor with improved sensitivity not only in normal lighting but also in poor lighting conditions. Enhanced range increases the brightness of fast-moving objects at night. The camera can now capture even more details in ultra low light conditions.

Rc500s iso 12800

Advanced WDR 2.0 technology
Stunning video in any light and balanced exposure in every condition. Makes night shots brighter and reduces light exposure to achieve the most beautiful image.

Rc500s wdr technology

Large f/1.6 aperture, high performance in low light
Big aperture reflects the amount of light falling on the sensor when shooting. The larger is the aperture (tsmaller number f), the more light will be captured in the camera sensor. With the widest apperture, which is 66% larger than the competition on the market, DOD cameras produce the sharpest picture.

Rc500s front and rear aperture f/1.6

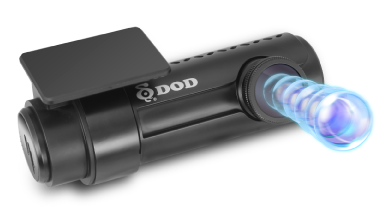

6G sharp glass lens
The 6-element sharp lens, made from six layers of glass, provides a stunning, clean and undistorted image

Rc500s 6g glass lens

Wide angle of view 145°
Image capturing at a wide viewing angle of 145° for optimal coverage and clarity. The front camera is equipped with an extremely wide-angle lens, that enhances the range of recording, because the panoramic view of the front of the vehicle captures all sides without distortion (so no distorted image).

Rc500s wide viewing angle

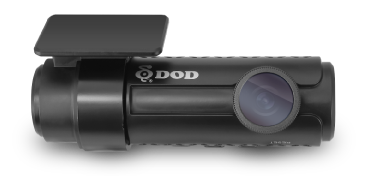

Adjustable circular polarizing filter - effectively reduces reflected light
The adjustable filter eliminates the dazzle of the windshield and at the same time increases the saturation. Reduces unwanted reflections and excessive exposure or polarizing effects to ensure the highest quality image and protect your lens.

Rc500s lens polarizing filter

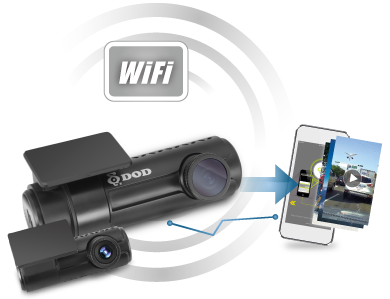

WiFi connection - remote viewing using free application
You do not have to wait anymore if you want to playback exciting moments. Just transfer or visualize files from the inserted memory card in the camera directly to your smartphone/tablet via DOD APP.

Rc500s wifi connection

Parking surveillance
You will be satisfied with this parking surveillance even when you park and leave the car. Improved parking mode, which automatically starts 10 minutes after leaving the vehicle. When you continue driving, the camera switches back to mode of recording mode in the loop. With the SONY STARVIS Sensor, you can also enjoy the revolutionary night vision for the front camera and even in complete darkness.

dod Rc500s parking surveillance

In the case of motion detection of front or rear camera, or at crash, it starts recording of video and locks the file. The camcorder starts recording for 15 seconds before the movement is detected or the impact, what ensures that you will have a record of what happened from the beginning to the end. The condition is that the camera must be powered via a car battery using a set of cables for permanent installation in the vehicle DOD DP4.

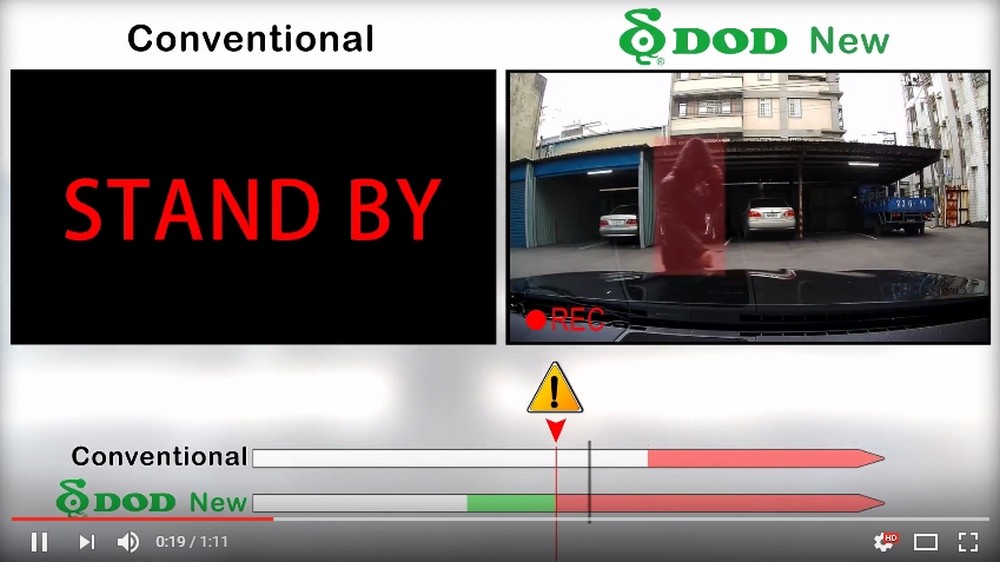

You can watch how the improved parking mode works right here in this video:

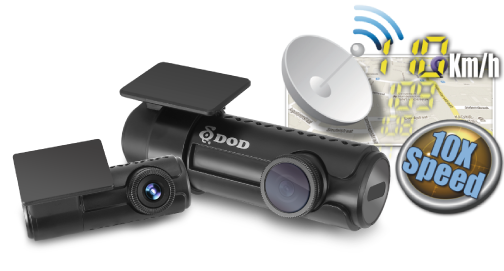

GPS processor with 10 Hz speed
Integrated with the fastest 10Hz speed GPS, logging more precise data of the vehicle location and speed. Allows you to record your route on a map while watching the videos in DOD player. It is currently the fastest GPS update used in camcorders.



Rc500s gps processor

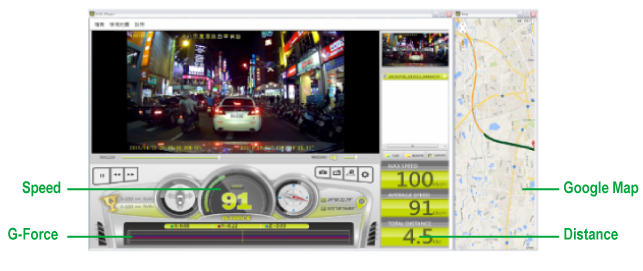

DOD GPS Player V2.0
The new version of DOD GPS Player 2.0 with improved user interface is even with better clarity. It displays FULL HD video recordings with real-time data like vehicle speed, gps coordinates, overload.The internet connection shows the current location of the vehicle on Google maps.

Rc500s dod player

Detection of speed ​​radar
The system reminds you that you are near the location with speed limit and where a radar can be placed, so you can slow down. Avoid traps and have always your drive under control.
* Currently, the system supports the following countries: USA, CA, UK, NO, PL, NL, BE, AU.

Synchronization of time and date
Automatic time calibration, independent of manual time adjustment. With a built-in 10x speed GPS processor, it can accurately calibrate local time and automatically store it in camera memory.

G-sensor protection against impact
In an accident, emergency braking, or tilting of a car, it will automatically protect all stored and current records. With this feature, files will not be deleted or overwritten, even when recording in a time loop.

Manual file lock - SOS protection
In case of an emergency, it allows users to protect an existing file by long pressing the "SOS" button, which keeps the file from the recording loop and protects against being overwritten by other files.

Automatic recording and shutdown
After the vehicle is started, the camera will automatically start recording. When you turn off the engine, the camera turns off automatically without pressing any button.

Loop recording - Cyclic recording
When the storage space on the inserted microSD card is full, it can automatically overwrite older files with new ones, so the files are constantly re-deleted.

Supports 128GB Micro SD cards
4x higher memory compatibility compared to older camera models, supports up to 128GB micro SD with over 18 hours of recording.



Product specifications:

Video resolution: front camera: 1920x1080 @ 30fps, rear 1920x1080 @ 30 fps
Sensor: SONY STARVIS CMOS sensor
Wide-angle front lens: 145°
Wide-angle rear lens: 140°
Front aperture: f/1,6
Rear aperture: f /1.6
ISO sensitivity: up to ISO 12800
Video format: MOV
Recording media: Micro SDHC/SDXC Class 10 (up to 128 GB)
Audio: microphone and mono speaker (included)
Battery: super capacitor
Input power: 5V 1,5A
Front camera dimensions: 122 (D) * 35,8 (W) * 60,6 (V) mm
Rear camera dimensions: 75,2 (D) * 26 (W) * 38,8 (V) mm
Front camera weight: 120g
Rear camera weight: 41 g
Operating temperature -20° C ~ 65° C, (-4° F ~ 149° F)

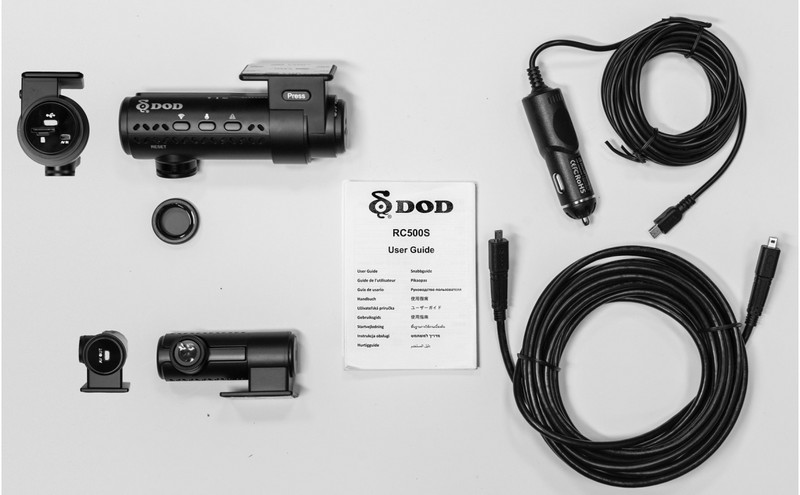

Supplied accessories:

1x Profi car camera DOD RC500S with adhesive holder
1x Rear camera with adhesive holder
1x CPL filter
1x Car charger 12-24V (4M Extension cable)
1x Interconnecting cable to rear camera (5M)
1x Set of adhesives for camera holder
1x Manua

Rc500s accessories
