Parking car set - AHD 7" LCD monitor + 2x camera with 18 IR LED
Product description Parking car set - AHD 7" LCD monitor + 2x camera with 18 IR LED
The AHD 7" LCD monitor + 2x 18 IR LED camera has a wide range of use because of monitor with 3x AHD inputs. Thanks to the AHD 1024x600p resolution of the monitor and camera, you will see all the details clearly and sharply. AHD camera will take care about quality image not only during the day, but with 18 IR LEDs you will see well at reversing even at night. The size of the LCD screen determines this set as an ideal helper at reversing.

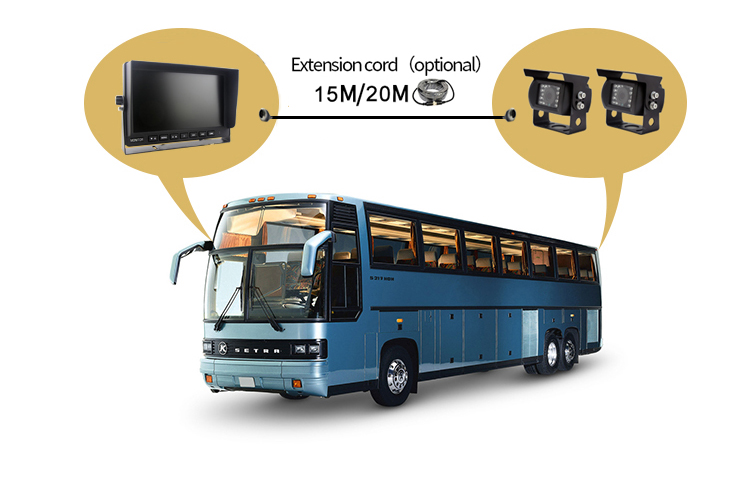

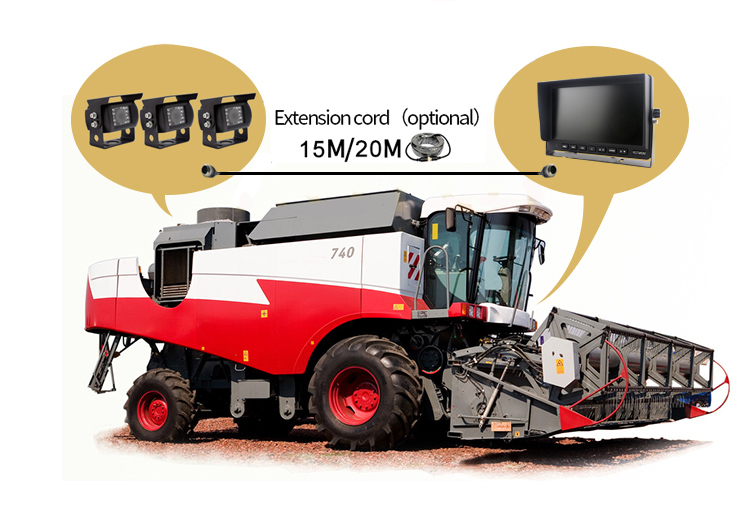

You have the option to connect up to 3 reversing cameras, what you will appreciate especially when installing on larger motor vehicles where you need more views from different angles. Thanks to this system, you will know exactly what happens behind or around the vehicle. This set includes a 7" LCD monitor + 2x IR night vision camera + 2x 20m cable to connect the camera with a monitor (one more camera can be connected). This set has a wide range of use. It is suitable for van, minibus, caravan, bus, truck, semi-trailers, agricultural or construction machinery and other vehicles. IP protection level of the camera is up to IP 66 what means it is waterproof, dust-proof and resistant to damage.
The first reversing set on the market with 1024x600p AHD resolution and 7" LCD monitor with the option to connect up to 3 AHD cameras with IR Night Vision.
The monitor includes an OSD menu that lets you adjust sharpness, brightness, contrast, and also allows you to rotate and reflection of image to realistically display the right and left side. The remote control makes it easier to operate the functions. Also includes a pair of built-in speakers and 1024x600px screen resolution of 16:9. Each camera has its own channel and the individual cameras are switched by determinated buttons directly on the monitor or via the remote control. The LCD monitor allows you to connect the required camera with the reversing lights using the switching circuit, allowing you to automatically switch to the selected camera that appears on the monitor when reversing. You can connect the LCD monitor to the cameras in different ways, for example to turn on at reversing or when the vehicle is started. The camera angle is adjustable. The monitor with the camera is equipped with an adjustable bracket that you can attach to the required place. Also included is a sun visor, which guarantees a clear picture and no glare.
In case you need to mount the monitor in a different way than with bracket (what is included in package), you can find in our offer another three more types of stands which allow you to attach your monitor for example onto a windscreen or where is needed. In case you need to put the camera on a trailer that is able to remove from the car or truck, you can buy in our e-shop a connecting cable of reversing camera for trailers and semi-trailers. This ensure easy disconnection of the reversing system and re-connection.
AHD 7" LCD monitor
Up to 3 cameras can be connected
Night vision within 10m
Viewing angle of the camera 150°
OSD menu with remote control
Display resolution 1024x600px
Technical specifications of the monitor:
7" LCD monitor
Aspect ratio: 16:9
Monitor resolution: 1024 x 600
Inputs: 3x AV
Adjustable: brightness, contrast, color
Power supply: DC 12V-24V
Power consumption: 5W
Working temperature: -10ºC to 60ºC
Storage temperature: -20ºC to 70ºC
Image sensor: MIX SONY225 CMOS 1/3 "
Resolution: HD 1024x600
Minimum lighting: 0.1 LUX
IR night vision: yes 18 IR LEDs
Night vision distance: 10 m
Viewing angle: 150 °
IP protection degree: IP 66 waterproof, dust-proof, damage-proof
Power consumption: 3W
Working temperature: -20 to 70 ° C
DC power supply: 12V-24V
1x 7" AHD LCD monitor
2x AHD reversing camera
2x Connecting cable 20m
1x Remote control
1x Sun visor
1x Bracket for mounting of monitor
2x Bracket for mounting of camera
3x Power cord
