Cloud Dual car camera GPS realtime monitoring system PROFIO X5
Product description Cloud Dual car camera GPS realtime monitoring system PROFIO X5
Cloud Dual car camera GPS realtime monitoring system PROFIO X5 - Android box with 4G/LTE/WiFi support for Live app/web for monitoring. The latest camera system from PROFIO Electronics X5 offers functions such as GPS Tracker, live GPS online tracking of the vehicle via an app on a phone or PC, as well as the displaying of a live image from the camera in real time. It is a recorder with the possibility of connecting 2 cameras (front, rear), which allows recording video from both cameras at the same time (support micro sd up to 128GB). The front camera has a resolution of FULL HD 1920x1080p. The cameras have minimal dimensions and do not limit the space in the vehicle. The device of the android box can be hidden, so it does not need to be placed on the dashboard and does not disturb the view from the vehicle.
You will also appreciate the support for creating a WiFi 4G hotspot via the inserted 4G SIM card. Images are stored on a supported micro SD memory card up to 128GB. This camera system has no buttons directly on the device, so it prevents any possible manipulation and attempts to edit/delete recordings. The system power supply is installed directly in the vehicle's fuse box. The location of the Android box is possible anywhere in the vehicle, in a place where the box will not be visible. It offers the possibility of locking the inserted SIM as well as the Micro SD card against unauthorized editing of the records. The camera can also record sound through a microphone located in the SOS button on the external cable.
Cloud/Android dual camera to your vehicle for real-time remote monitoring
You also have an external SOS button on the cable and in case of emergency you can press it for 3 seconds to activate the SOS alarm. Driver Behavior Analysis - the built-in 9-axis G sensor allows you to better perform driver behavior analysis. In the event of inappropriate driver behavior such as rapid acceleration, strong braking or high engine speed, the camcorder will alert you to this fact using the application and at the same time save the driving record to the SD card as well as to the Cloud server. Profio X5 is an ideal and sophisticated way to increase the safety of your car by constant monitoring, or a comprehensive solution for companies in terms of monitoring the movement of their fleet.

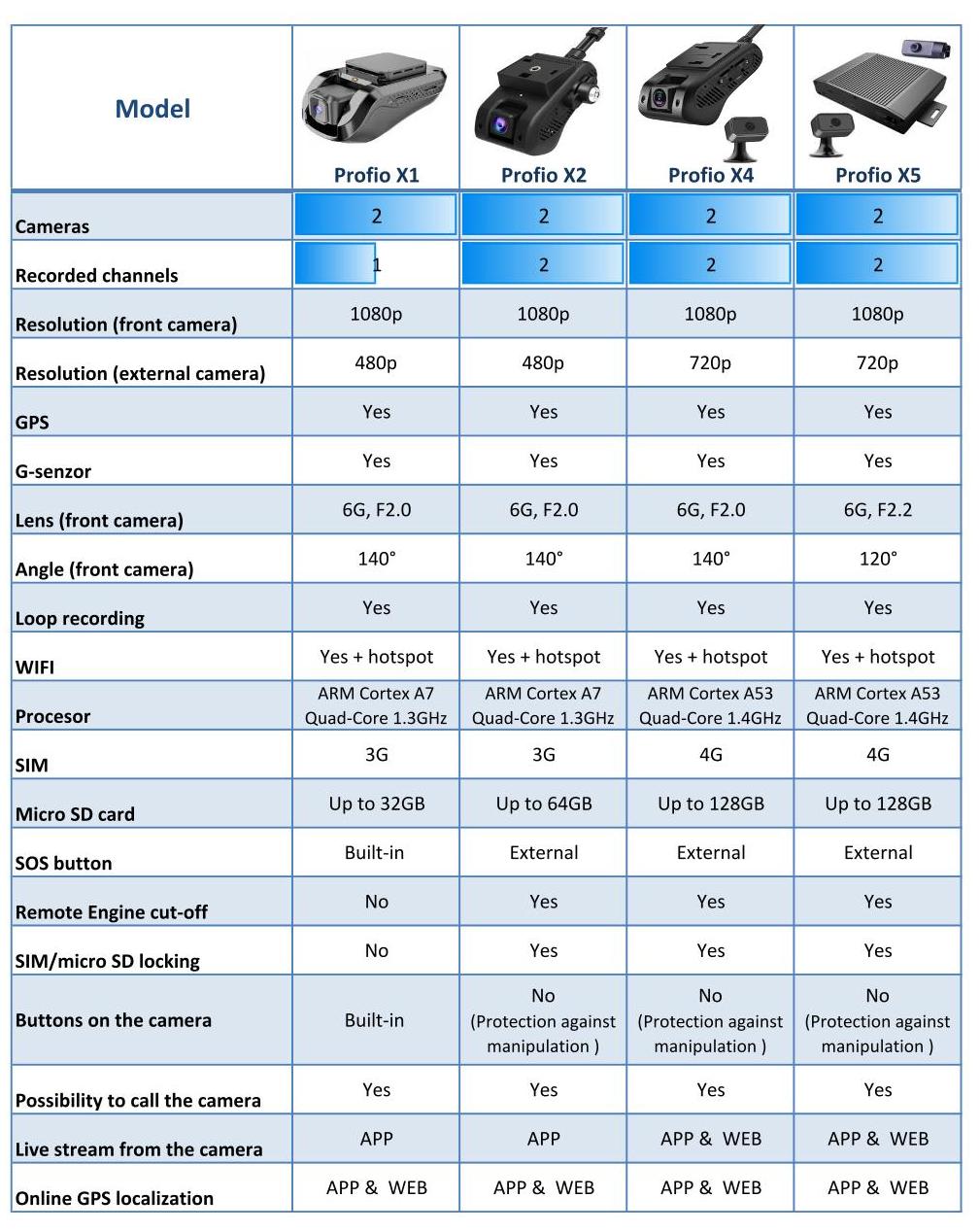

Comparison of individual models of PROFIO Cloud camera systems
Monitoring system with functions for vehicle protection and remote real-time monitoring

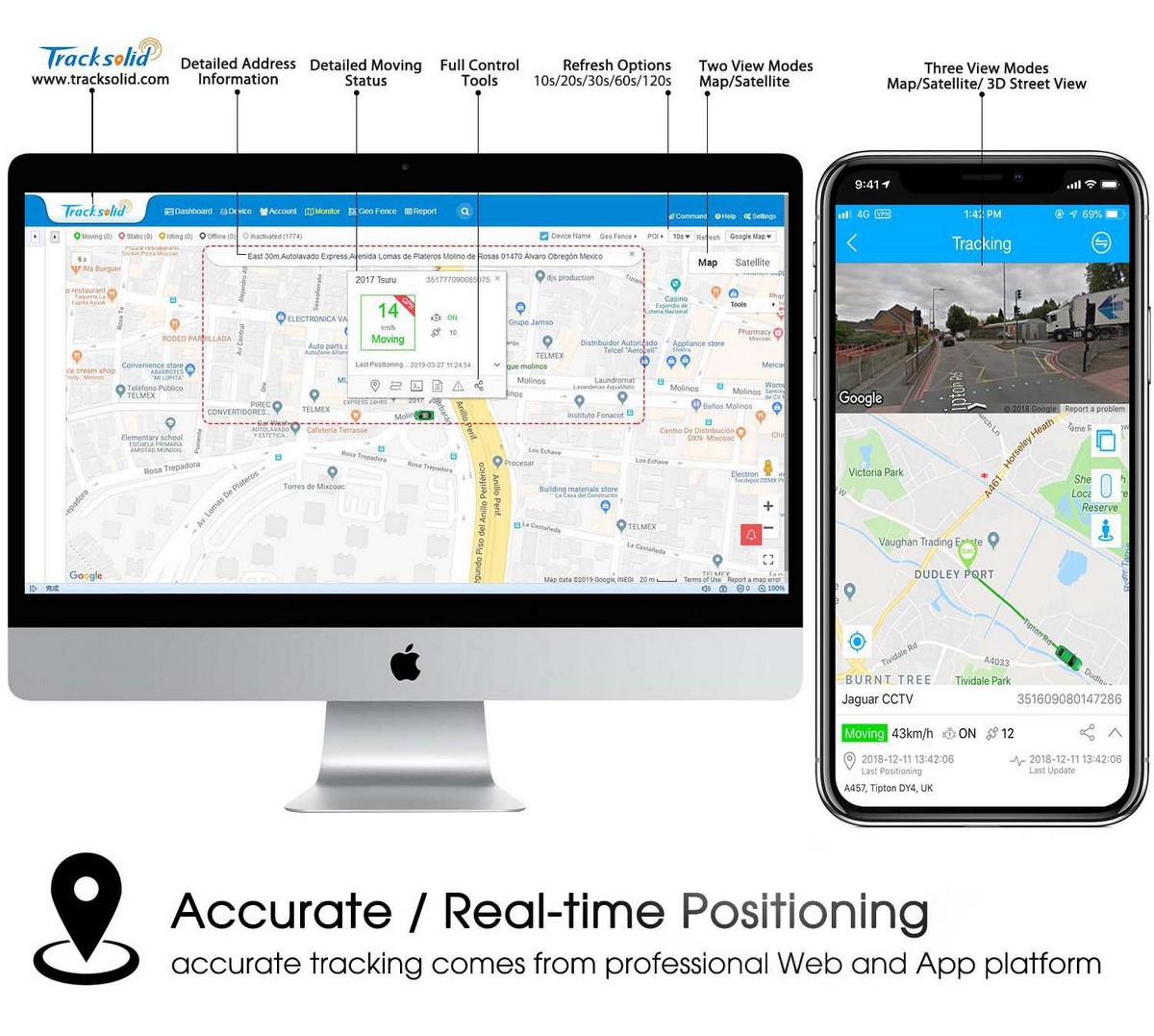

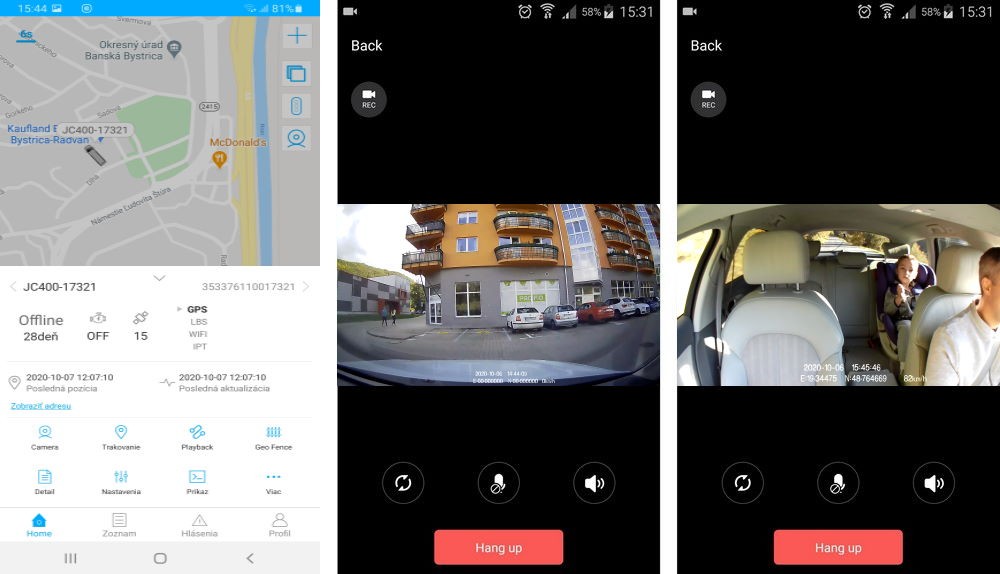

You can watch live video from the camera via a freely available mobile application (support for Android/iOS) called "Tracksolid ", or via the Web platform on a PC. With this app it is also possible to track online GPS position of the vehicle on the map in real time. The cabling set is designed for direct connection to the 12/24V fuse box, allowing the car camera to be powered permanently. An advantage is a dual camera system that provide the records from the front or rear cameras. You can connect to the vehicle via the mobile phone application as well as the PC platform or tablet. The map shows your current position with time, speed and GPS coordinates. The application also supports the live view function in real time.
You can connect to the vehicle via the application in the mobile phone as well as the WEB platform, on a PC or tablet.
The map shows your current position with time, speed and GPS coordinates. The application also supports the live view function in real time.

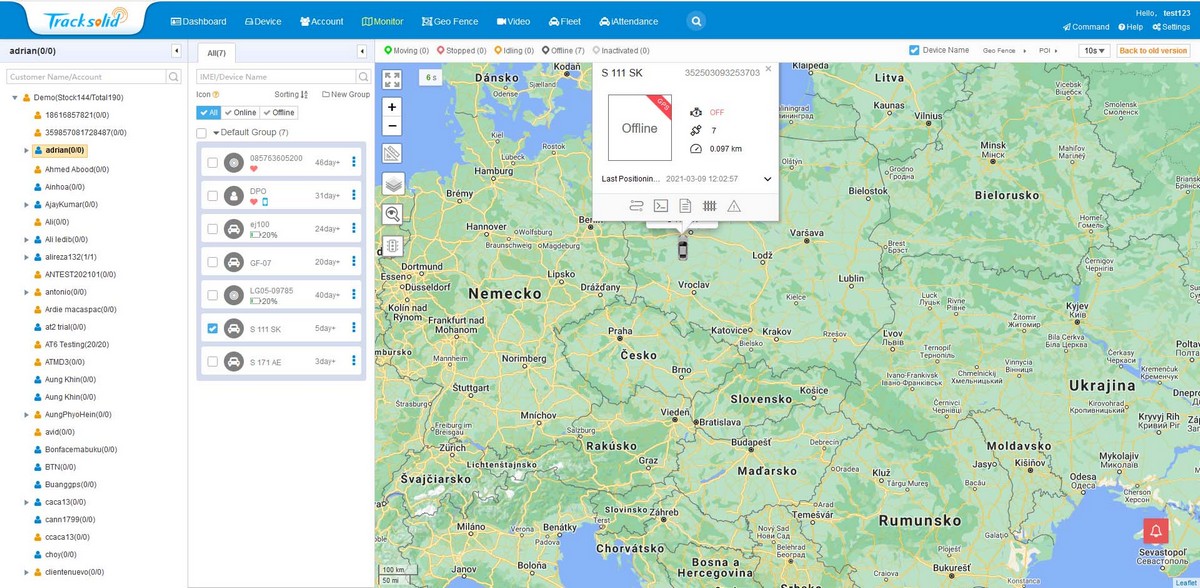

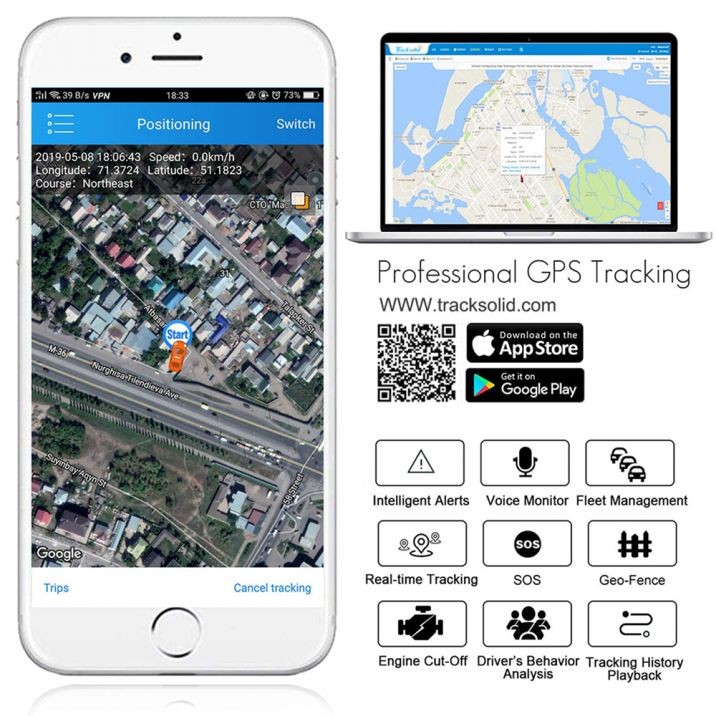

Enjoy GPS tracking directly through the web interface www.tracksolid.com
There is no need to install any software. Everything is available through the internet from a web browser on your desktop, laptop, tablet or mobile phone. The basic function is tracking a motor vehicle, whether a car or a truck. If the vehicle is online, you will see its current location on the map and you can continue to track its route. If it's offline, its last known location will be displayed. Each vehicle has its own unique ID number after registration, and with using this ID you can find the driving records in your driving history (7-day history). After you launch the archived ride, you can see the movement on the map. In detailed schedule, you can see at what time and at what address the exact vehicle was at that moment. The GEO FENCE feature allows you to send an email notification when leaving the marked space (if the vehicle driver accidentally leaves the planned route). To use the features you need to purchase a tracking license.

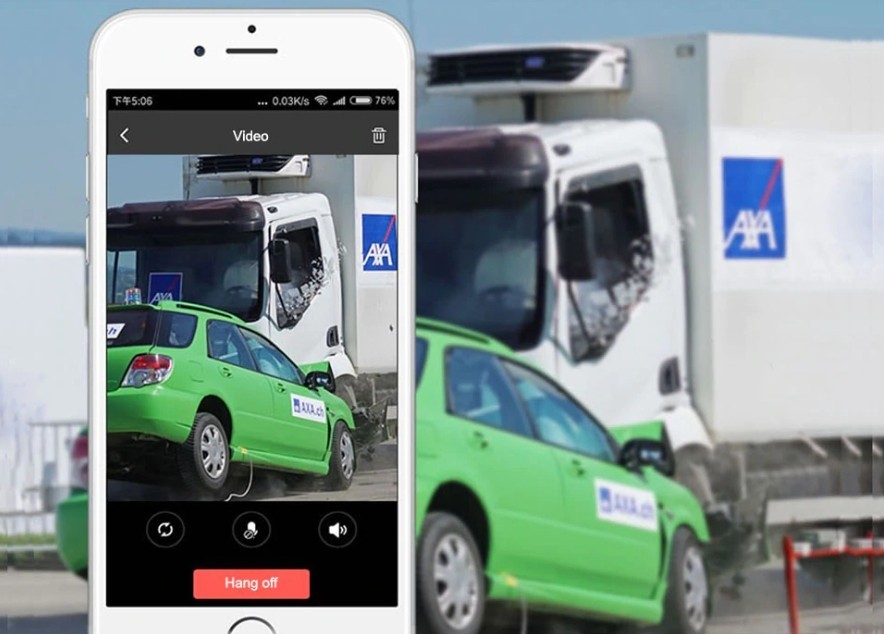

Video events to the cloud
In the event of a serious accident, collision, or abnormal behaviour, the video is automatically uploaded to the cloud. Thanks to the 4G connection, you can achieve higher data speeds and greater coverage, allowing you to react or act immediately.

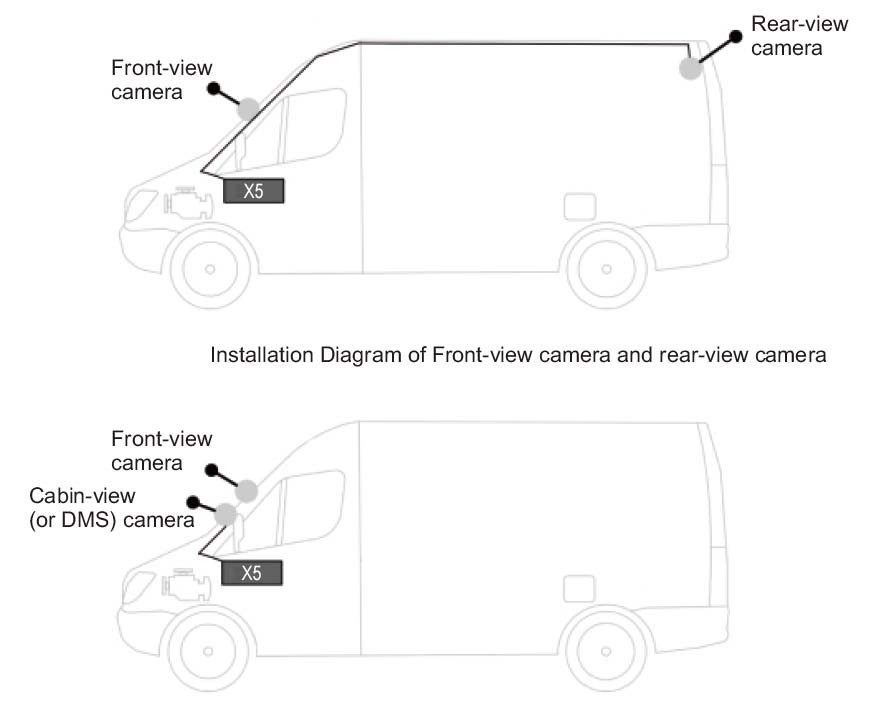

Different usage scenarios
Android BOX Profio X5 is a device that allows a wide variety of uses. The cameras can be placed anywhere in the vehicle.
DBA - Driving Behavior Analysis
Monitoring of data about driver behavior, including strong acceleration, heavy braking and extreme curves, will help reduce your fleet accidents and improve fuel economy.
This unique system allows remote control of playback of recordings from the camera. A vibration alarm alerts you to unwanted shocks (intrusion into a car, impact or crash).
WiFi HOTSPOT and 4G high speed data transfer
Live real time tracking

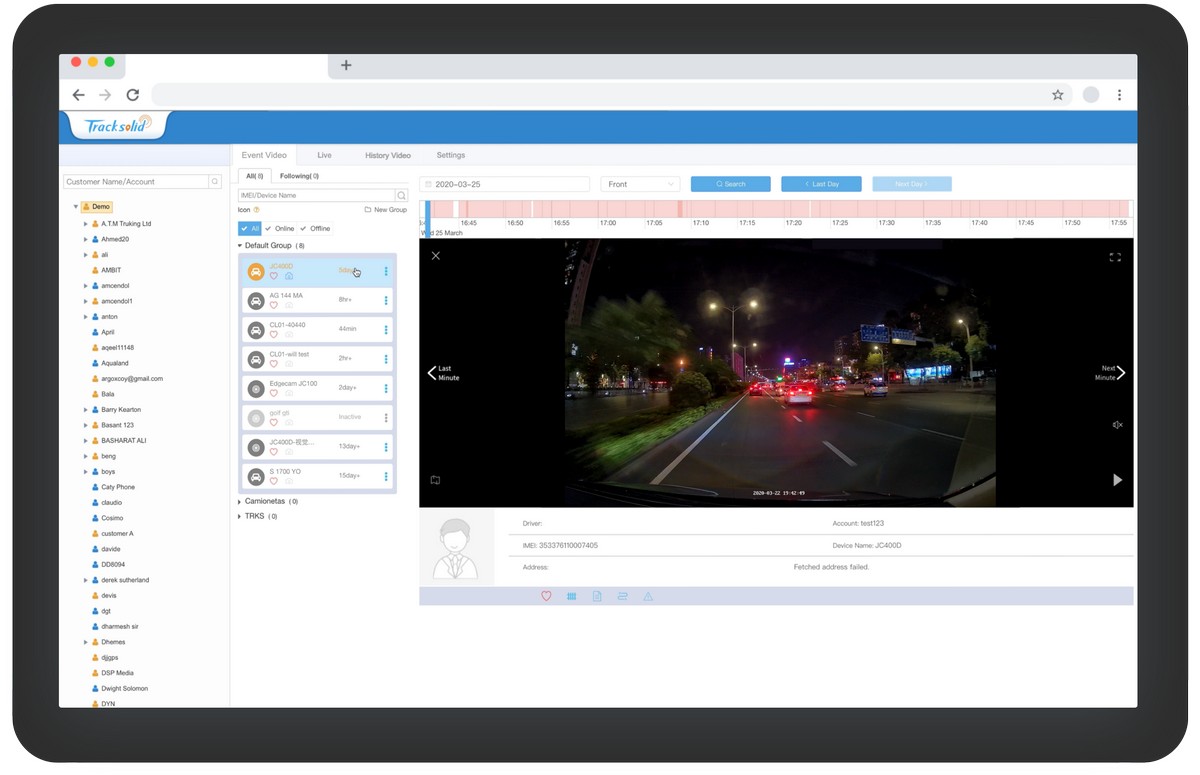

Watch images from both cameras anytime and anywhere using the web or the Tracksolid mobile application directly on your smartphone.
In the event of an emergency braking, at the collision or impact, the G-sensor evaluates the situation as a serious and starts recording automatically. It then locks the video file during the accident. This video can serve as an evidence in case of the accident.

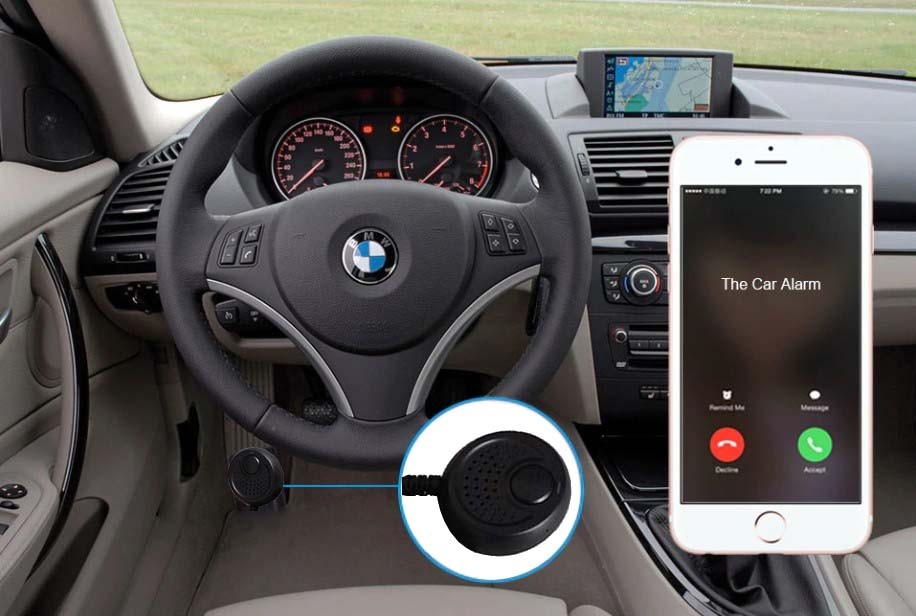

SOS emergency call
In an emergency, you can press the SOS button for 3 seconds to activate the SOS alarm. Then the camera sends SOS sms to the preset telephone numbers and starts the redialing cycle of preset numbers until answering the call.

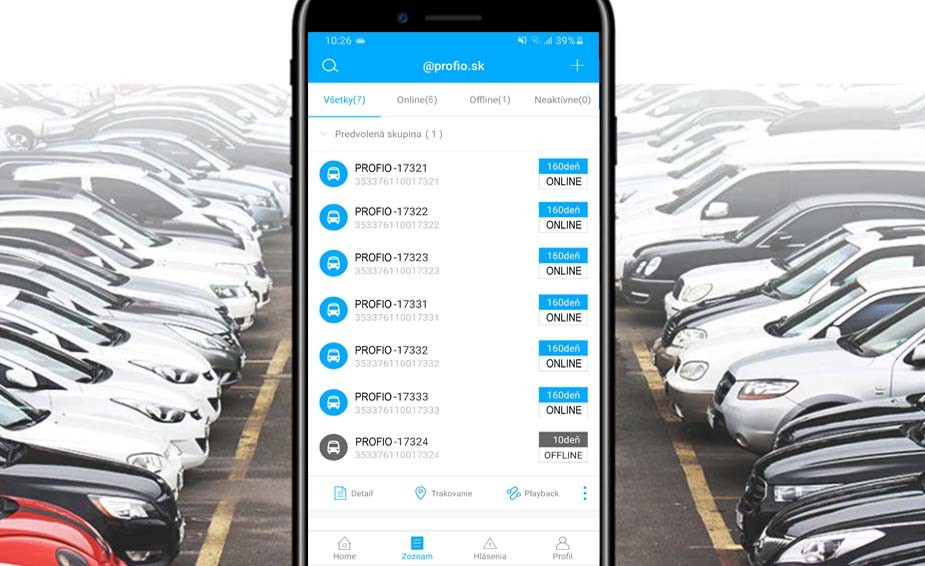

Vehicle fleet management
If you own a fleet of vehicles in your company, you can track them at the same time under one account. Using our Tracksolid platform, you can track a large number of devices in one account. It's convenient for you to watch your fleet all the time. The Profio X5 camera system will help you stay in touch with the drivers in your fleet by accurately monitoring of their performance. This unique system can help drivers improve their skills and make better decisions, as well as protect you, as a fleet owner, from false claims and unexplained damage to your property.
FULL HD 1080 video quality
The front camera of the Profio Tracking X5 system delivers perfect image capabilities. The shots will be captured with great clarity. Everything captured by this camcorder will be transferred to smooth and amazing videos. The time has come to enjoy sharp and beautiful shots..

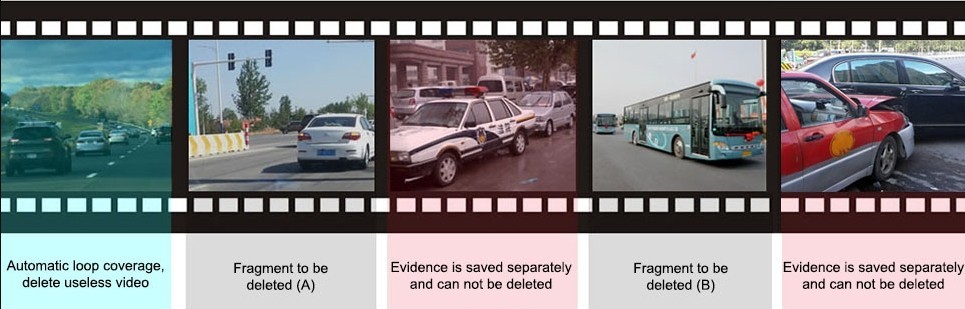

The videos will be stored on the micro SD card every 3 minutes (depending on the settings) If the SD card is full, older recordings will be automatically deleted and replaced with new ones.
Model: PROFIO X5
Processor: ARM Cortex A53 Quad-Core 1,4GHz
Operating system: Android 8.1 GO
GPS + BDS, GSM & WCDMA, 4G LTE,
Video resolution front camera: Full HD 1080p, 120° viewing angle, H.264 encoding
Cable length front camera: 2 meters
Video resolution rear camera: 720p, shooting angle 100°, H.264 encoding
Rear camera cable length: 2,45 meters
Wi-Fi: 802.11 b/g/n, 2.4 GHz frequency, hotspot
Remote monitoring: PC & App - PC software: www.tracksolid.com, APP for mobile: Tracksolid
G-Sensor: BMI160 (6-way)
Micro SD support: up to 128GB
Network support: GSM, WCDMA, LTE
Data interface: Micro USB 2.0, micro SIM
External battery: 600mAh
Power supply: 9V - 30V
Operating temperature -20° C ~ 70° C
DVR box: W / H / D 12 x 2.7 x 9.5 cm
Front camera: W / H / D 5,3 x 3,1 x 3,1 cm
Rear camera: W / H / D 7,2 x 3,2 x 2,5 cm

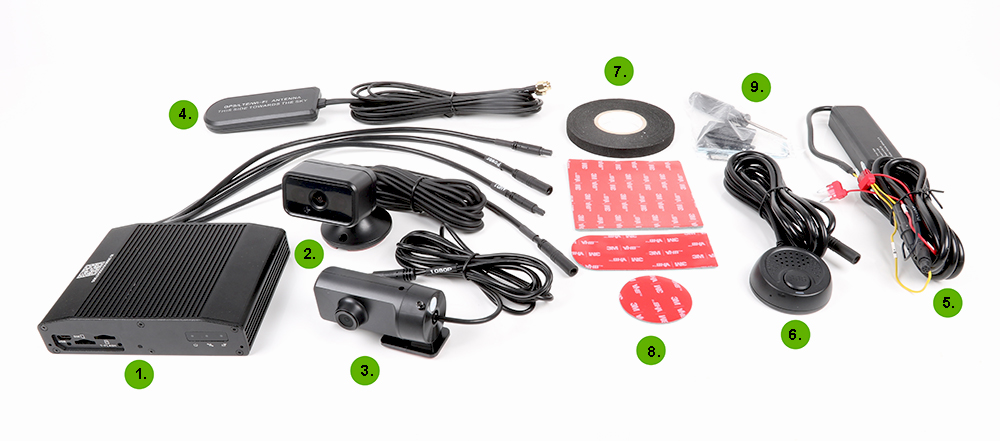

1. PROFIO X5 recorder + SIM card adapter
2. External Camera 1
3. External Camera 2
4. GPS/LTE/WIFI antenna
5. Power cabling + battery
6. SOS button
7. Tape for attachment and connection
8. Self-adhesive 3M tapes
9. Installation set and covers
|The Profio X5 camera system is a top product of the new PROFIO ELECTRONICS brand, which specializes in the development and production of innovative cameras that bring a new dimension to their use in everyday practice.|
