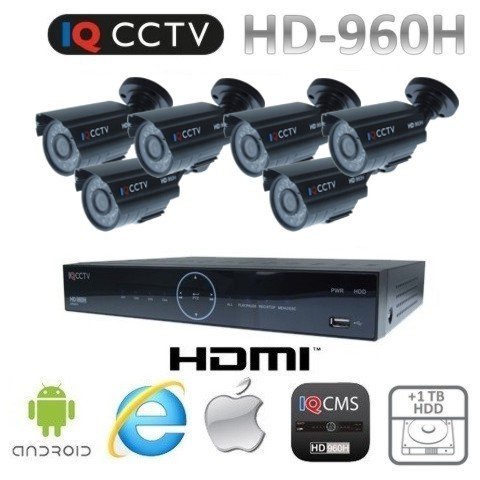

CCTV system 960H - 6 bullet cameras with 20m IR + DVR with 1TB

Security system 960H with 6 bullet camera with 20m IR DVR with 1TB HDD (6 full days of recording can be stored at 1TB hard drrive). The CCTV camera system is simple to use and includes six bullet cameras and DVR recorder with 1TB HDD that will record in HD 960H resolution in real time. DVR comes with HDMI, VGA and BNC output for easy connection to a TV or monitor. DVR recorder has an intuitive interface for easy configuration and setting.

The camera uses the latest 960H "higher resolution" of IQ CCTV technology, whar delivers the best possible quality using analog CCTV. 960H is the new standard for traditional CCTV systems, which offers 30% greater resolution compared with systems older than one year and 500% greater resolution than the 5-year systems.

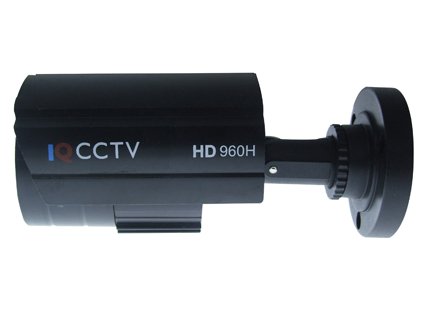

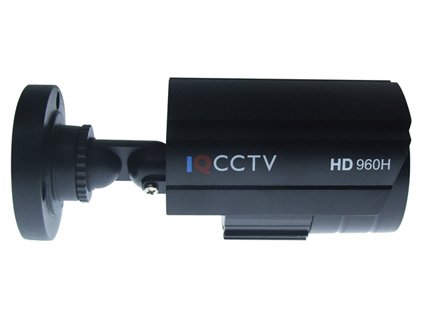

The camera also has IR night vision up to 20 meters (it is activated automatically upon detection of lower light)  and is waterproof (IP65). The cameras which are are part of system, are the Bullet cameras HD960H  IQC960V with mini sizes 59x55x148 mm and are intended for mounting on a wall or ceiling of interior,  and are very small and inconspicuous, what is ideal for use in various areas.

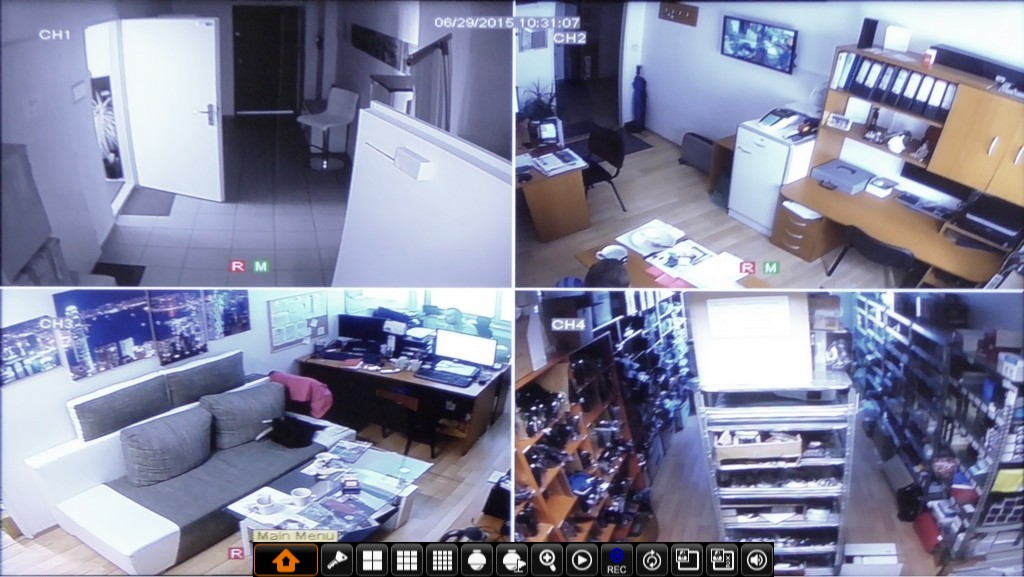

The recorder allows you in case you need to connect other two cameras. Easy installation of cameras "Plug and Play", just  connect one cable for power supply and video to one camera and you can record. Easy operation with simple on-screen menu that you can control with a USB mouse, touchpad and remote control via the network. Once the set is connected to a network (internet) you can easily view and control it from anywhere in the world using a Smartphone (Android), tablets, PC and Mac (iOS) computers. The application IQCMS for tablets and smartphones you can download for free in the app store and using the "Snap Shots" function you can set up e-mail alerts that are really useful.

Function of advanced Motion Detection will ensure the start of recording if is captured any movement in the monitored area. This is a digital motion detection (not the classical motion sensor) which is much more accurate and efficient. Using the supplied software you can set the days and hours when will be this function activated.

Excellent ratio price/performance. One of the best selling sets.

Features:

• ● Complete CCTV camera system
• ● Bullet camera in a durable metal design, weather resistant with HD 960H resolution, 20m IR night vision and 50° wide-angle lens
• ● HD DVR 960H recorder for 8 cameras with 1TB capacity of record (up to 40 days of recording with one camera) and remote access via Smartphone, tablet, PC or Mac
• ● 18 m cable for connecting (included)
• ● DVR is equipped with HDMI, VGA and BNC output for easy connection to compatible TV or monitor
• ● Designed for easy installation DIY

Camera:

• BrandIQCCTV
• Model numberIQC960B - K
• StyleBullet Camera
• WaterproofYes (IP65)
• Anti-vandalNo
• Mountingon wall or ceiling
• Dimensions (WHD in mm)59x55x148
• Weight (kg)0,26
• Sensor type1/3 "color CMOS
• DSP TypeDigital DSP IQ1
• DSP functionsautomatic electronic shutter, automatic control of noise, backlight compensation
• ResolutionHD960H
• Minimum illumination0.1 Lux (0 Lux IR on)
• Night Vision20m IR Night Vision
• Lens TypeFixed
• Lens Size4 mm
• Viewing angle50 °
• Operating voltage12V DC 380 mA
• Recommended power supply12V DC 500 mA
• Video OutputBNC socket
• Audio OutputNo
• Power supplyDC supply
• RS485 controlNo

DVR:

• BrandIQCCTV
• Model numberIQR960D8
• Video compressionH.264
• Video systemNTSC / PAL
• Video input/output8 CH inputs, 1 BNC, 1 VGA, 1 HDMI
• Spot outputNo
• Audio input/output2 CH inputs, 1 CH output (RCA)
• Display resolutionPAL: 960x576 @ 25fps, NTSC: 960x480 @ 30fps
• Display functionsSingle, Quad, SEQ
• Recording ResolutionPAL: D1 mode: 360x288 (CIF), 720x288 (HD1), 720x576 (D1), 960H mode: 480x288 (WCIF), 960x288 (WHD1), 960x576 (WD1) NTSC: D1 mode: 360x240 (CIF) 720x240 (HD1), 720x480 (D1), 960H mode: 480x240 (WCIF), 960x240 (WHD1), 960x480 (WD1)
• Recording speedPAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 fps
• Recording modeContinuous / manual / motion detection
• Playback channels1/4 Ch
• Frame ratePAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 fps
• DVD - RWNo
• Sensor & Alarm I/ONo
• IR Extender PortNo
• NetworkLAN, DHCP, Dynamic IP and DDNS
• HDD Interface1 SATA HDD up to 4TB
• Multiplex operationLive view, recording, playback, backup and network
• USB2 x USB (for mouse and backup/upgrade)
• PTZ ControlBuilt-in RS485, supports Pelco - P and Pelco - D
• Mobile SurveillanceIQCMS - Android and iOS
• CMS SoftwareCH 64, 256 pcs DVR, no limit to the user
• Web browserInternet Explorer, Safari, Chrome, Firefox
• VGA800 * 600, 1024 * 768, 1280 * 1024, 1440 * 900, 1920 * 1080
• HDMI 1080p
• Power supplyDC 12V 2000 mA
• FanNo
• On/Off SwitchNo
• Remote Control Yes
• Rack Mount Size (U)1
• Dimensions (WxHxD)301x46x210mm

By using the easy camera settings, the system enables very easy settings how camera should record, either when motion is detected or continuous recording. You can set up exactly the day and hour of recording of cameras. If you need during working hours continuous monitoring of area, just set the time, for example from 8:00 to 17:00 the cameras will record continuously and from 17:00 only when motion is detected (possible distortions of space), the sstem will inform you about that via e-mail alert. The advantage of the multiple camera system is, that you can adjust each camera separately, what gives you a great variability in the monitoring.

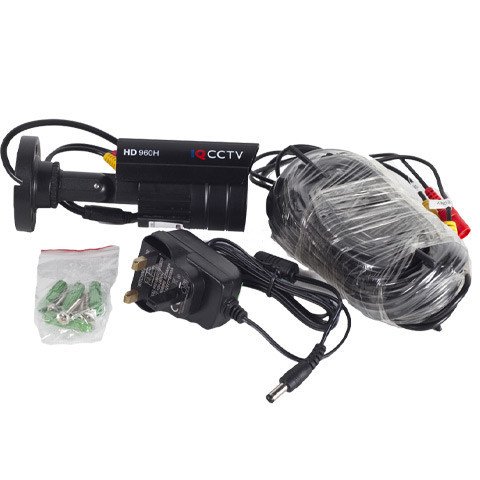

Contents:

6x CCTV cameras - IQC960B - K
1x DVR with 1TB HDD - IQR960D8
6x 18 m BNC cable with power
3x Power Adapter
1x USB mouse
1x Remote Control
6x Screw set
1x Manual
