Camera set 8x 720P bullet camera with 20m IR and DVR + 1TB HDD

SKU: 40-032 I have a question
Manufacturer HD CCTV
Products availability in stock
Products are in stock, ready to send.
Yes! We Ship To US
Price excl. VAT U$ 631.59
Price incl. VAT U$ 757.90 U$ 1,115.40
- +

Product description Camera set 8x 720P bullet camera with 20m IR and DVR + 1TB HDD

Cheapest camera kit includes DVR hybrid recorder AHD 720P/960H with 1TB HDD and 8x bullet camera 720P with 20m IR night vision. CCTV surveillance system is easy to use and  includes 8 AHD 720P cameras and hybrid DVR recorder AHD 960H/720P, which will record in HD 720P/960H in real time. For storing of the camera records you have available 1TB hard drive suited for 24-hour operation (a hard disk up to 4TB can be connected).

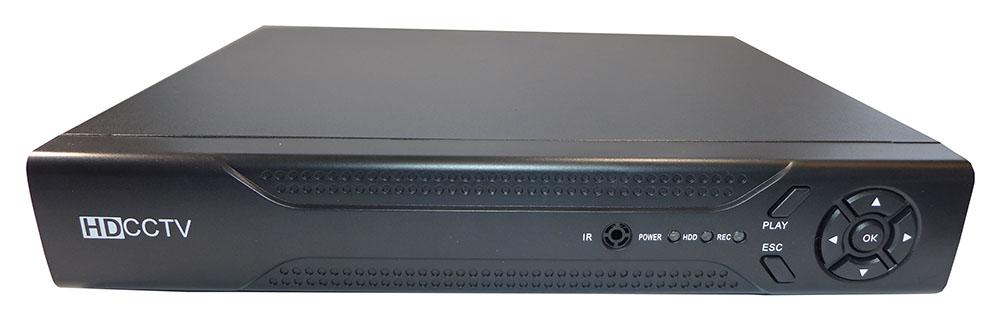

DVR recorder AHD (HD720p, 960H) - 8 channel, has a mobile, PC access (via Internet). The hybrid recorder (HD720P, 960H) offers the most modern digital recording via a standard cables. The unit can record the camera image either from 720P/960H cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. The recorder also has 4 audio inputs and 1 output if you wish to add a sound.

oahd 8 channel DVR scheme

DVR unit can record all 8 cameras simultaneously at 15 fps in 720P or at 25 fps in 960H resolution. DVR provides output to a monitor using VGA or HDMI. Easy installation of cameras "Plug and Play", just  connect one cable for power supply and video to one camera and you can record. Easy operation with simple on-screen menu that you can control with a USB mouse, touchpad and remote control via the network.

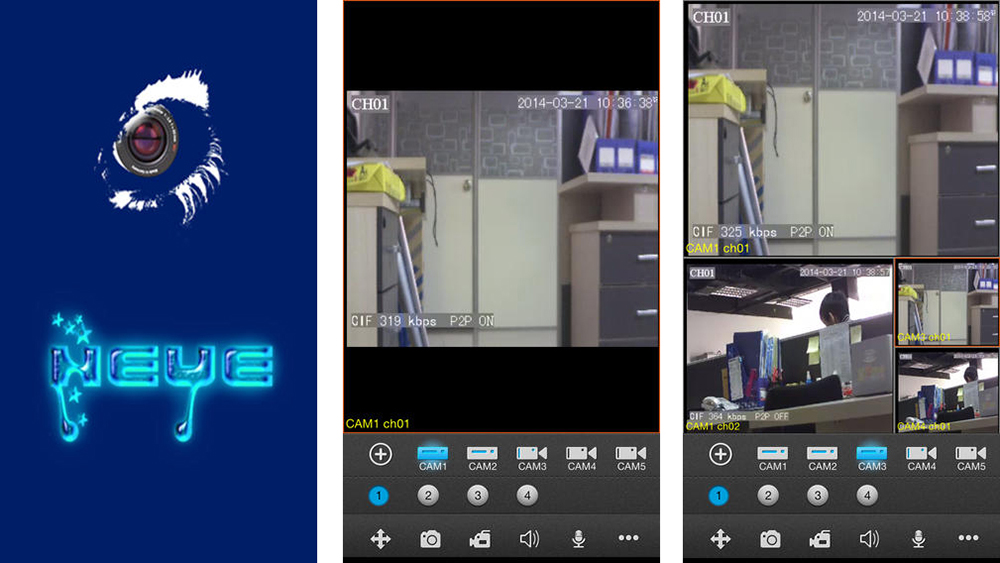

application-n-Eye-1 Camera


As soon as you connect the set to a network (the Internet), you can easily view and control from anywhere in the world using a Smartphone (Android), tablet, PC and Mac (iOS) computers. With application called N_EYE you can set up remote devices on smartphones or tablets, and you will get e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.

motion detection security cameras


AHD varifocal security camera HD720P + IR LED + antivandal, has built-in IR infrared night vision that shines in complete darkness up to 20 meters. The camera is equipped with a 3,6 mm with viewing  angle of 60 °, which captures the perfect image for your recording.

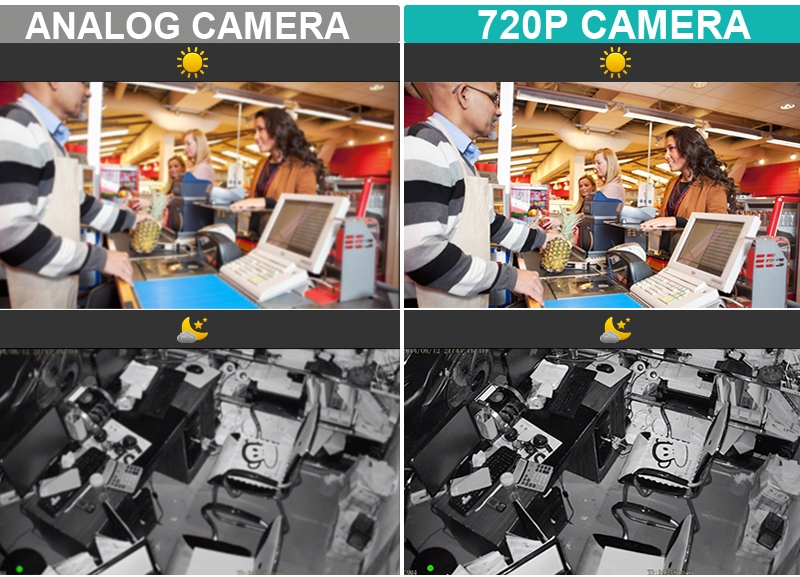

resolution analog security cameras and 720p

Security camera is suitable for indoor or outdoor use and comes in a proposed robust compact packaging. Can be installed on the wall using a console with a spheric joint with which the camera can be set to different angles. AHD technology allows the use of existing cabling used by standard CCTV cameras.

IR night vision

Our security cameras for sale are certified IP65 (what guarantees their resistance against to dust and waterproof).

IP65 resistant security cameras

OAHD cameras with HD 720p are designed to not contain unnecessary features which are not used in 90% of installations. The priority was to achieve quality images and parameters at the best price in the market. Our security cameras for sale are certified IP65 (what guarantees their resistance against to dust and waterproof).

Features:

plus Complete CCTV camera system
plus Cameras in a durable metal design (anti vandal) for indoor and outdoor use (IP65)
plus With 720P/960H resolution, 20m IR night vision with an angle of 60 °
plus Hybrid DVR recorder AHD 720P/960H supports remote access via Smartphone, tablet, PC or Mac
plus DVR is equipped with HDMI and VGA output for easy connection
plus Designed for easy installation DIY



Technical specifications DVR:

Model: OAHD-D8
Video compression: H.264
Video system: PAL / NTSC
Video input/output: 4 Ch. inputs, 1 VGA, 1 HDMI, 1 BNC
Spot output: No
Audio input/output: 4 Ch. inputs, 1 Ch. output (RCA)
Display resolution: PAL: 960x576 / 1280x720 @ 15fps
Display function: Single, Quad, SEQ
Recording resolution: PAL: 960x576 (960H), 1280x720 (720p)
Recording speed: PAL: 960H Mode: 25fps / 720p Mode: 15fps
Recording mode: Continuous / Manual / Motion Detection
Playback channels: 1/4 Ch.
DVD-RW: No
Sensor and Alarm I/O: No
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP and DDNS
HDD Interface: 1 SATA HDD up to 4TB
Multiplex operation: Live view, recording, playback, backup and network
USB: 2 x USB (for mouse and back-up/upgrade)
PTZ control: Yes
Mobile Surveillance: N_Eye - Android and iOS
CMS Software: Yes
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
HDMI 1080p
Power supply: DC 12V 2000 mA
Fan: No
On/Off Switch: No
Remote control: Yes
Dimensions (WxHxD): 255x42x220mm

AHD DVR 8 input

oahd / DVR 8 pin specifications


The camera parameters:

Model: OAHD-B
Type: Security camera with spheric joint
Resolution: 720P
Sensor type: 1/4 "CMOS Color
Lens Type: Fixed
Lens Size: 3,6 mm
Angle: 60 °
DSP Type: HDCCTV DSP
Minimum illumination: 0.1 Lux (0 Lux IR On)
DSP Function: Backlight compensation
Night Vision: 20m IR Night Vision
Operating voltage: 12V DC
Weather-resistant: Yes (IP65)
Resistant to damage (anti vandal): yes
The mounting method: wall or ceiling
Dimensions (WHD in mm): 59x59x163
Weight (kg): 0,28

Security Camera OAHD-CCB-6

AHD Camera Specification 00033


Contents:

8x Camera OAHD-B
8x 20 m cable for video/audio/power
8x Installation material (screws, dowels)
2x Power adapter of camera 12V 1200 mA
2x Splitter for 4 cameras

1x DVR OAHD-D8
1x 1TB HDD
1x Power Adapter DVR
1x USB mouse
1x Remote Control
1x Installation CD
1x Manual

If you are interested in an individual solution of camera system, the selection of cameras and DVR respectively NVR and other accessories according to your needs, please contact us by email at: [email protected]


Why to buy security cameras through our e-shop?

We are the official distributor of leading European brands of IQ CCTV and X-VISION and seller of safety technology with years of experience. Our requirements regarding the processing and improving of products we consult directly with the producer. Each product included in the sale will pass the entry quality control and only after that is ranked to our offer.

Our tests show that our sold technique is more efficientmore reliable and has a longer life compared to competitive products. In case of unexpected technical problems, we try to solve the situation urgently towards customer satisfaction. Of course we provide a warranty of 24 months on goods and professional advising.
