AHD professional DVR 1080P/960H/720P - 8 channels

Product description AHD professional DVR 1080P/960H/720P - 8 channels

AHD professional DVR 1080P / 960H / 720P from manufacturer XVISION - 8 channels, has a mobile PC access (via internet). This 8 channel hybrid DVR recorder (HD1080p, HD720p, 960H) offers the most modern digital recording via a standard cables. The recorder can record camera image either from 1080p / 720p / 960H AHD cameras, or from conventional analog cameras and automatically captures it in the same format as the camera. DVR unit can record all 8 cameras simultaneously 25fps at Full HD1080p, or 25fps at 720p or 960H resolution.

DVR provides Full HD 1080p output to a monitor using VGA or HDMI. The recorder can connect 8 cameras. Easy installation of cameras "Plug and Play", just  connect one cable for power supply and video to  one camera and you can record. Easy operation with simple on-screen menu that you can control with a USB mouse, touchpad and remote control via the network.

As soon as you connect the set to a network (the Internet), you can easily view and control from anywhere in the world using a smartphone (Android), tablet, PC and Mac (iOS) computers. The DVR can be connected to hard drive up to 6 TB and it also has 8 audio inputs and 1 output if you wish to add a sound.

Application "XR 960 CMS" for tablets and smartphones you can download for free in the app store and you can set up e-mail alerts that are really useful. You will certainly appreciate alerts when there is some disruption of area monitored by security cameras.

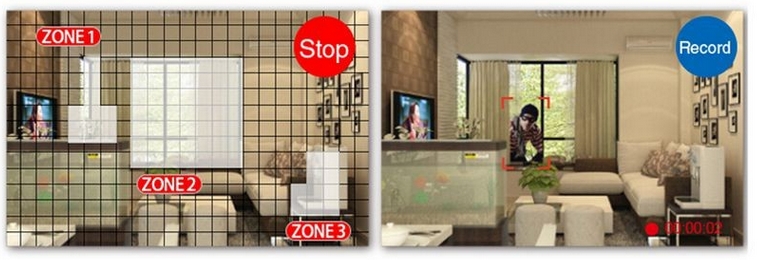

Function of advanced Motion Detection will ensure the start of recording if is captured any movement in the monitored area. This is a digital motion detection (not the classical motion sensor) which is much more accurate and efficient. Using the supplied software you can set the days and hours when will be this function activated.

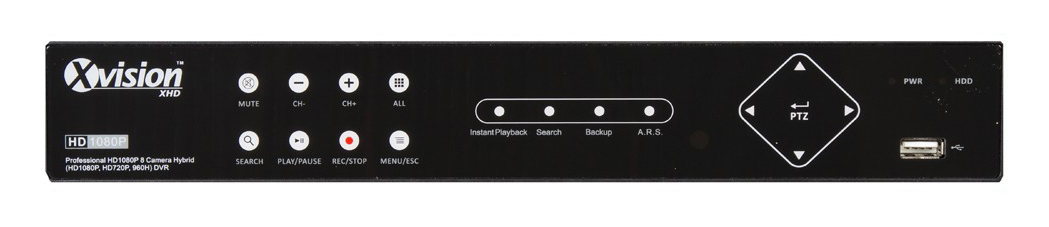

For easy operation and setup, the DVR is equipped with On Screen Display (GUI) and can be controlled using the new function of touchpad or mouse (both are supplied as standard). By using the easy camera settings, the system enables very easy settings how camera should record, either when motion is detected or continuous recording. You can set up exactly the day and hour of recording of cameras. If you need during working hours continuous monitoring of area, just set the time, for example from 8:00 to 17:00 the cameras will record continuously and from 17:00 only when motion is detected (possible distortions of space), the sstem will inform you about that via e-mail alert. The advantage of the multiple camera system is, that you can adjust each camera separately, what gives you a great variability in the monitoring.

Features:

Max. recording resolution: 25fps at 1080p; 25fps at 720p/960H
The possibility to connect one hard disk up to 6 TB (not included)
Ethernet - 1 x RJ45 port (10/100 m)
8 channels AHD/960H camera inputs (BNC)
8 channel audio inputs/1 output
Backup USB/Internet
P2P remote access via Smartphone, tablet, PC and Mac



Technical specifications:

Model: XHR1080D8
Video compression: H.264
Video system: PAL / NTSC

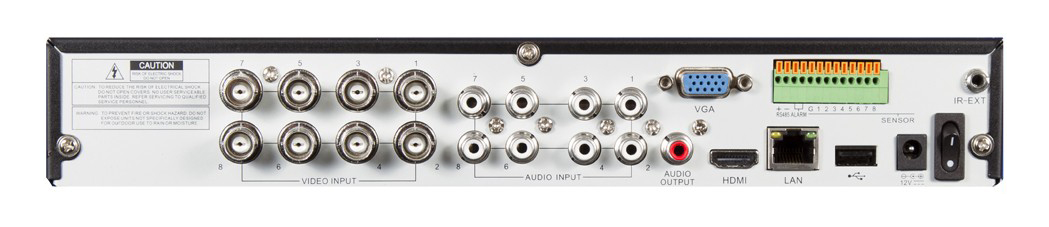

Video input/output: 8 Ch. inputs, 1 VGA, 1 HDMI
Spot output: No
Audio input/output: 1 Ch. inputs, 1 Ch. output (RCA)
Display resolution: PAL: 960x576 / 1280x720 / 1920x1080 @ 25fps
Display function: Single, Quad, SEQ
Recording resolution: PAL: 960x576 (960H), 1280x720 (720p), 1920x1080 (1080p)
Recording speed: PAL: 960H Mode / 720P mode: 25fps 1080p 25fps
Recording mode: Continuous / Manual / Motion Detection
Playback channel 1/8 Ch.
Frame rate: PAL: 960H Mode / 720P mode: 25fps 1080p 25fps
DVD-RW: Yes
Sensor and Alarm I/O: 8/1
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP and DDNS
HDD Interface: 1 SATA HDD up to 6 TB
Multiplex operation: Live view, recording, playback, backup and network
USB: 2 x USB (for mouse and backup/upgrade)
PTZ control: Yes
Mobile surveillance: XIQ CMS - Android and iOS
CMS Software: Yes
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080
HDMI 1080P
Power supply: 12V DC
Fan: Yes
On/Off Switch: No
Remote control: Yes
Dimensions (WxHxD): 300x53x227

Contents:

1x DVR - XHR1080D8
1x Power Adapter
1x USB mouse
1x Remote Control
1x Manual
1x Installation CD
